Shut-off valve
·
ZZF-5

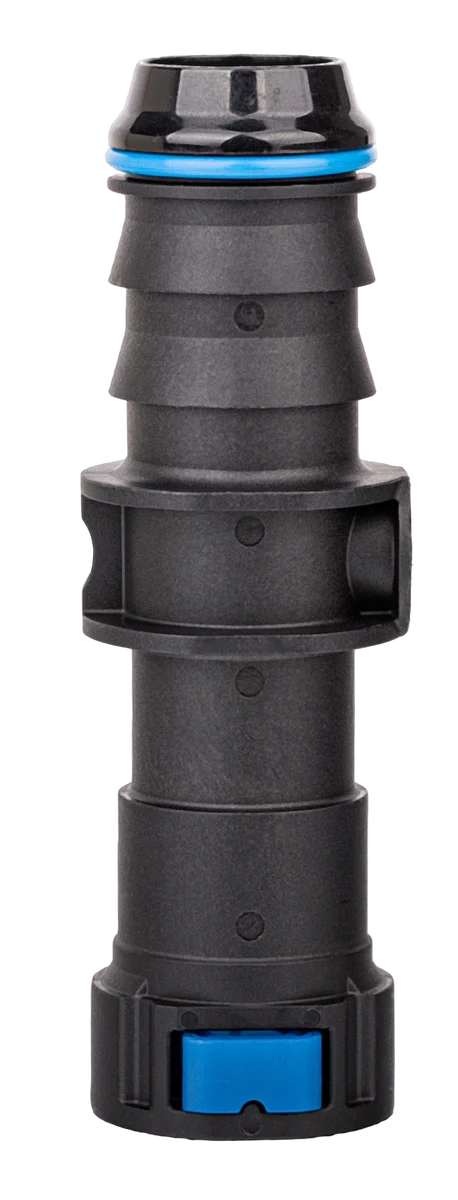

SAE 15.82 Shut-off Valve - 0° - Ø25X2mm
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length104.3 mm
StandardSAE
FamilyShut-off valve
CategorySAE 15.82 Shut-off Valve
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.74 mm
Max.15.9 mm
Male 2/2
Fir-tree
Inner Ø18.5 mm
Outer Ø26.3 mm
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.9 mm
Tube max.21.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
