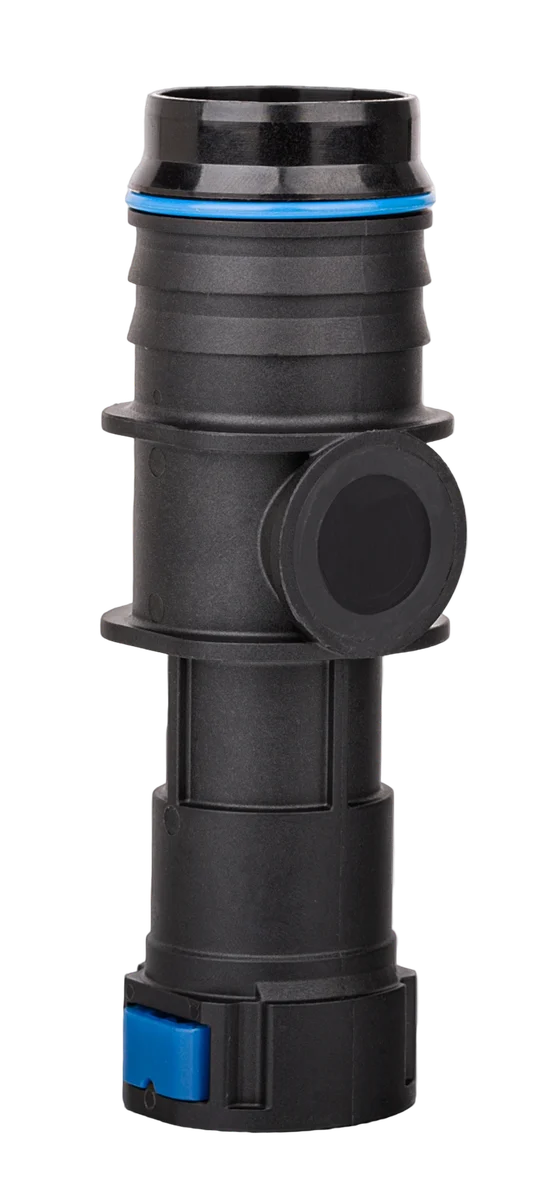

Shut-off valve
·
ZZF-13

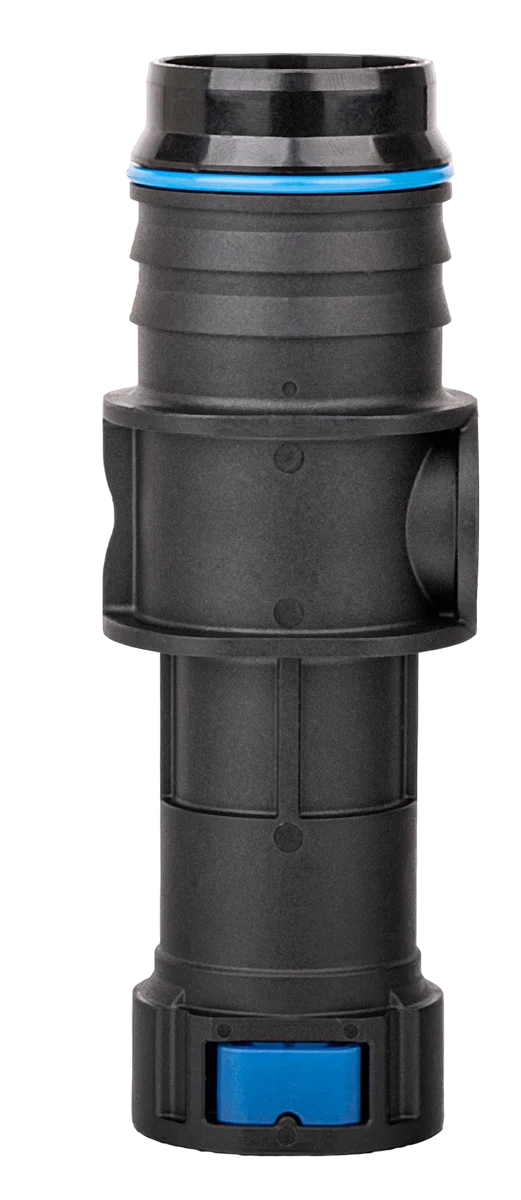

SAE 15.82 Shut-off Valve - 0° - Ø28X1.5mm
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length103 mm
StandardSAE
FamilyShut-off valve
CategorySAE 15.82 Shut-off Valve
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.74 mm
Max.15.9 mm
Male 2/2
Fir-tree
Inner Ø24.8 mm
Outer Ø30.65 mm
Fitting materialPlastic pipe
Fitting dim.25 mm
Tube min.24.9 mm
Tube max.25.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
