Shut-off valve
·
ZZF-12

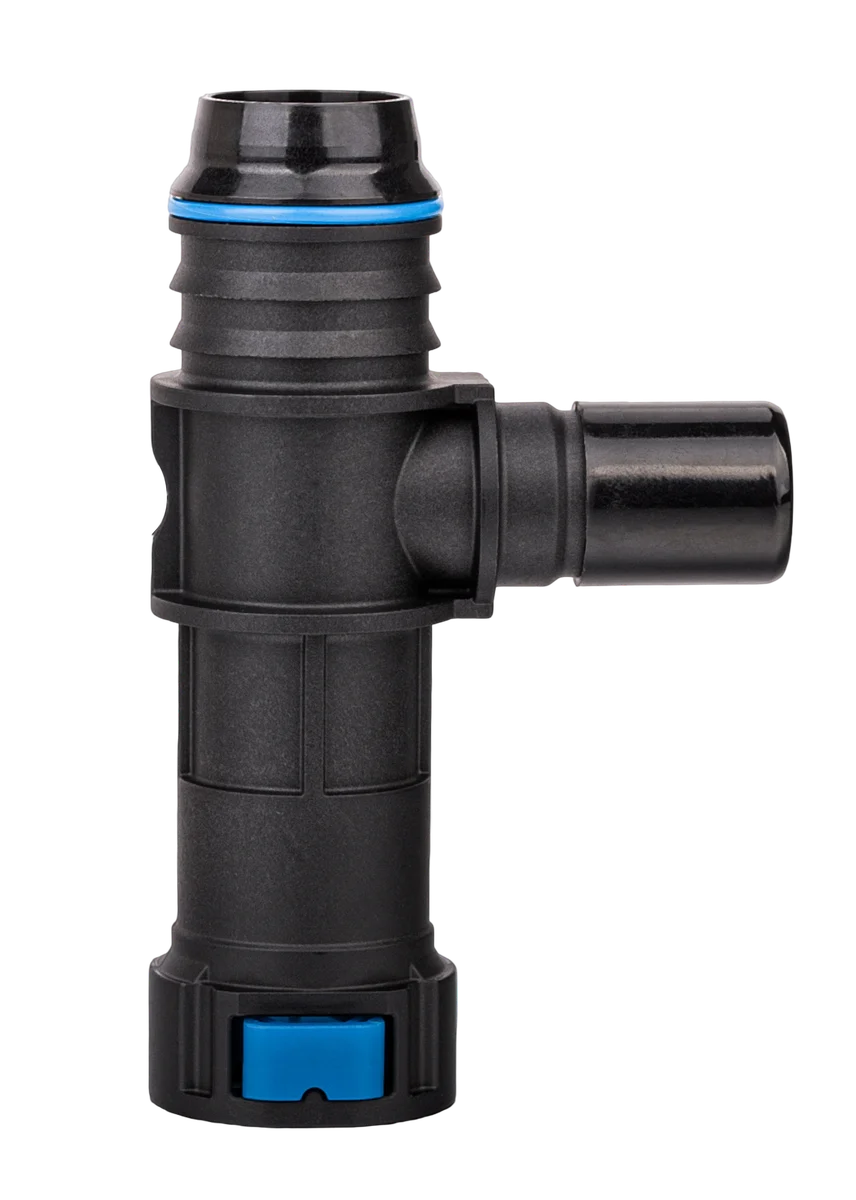

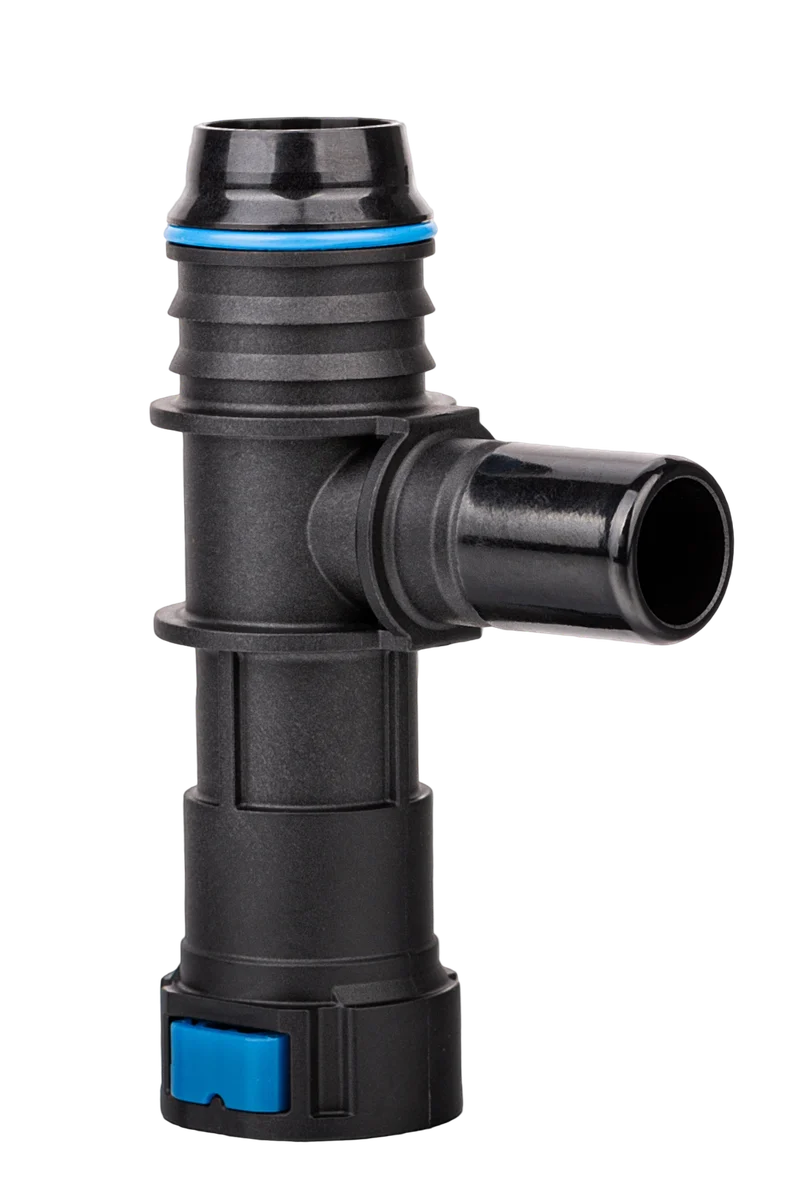

SAE 15.82 Shut-off Valve - 3 WAY - Ø24X1.5mm - CQC18
— Specifications
Geometry3 WAY T Shape
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length98.3 mm
StandardSAE
FamilyShut-off valve
CategorySAE 15.82 Shut-off Valve
— Interfaces · 3
Female 1/3
Quick Coupling Connector
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.74 mm
Max.15.9 mm
Male 2/3
Fir-tree
Inner Ø18.5 mm
Outer Ø26.3 mm
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.9 mm
Tube max.21.1 mm
Male 3/3
SAE
Inner Ø14 mm
Outer Ø18 mm
StandardCQC
Fitting dim.18 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
