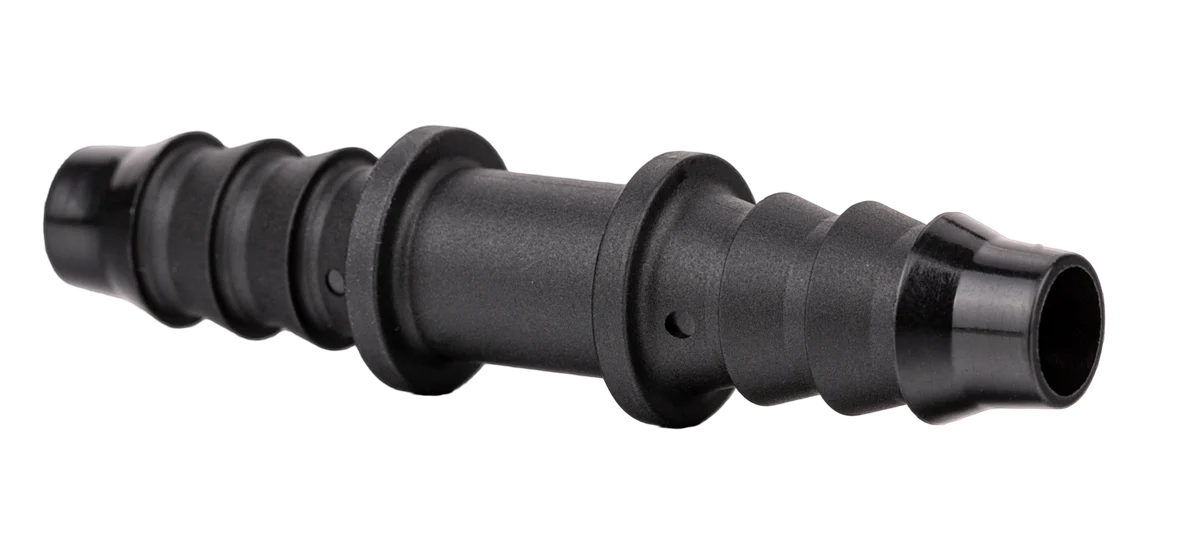

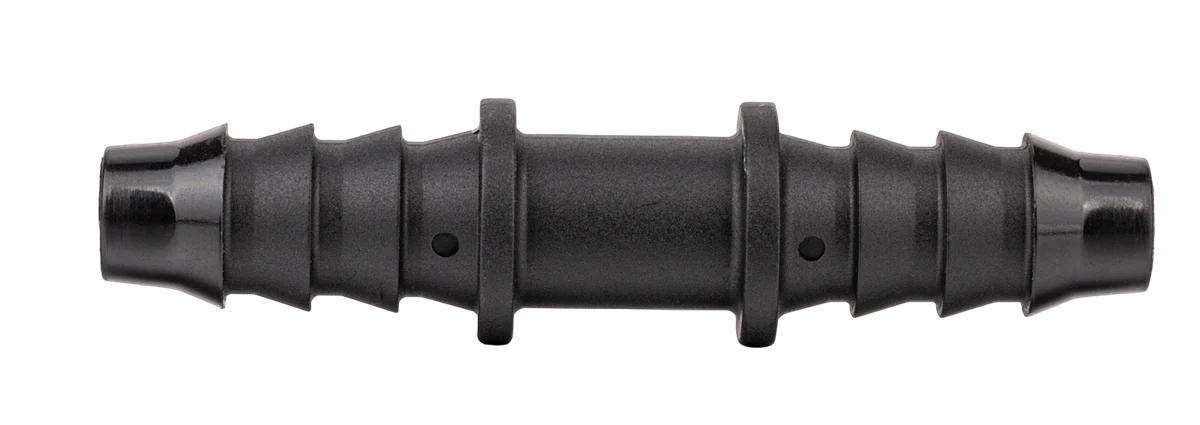

ADAPTER - 0° - 2X Ø10X1mm - FUEL (LIQUID)

Adapter · Z7

ADAPTER - 0° - 2X Ø10X1mm - FUEL (LIQUID)

— Specifications

GeometryStraight

Working temp.-30 / 120 °C

Pressure5–7 bar

Total length60.2 mm

StandardAdaptor

FamilyAdapter

CategoryAdapter

ask our engineers back to catalogue

— Interfaces · 2

Male 1/2 Fir-tree

Inner Ø6.4 mm

Outer Ø10.9 mm

StandardAdaptor

Fitting materialPlastic pipe

Fitting dim.8 mm

Tube min.10 mm

Tube max.8.3 mm

Male 2/2 Fir-tree

Inner Ø6.4 mm

Outer Ø10.9 mm

StandardAdaptor

Fitting materialPlastic pipe

Fitting dim.8 mm

Tube min.10 mm

Tube max.8.3 mm

— Solutions · Applications

No applications listed
