Adapter
·
Z43

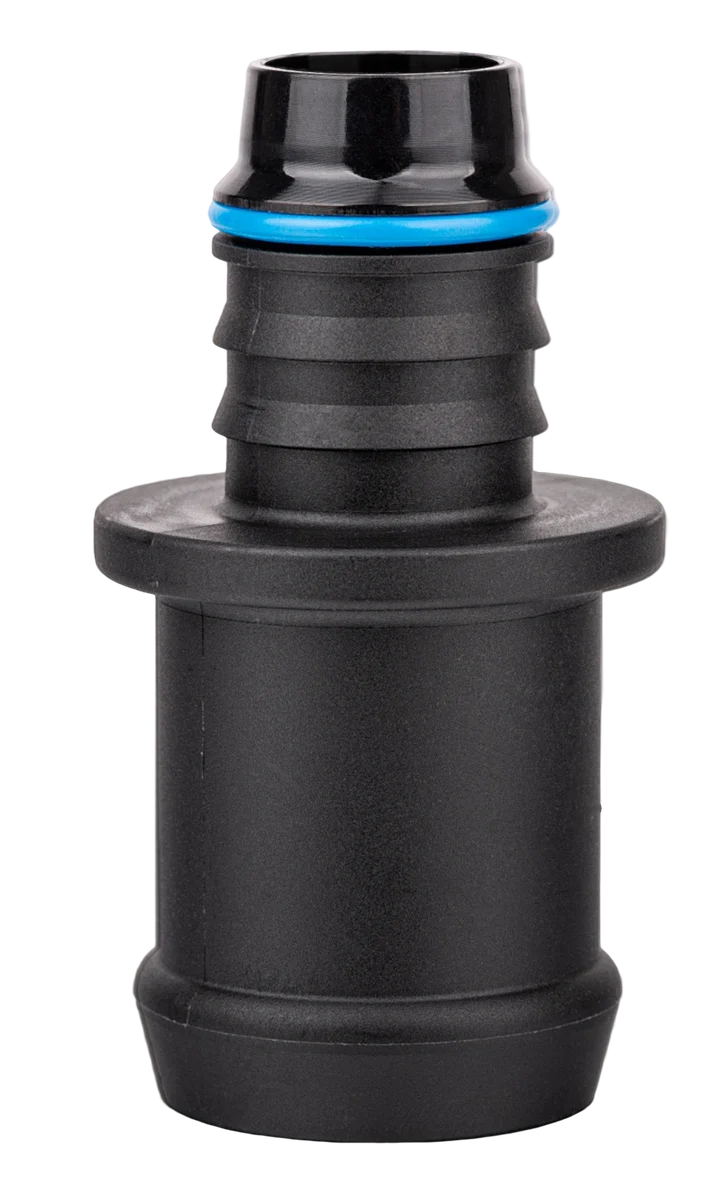

Adapter -0° - ID15 / Rubber24
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length58.9 mm
StandardAdaptor
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
Fir-tree
Inner Ø15 mm
Outer Ø18.9 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.15 mm
Tube min.14.7 mm
Tube max.15.3 mm
Male 2/2
Fir-tree
Inner Ø24 mm
Outer Ø27.5 mm
Fitting materialRubber Hose
Fitting dim.24 mm
Tube min.23.9 mm
Tube max.24.1 mm
— Solutions · Applications
No applications listed
