Adapter
·
Z4

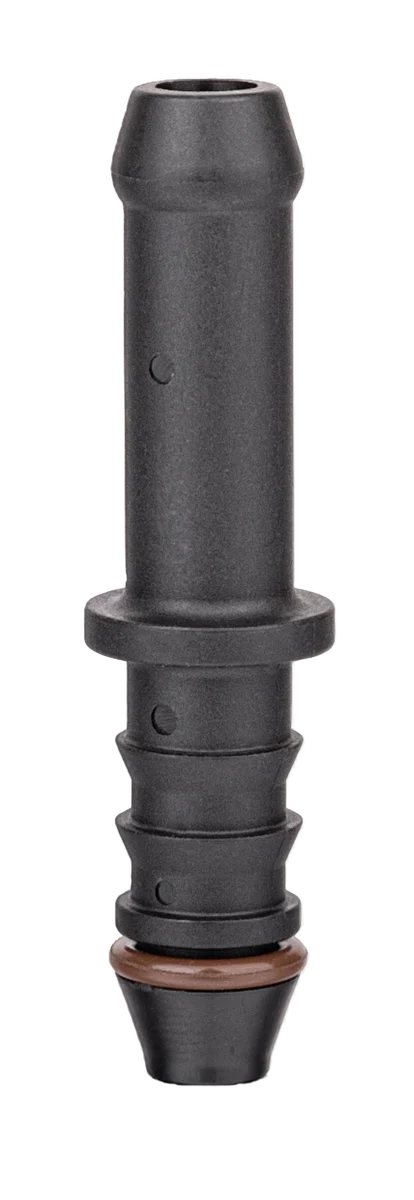

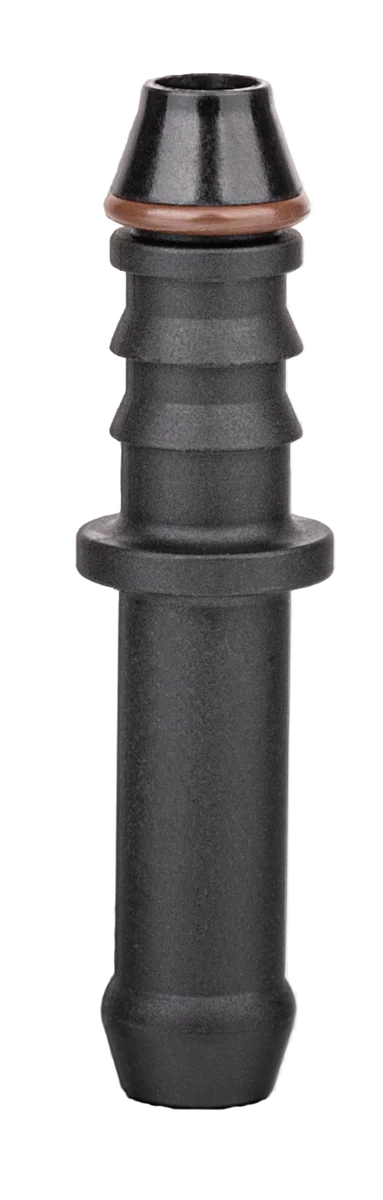

Adapter - 0° - ID6 / Rubber 8
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length48.2 mm
StandardAdaptor
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
Fir-tree
Outer Ø9.1 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.7 mm
Tube max.6.3 mm
Male 2/2
Rubber
Outer Ø9.1 mm
StandardAdaptor
Fitting materialRubber Hose
Fitting dim.8 mm
— Solutions · Applications
No applications listed
