Adapter
·
Z18

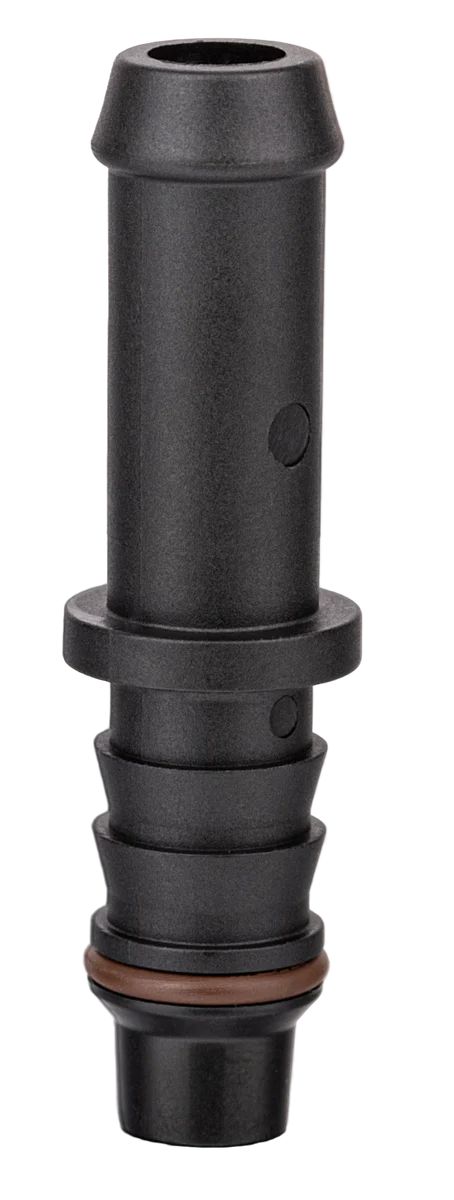

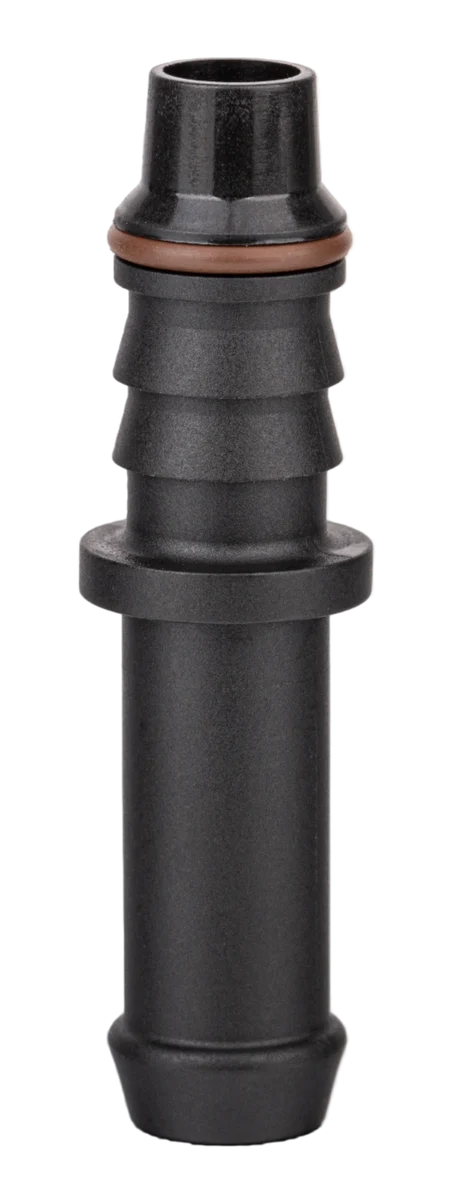

Adapter - 0° - ID10 / Rubber 10
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length51.5 mm
StandardAdaptor
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
Fir-tree
Inner Ø10 mm
Outer Ø12.9 mm
Fitting materialRubber Hose
Fitting dim.10 mm
Tube min.9.9 mm
Tube max.10.1 mm
Male 2/2
Fir-tree
Inner Ø10 mm
Outer Ø12.5 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.10 mm
Tube min.9.9 mm
Tube max.10.1 mm
— Solutions · Applications
No applications listed
