Adapter
·
Z17

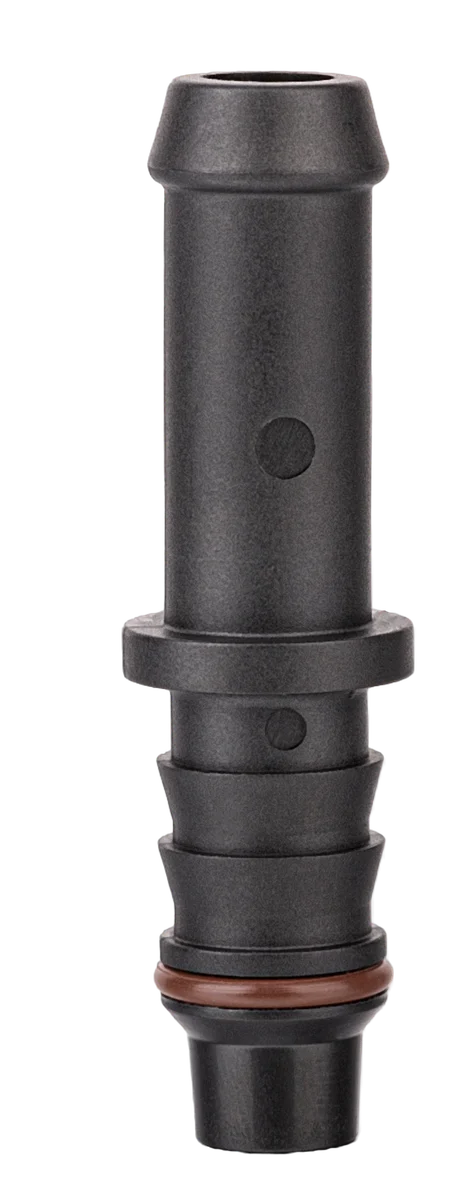

Adapter - 0° - ID8 / Rubber 10
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length51.5 mm
StandardAdaptor
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
Fir-tree
Inner Ø8 mm
Outer Ø10.9 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.8 mm
Tube min.7.7 mm
Tube max.8.3 mm
Male 2/2
Rubber
Inner Ø8 mm
Outer Ø11.5 mm
StandardAdaptor
Fitting materialRubber Hose
Fitting dim.10 mm
Tube min.9.9 mm
Tube max.10.1 mm
— Solutions · Applications
No applications listed
