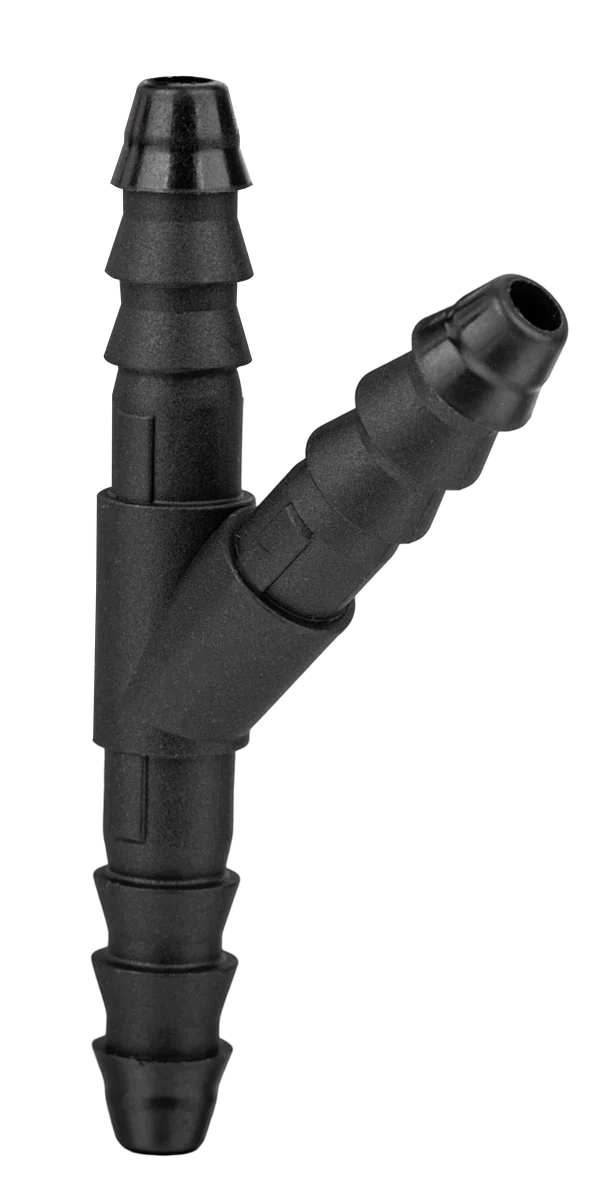

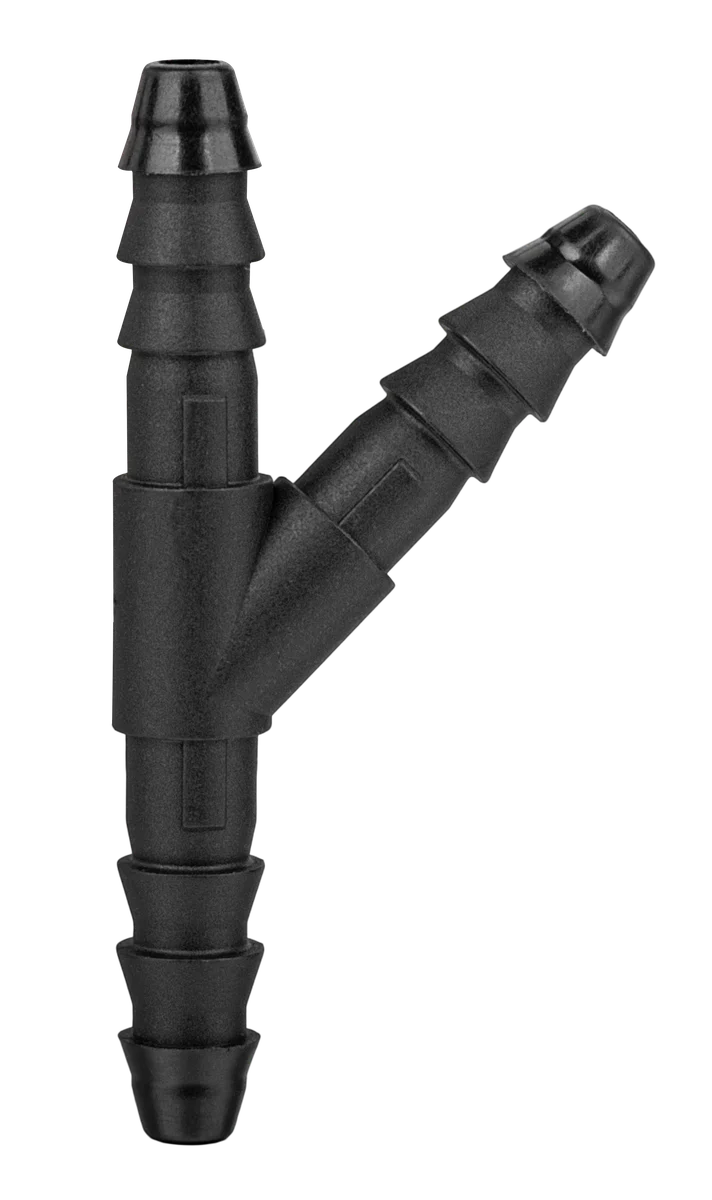

Adapter Y 3 WAY - ID4 / ID4 / ID4
Adapter · Y2

Adapter Y 3 WAY - ID4 / ID4 / ID4

— Specifications

Geometry3 WAY Y Shape
Working temp.-40 / 120 °C
Pressure5–7 bar
StandardAdaptor
FamilyAdapter
CategoryAdapter

ask our engineers back to catalogue

— Interfaces · 3

Male  1/3 Fir-tree
Inner Ø4 mm
Outer Ø6.3 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.4 mm
Tube min.3.7 mm
Tube max.4.3 mm
Male  2/3 Fir-tree
Inner Ø4 mm
Outer Ø6.3 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.4 mm
Tube min.3.7 mm
Tube max.4.3 mm
Male  3/3 Fir-tree
Inner Ø4 mm
Outer Ø6.3 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.4 mm
Tube min.3.7 mm
Tube max.4.3 mm

— Solutions · Applications

No applications listed
