Adapter
·
Y15

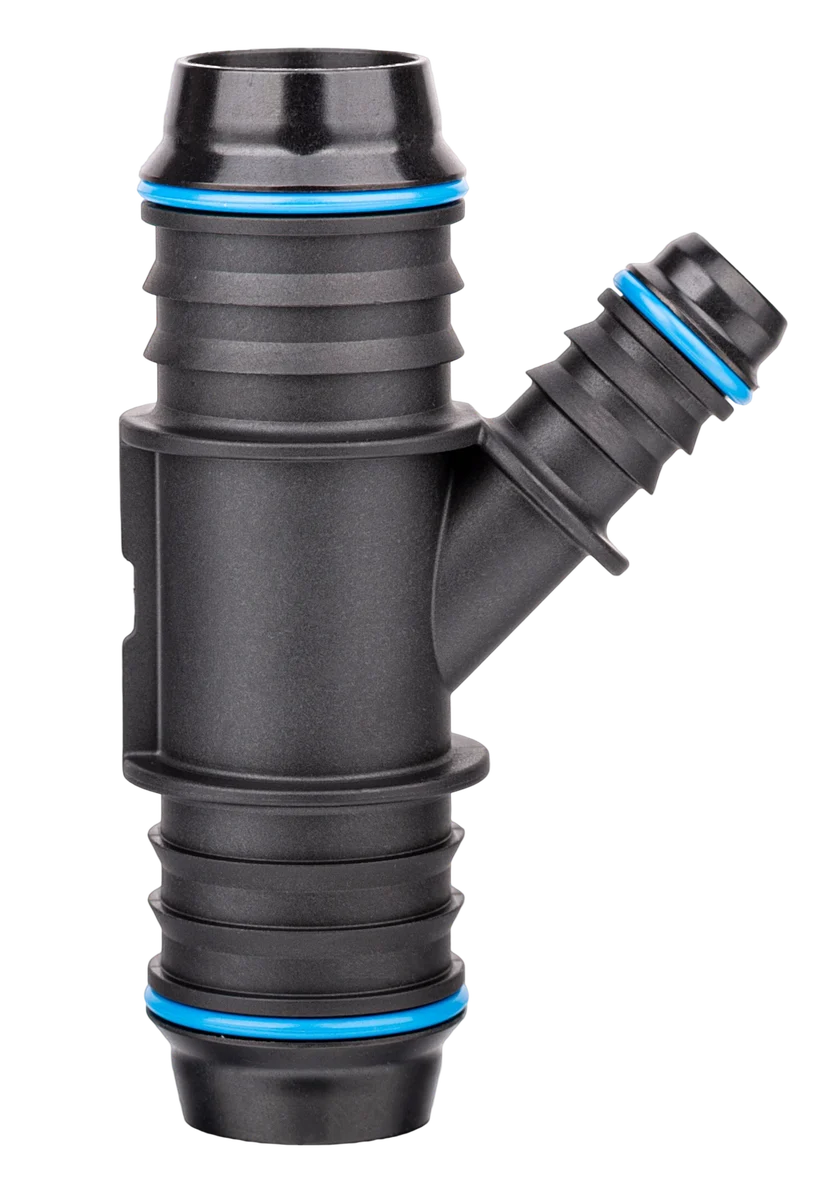

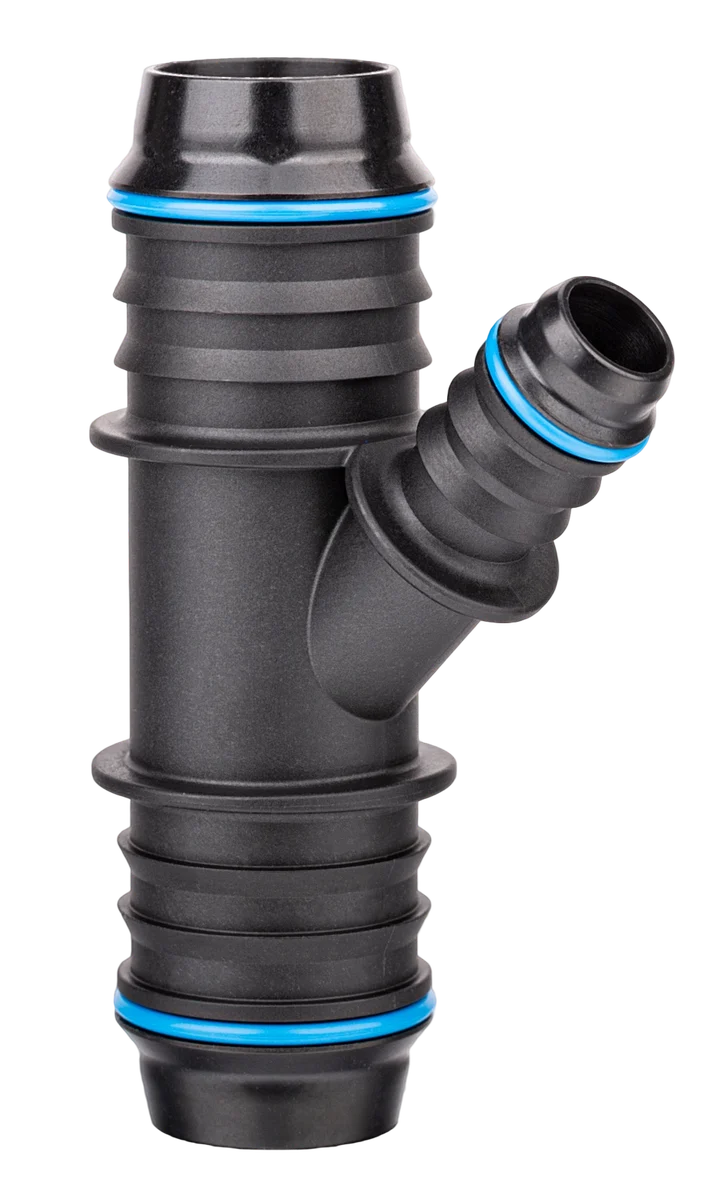

Y ADAPTER - 2X Ø24X1.5mm - Ø14x1mm - COOLING
— Specifications
Geometry3 WAY Y Shape
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length87.6 mm
StandardAdaptor
FamilyAdapter
CategoryAdapter
— Interfaces · 3
Male 1/3
Fir-tree
Inner Ø18.73 mm
Outer Ø26.4 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.8 mm
Tube max.21.2 mm
Male 2/3
Fir-tree
Inner Ø18.73 mm
Outer Ø26.4 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.8 mm
Tube max.21.2 mm
Male 3/3
Fir-tree
Inner Ø9.2 mm
Outer Ø14.55 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.12 mm
Tube min.11.9 mm
Tube max.12.1 mm
— Solutions · Applications
No applications listed
