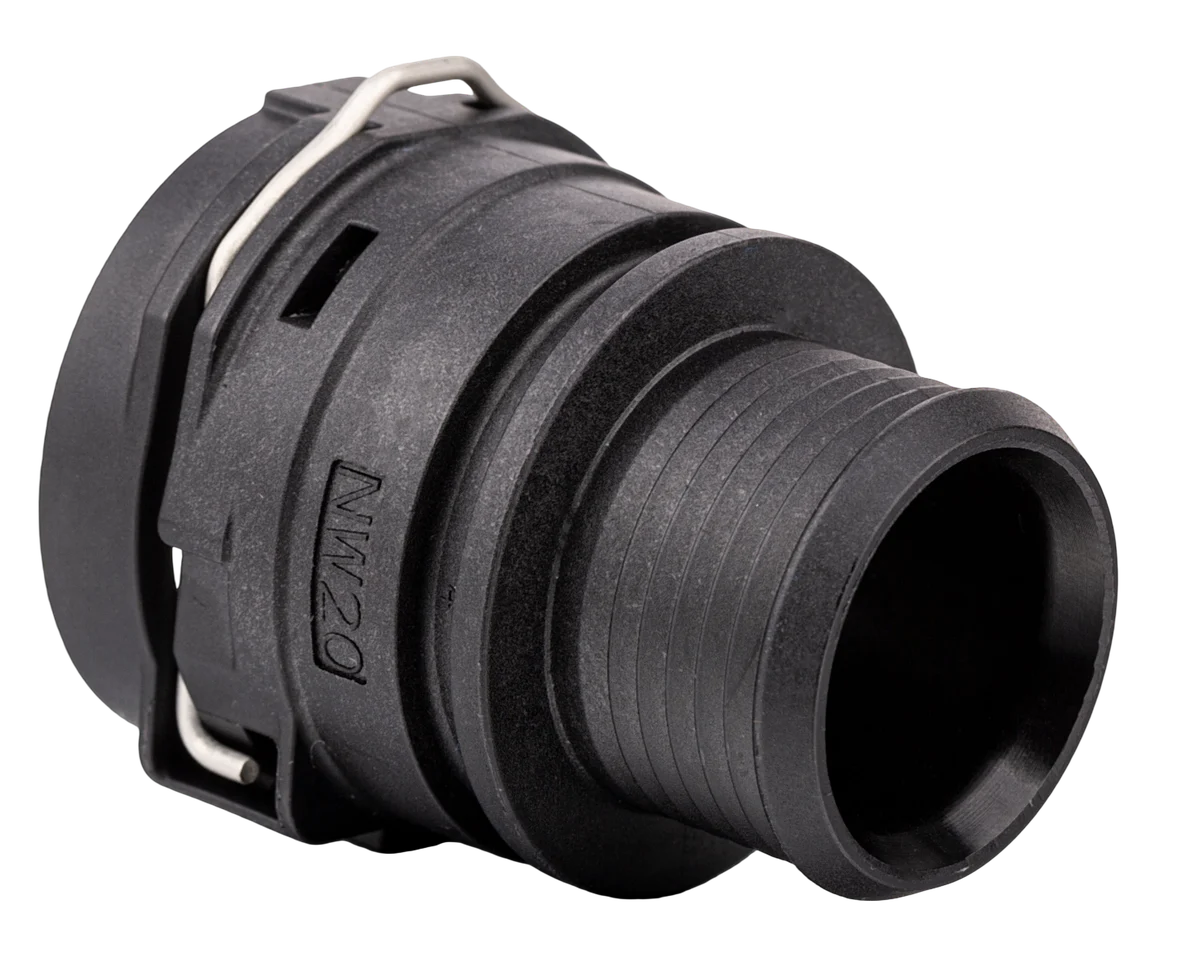

VDA Quick coupling
·
XP3

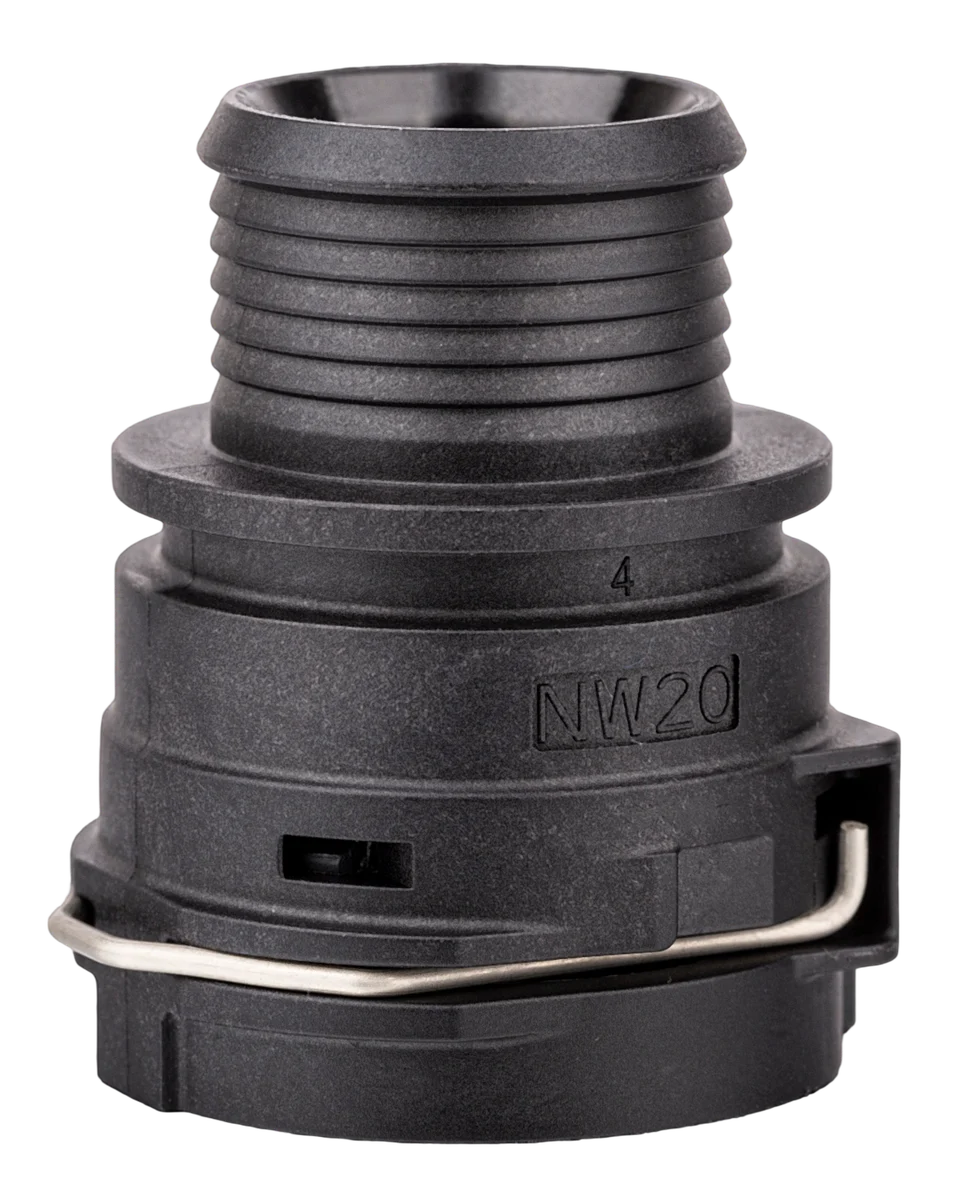

VDA NW20 - 0° - Rubber 26 - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length51.15 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW20 mm
Outer Ø41.7 mm
StandardVDA
Fitting dim.26.3 mm
Min.26 mm
Max.26.3 mm
Male 2/2
Rubber
Inner Ø20.16 mm
Outer Ø28.5 mm
Fitting materialRubber Hose
Fitting dim.26 mm
Tube min.25.8 mm
Tube max.26.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
