VDA Quick coupling
·
XA50

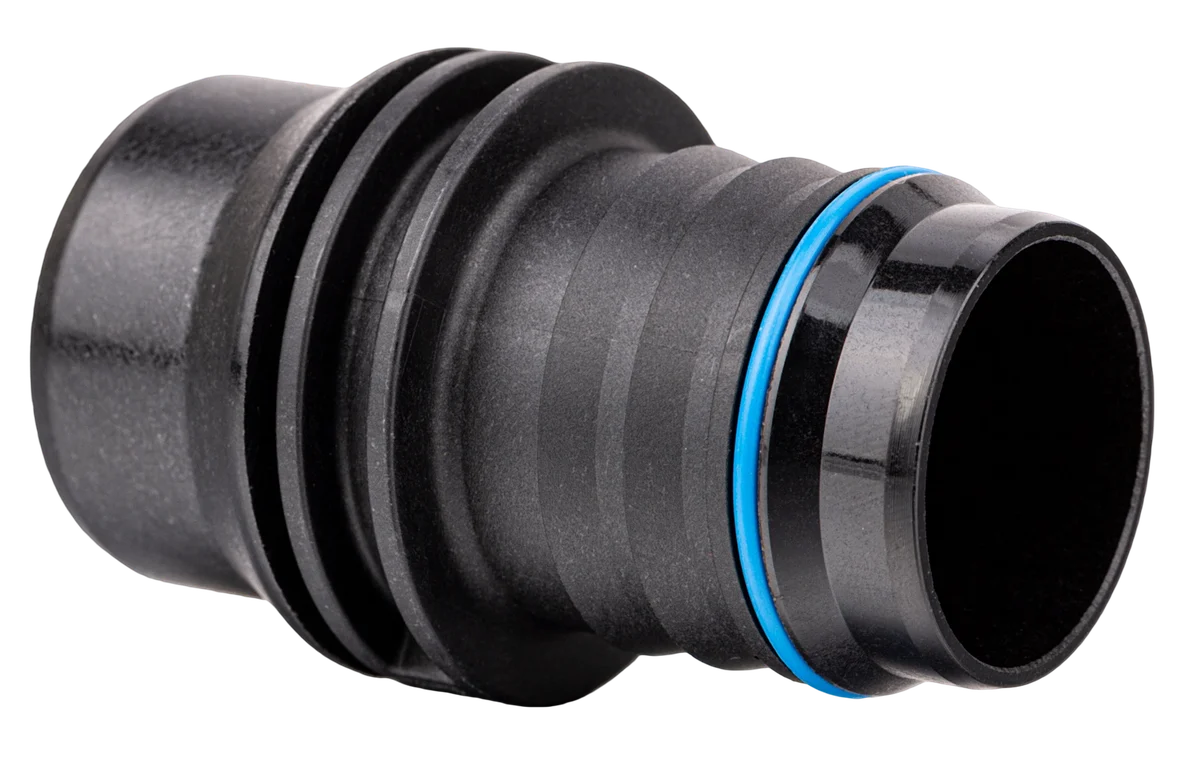

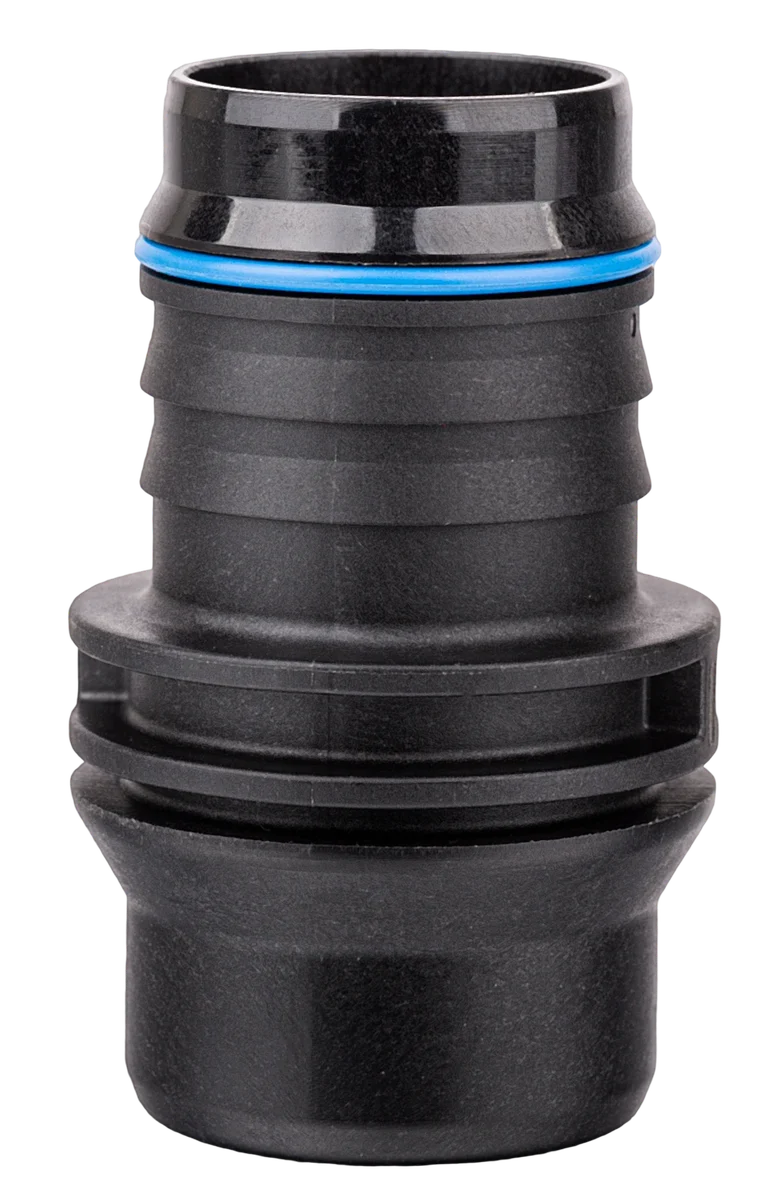

MALE VDA NW 26 - 0° - Ø28X1.5mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length63.5 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Male 1/2
Quick Coupling Connector
Inner Ø26 mm
Outer Ø32.5 mm
StandardVDA
Fitting dim.NW26 mm
Male 2/2
Fir-tree
Inner Ø24.8 mm
Outer Ø30.65 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.25 mm
Tube min.24.9 mm
Tube max.25.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
