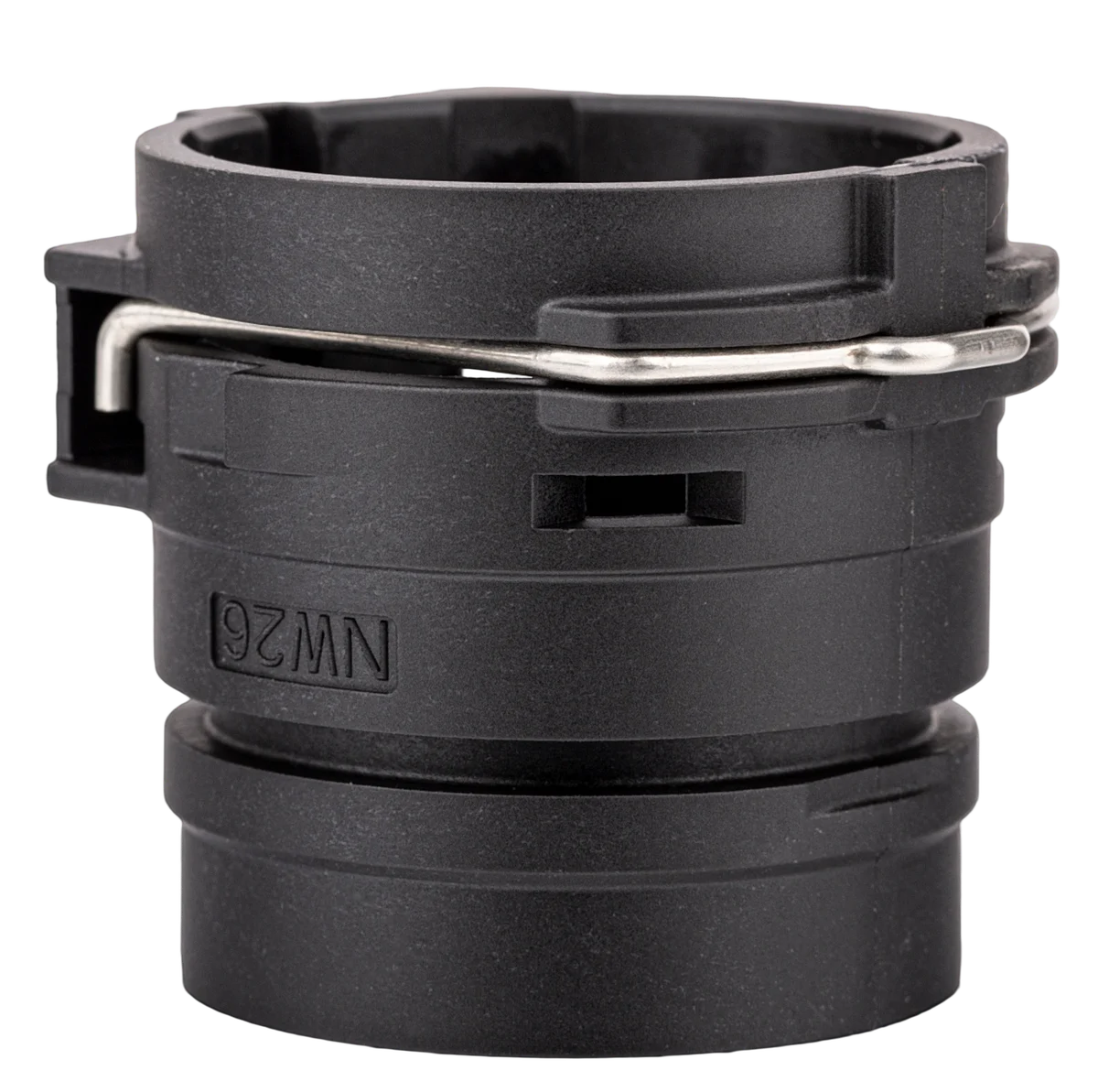

VDA Quick coupling
·
XA3

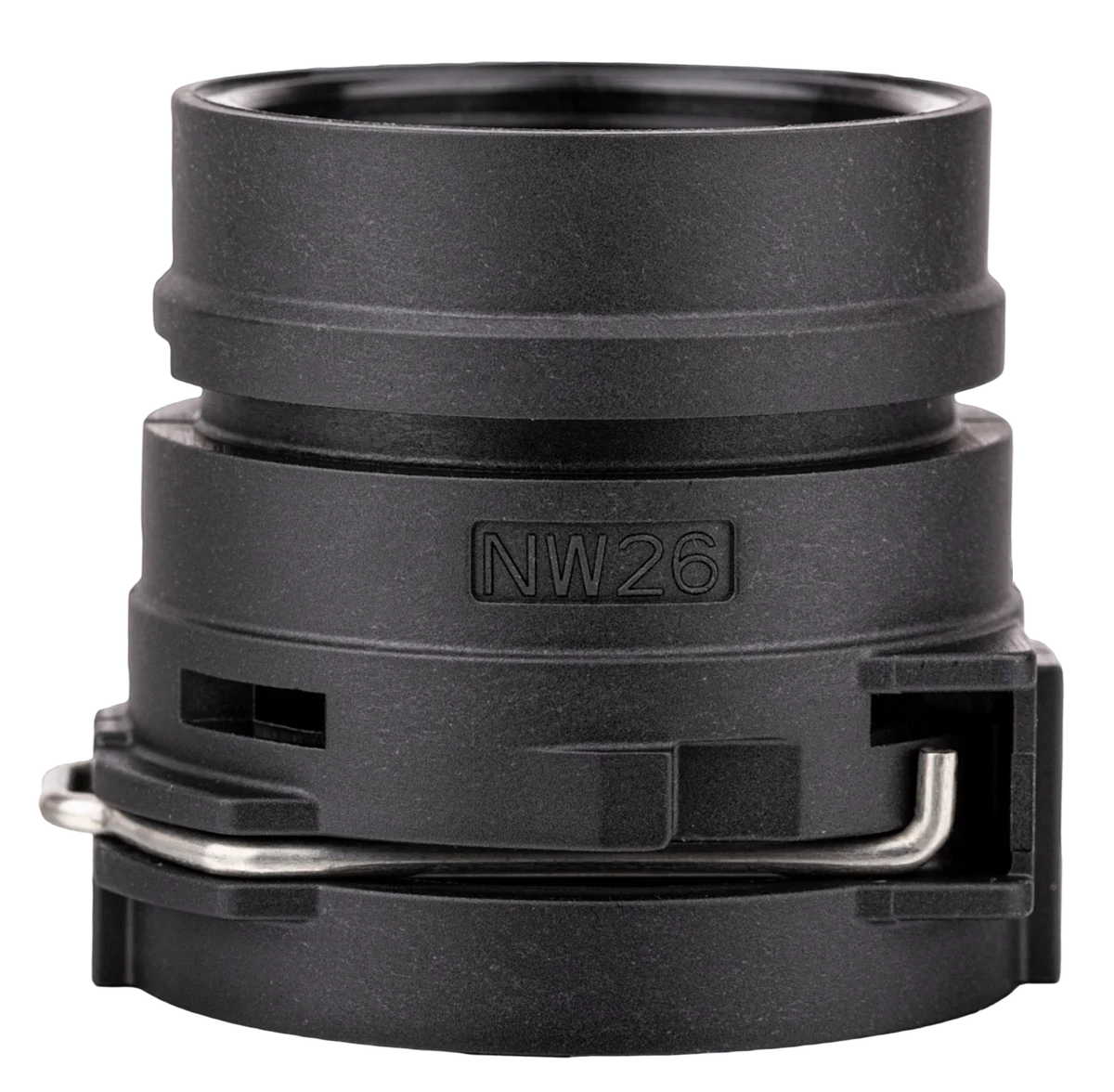

VDA NW26 - 0° - M35 - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length45.65 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW26 mm
Outer Ø50 mm
StandardVDA
Fitting dim.32.5 mm
Min.32.2 mm
Max.32.8 mm
Female 2/2
Thread
Inner Ø35 mm
Outer Ø42 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
