VDA Quick coupling
·
XA1

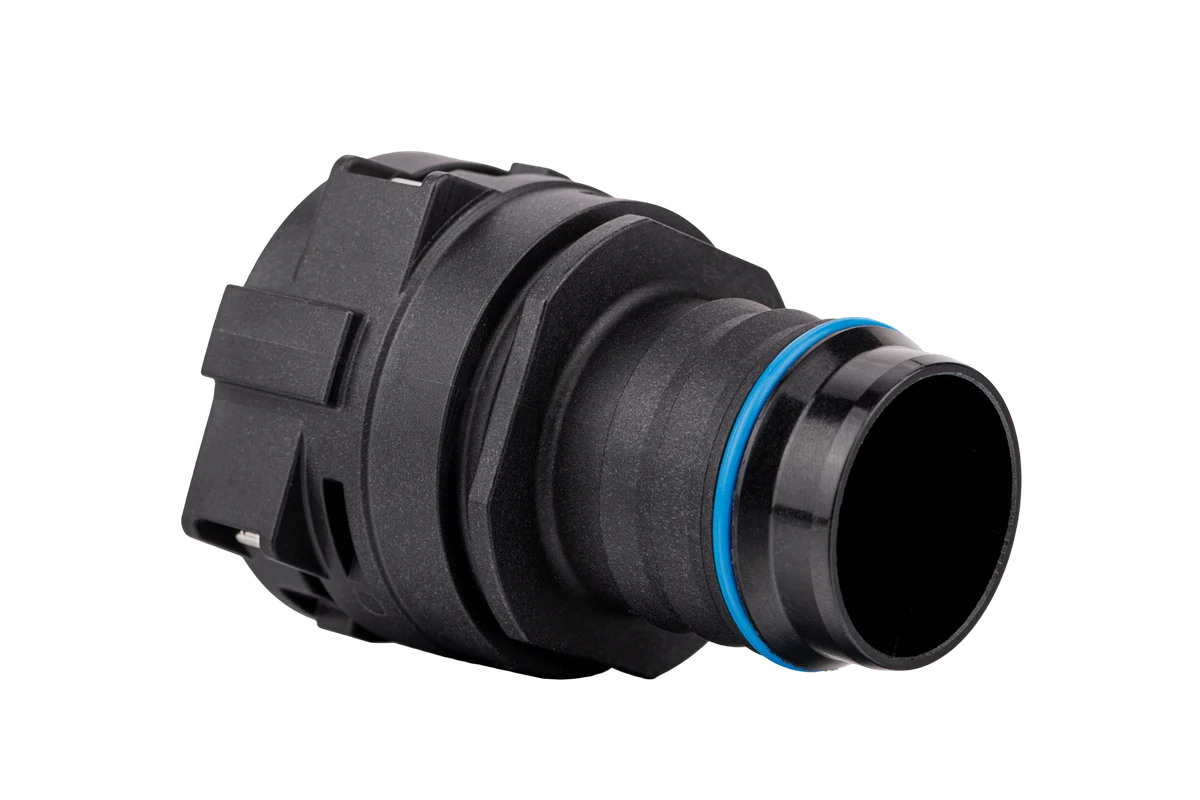

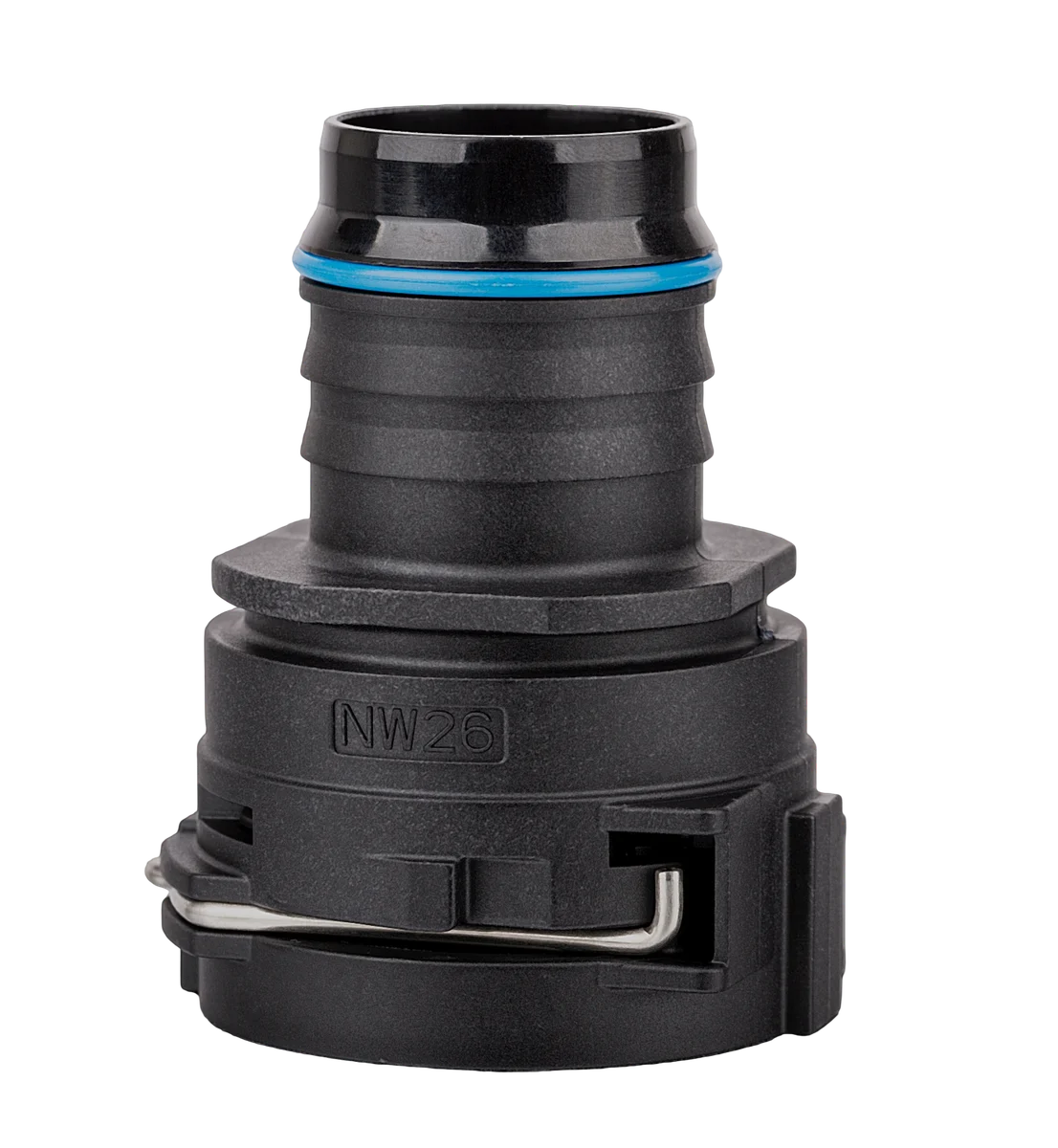

VDA NW26 - 0° - Ø28X1.5mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length66.5 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW26 mm
Outer Ø50 mm
StandardVDA
Fitting dim.32.5 mm
Min.32.2 mm
Max.32.8 mm
Male 2/2
Fir-tree
Inner Ø24.8 mm
Outer Ø30.65 mm
Fitting materialPlastic pipe
Fitting dim.25 mm
Tube min.24.8 mm
Tube max.25.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
