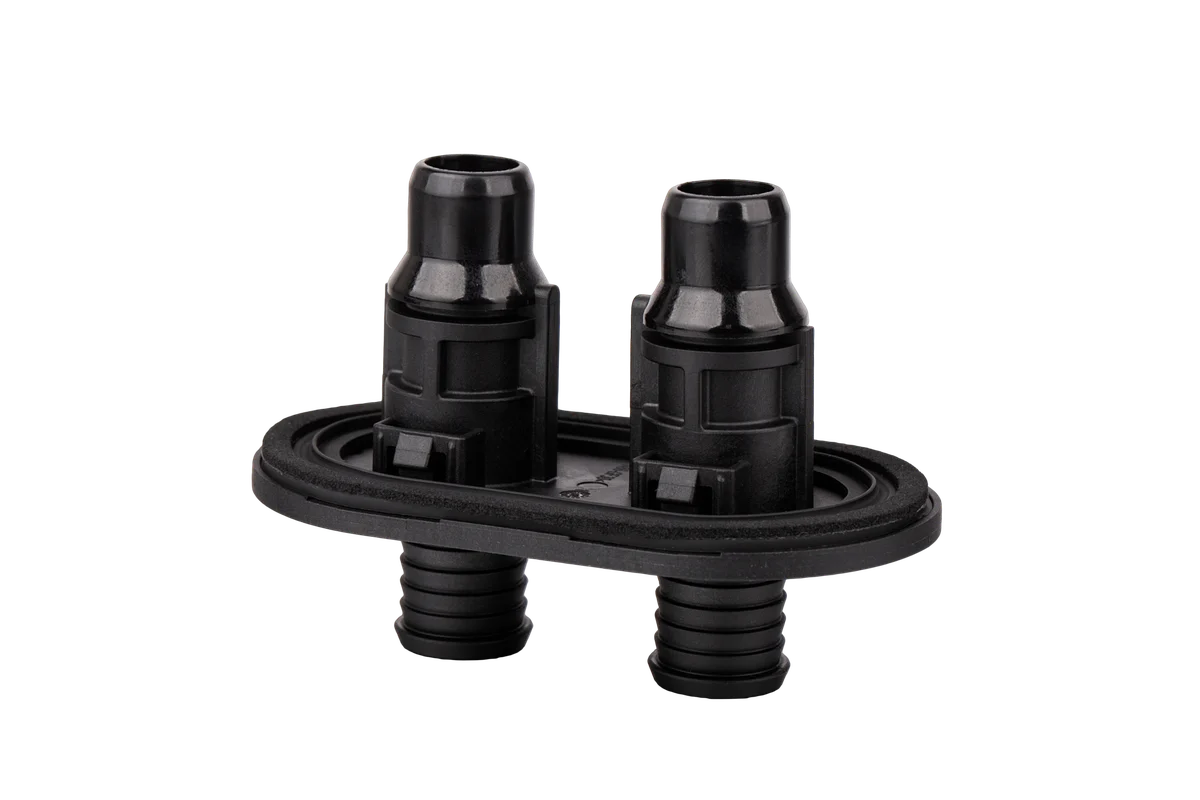

VDA Quick coupling
·
SG-1

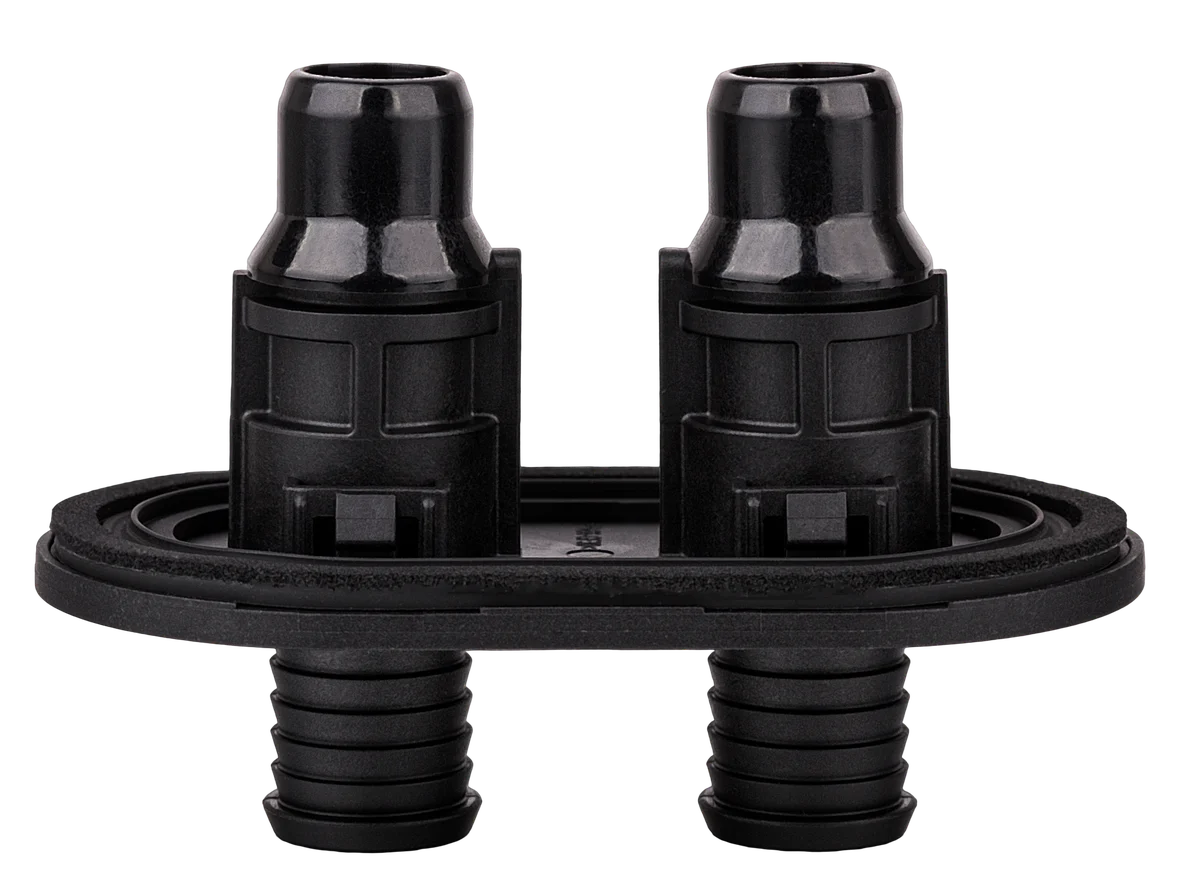

2X MALE NW12 - 2X Rubber 16 - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length64.79 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Male 1/2
Quick Coupling Connector
Inner Ø12 mm
Outer Ø16.3 mm
StandardVDA
Fitting dim.NW12 mm
Male 2/2
Rubber
Inner Ø12 mm
Outer Ø17 mm
StandardAdaptor
Fitting materialRubber Hose
Fitting dim.16 mm
Tube min.15.8 mm
Tube max.16.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
