VDA Quick coupling
·
PB3

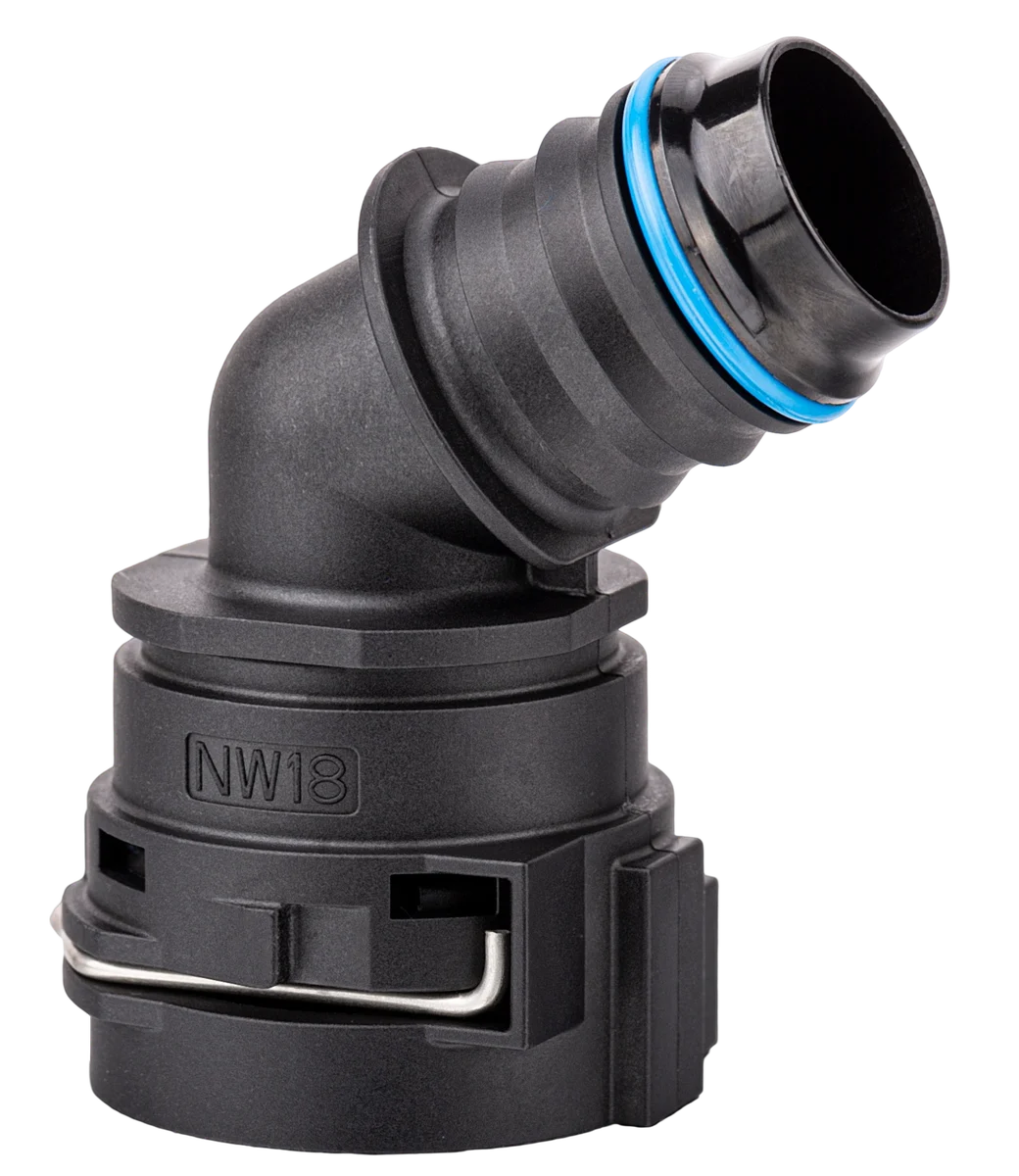

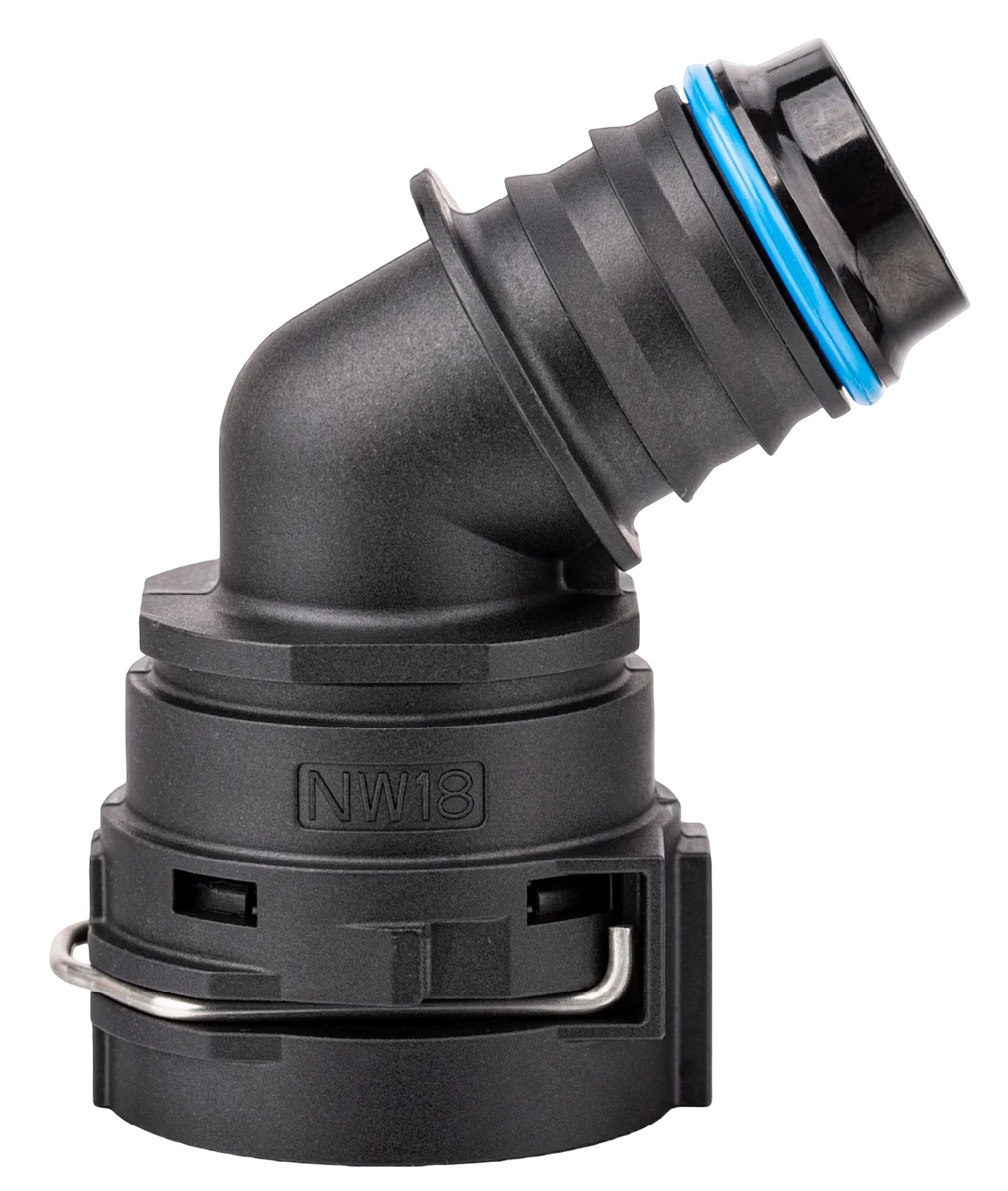

VDA NW18 - 60° - Ø20X1mm - COOLING
— Specifications
GeometryElbow 60°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length70 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW18 mm
Outer Ø39.2 mm
StandardVDA
Fitting dim.24.3 mm
Min.24 mm
Max.24.6 mm
Male 2/2
Fir-tree
Inner Ø17.8 mm
Outer Ø23.1 mm
Fitting materialPlastic pipe
Fitting dim.18 mm
Tube min.17.8 mm
Tube max.18.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
