VDA Quick coupling
·
OB21

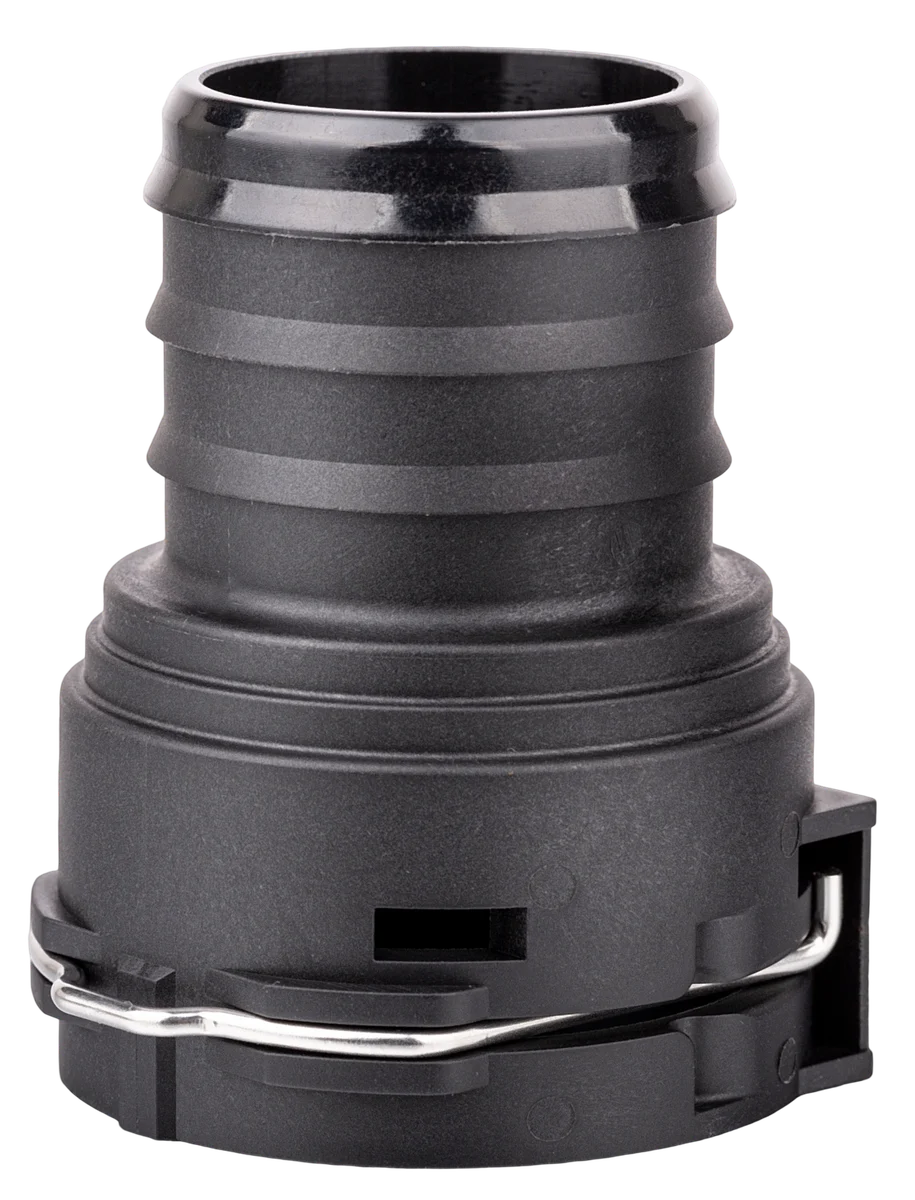

VDA NW32 - 0° - Ø34X1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length69 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW32 mm
Outer Ø54.52 mm
StandardVDA
Fitting dim.38.5 mm
Min.38.2 mm
Max.38.8 mm
Male 2/2
Fir-tree
Inner Ø32 mm
Outer Ø40 mm
Fitting materialPlastic pipe
Fitting dim.32 mm
Tube min.31.9 mm
Tube max.32.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
