VDA Quick coupling
·
NW08-2

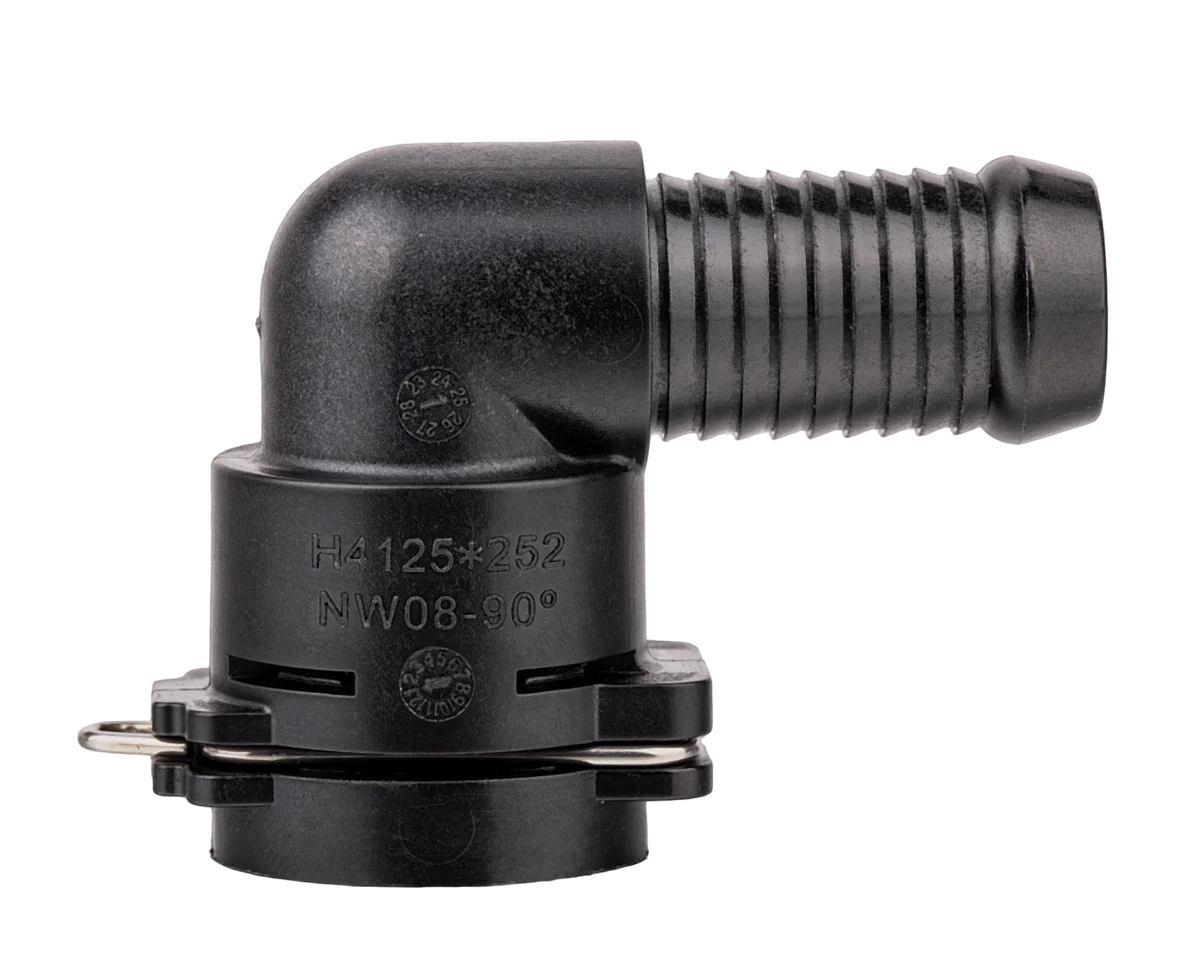

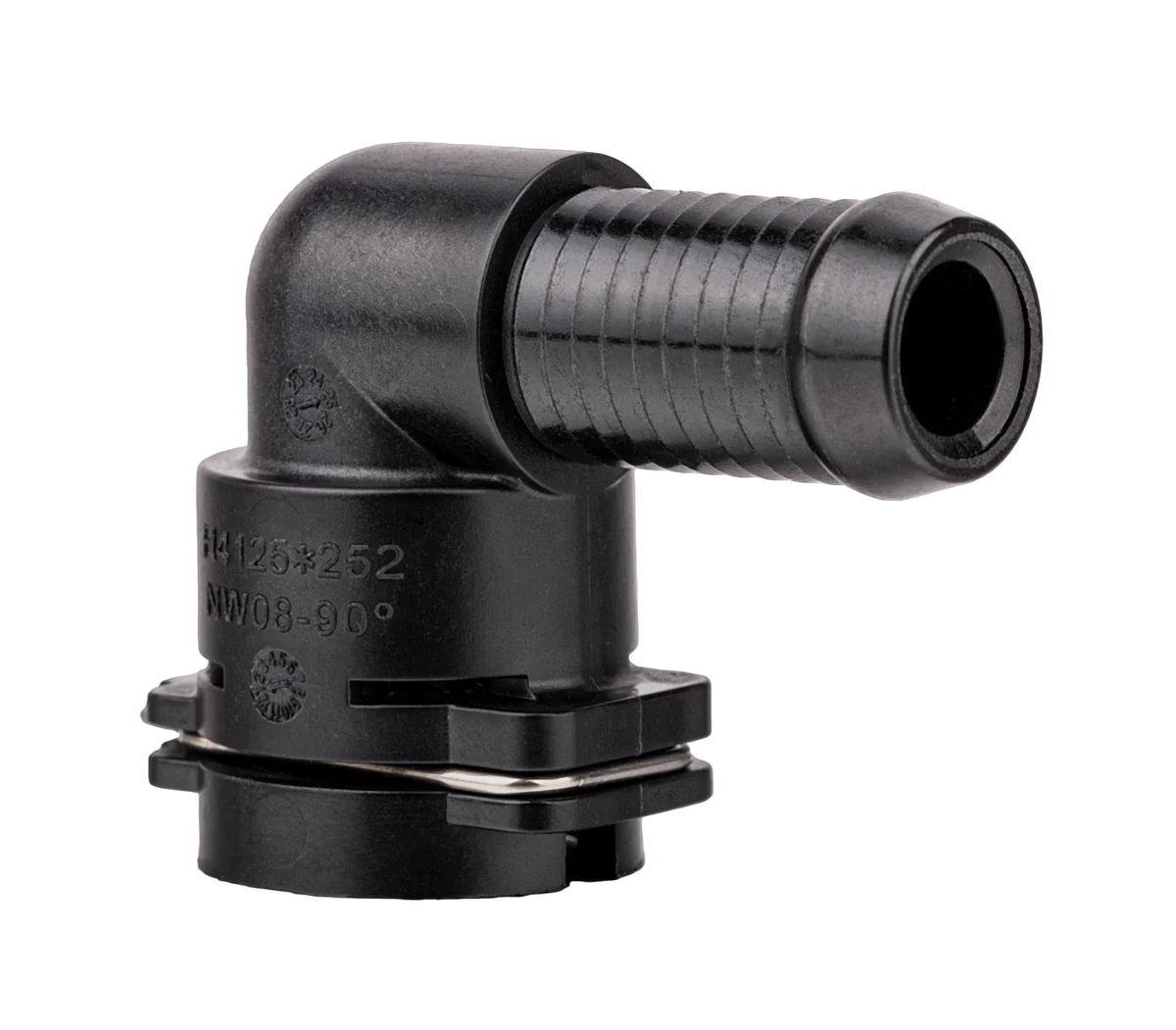

VDA NW8 - 90° - Rubber 14 - COOLING
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length39.35 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW8 mm
Outer Ø24 mm
StandardVDA
Fitting dim.12.4 mm
Min.12.3 mm
Max.12.5 mm
Male 2/2
Rubber
Inner Ø9 mm
Outer Ø14.85 mm
Fitting materialRubber Hose
Fitting dim.14 mm
Tube min.13.8 mm
Tube max.14.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
