VDA Quick coupling
·
NFD1

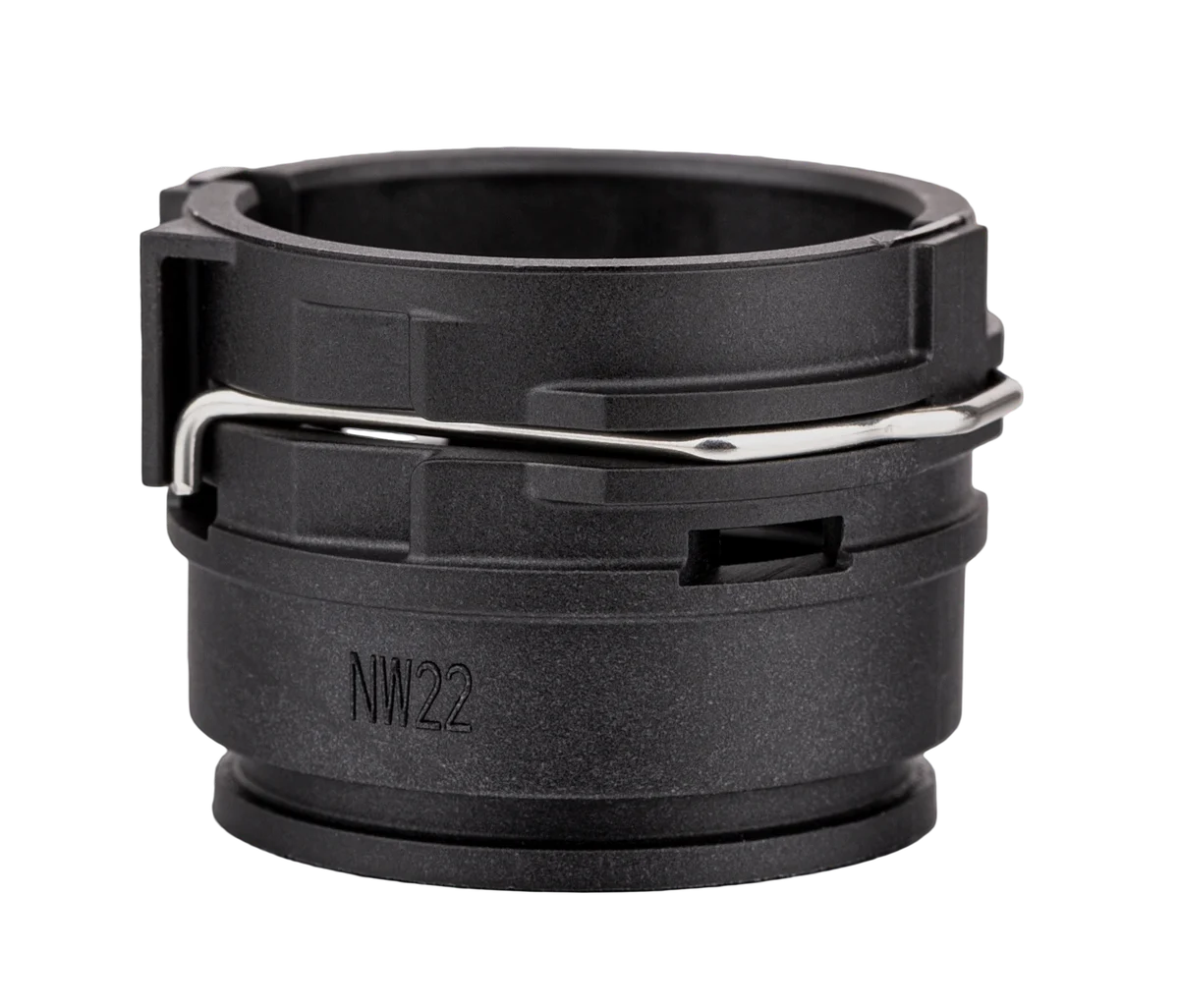

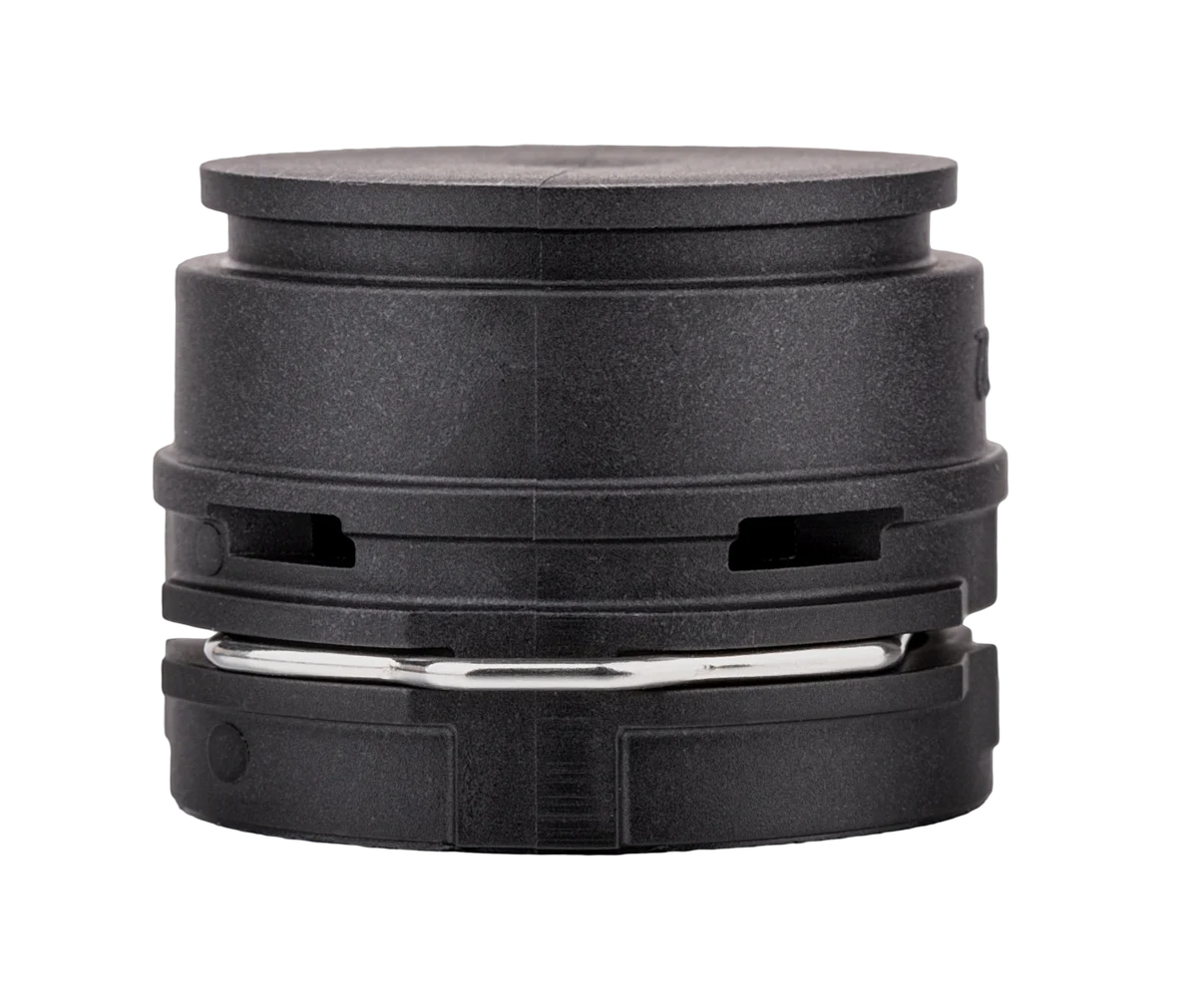

VDA NW22 - CAP
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length31.9 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 1
Female 1/1
Quick Coupling Connector
Inner ØNW22 mm
Outer Ø43.7 mm
StandardVDA
Fitting dim.28.3 mm
Min.28 mm
Max.28.6 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
