VDA Quick coupling
·
NF6

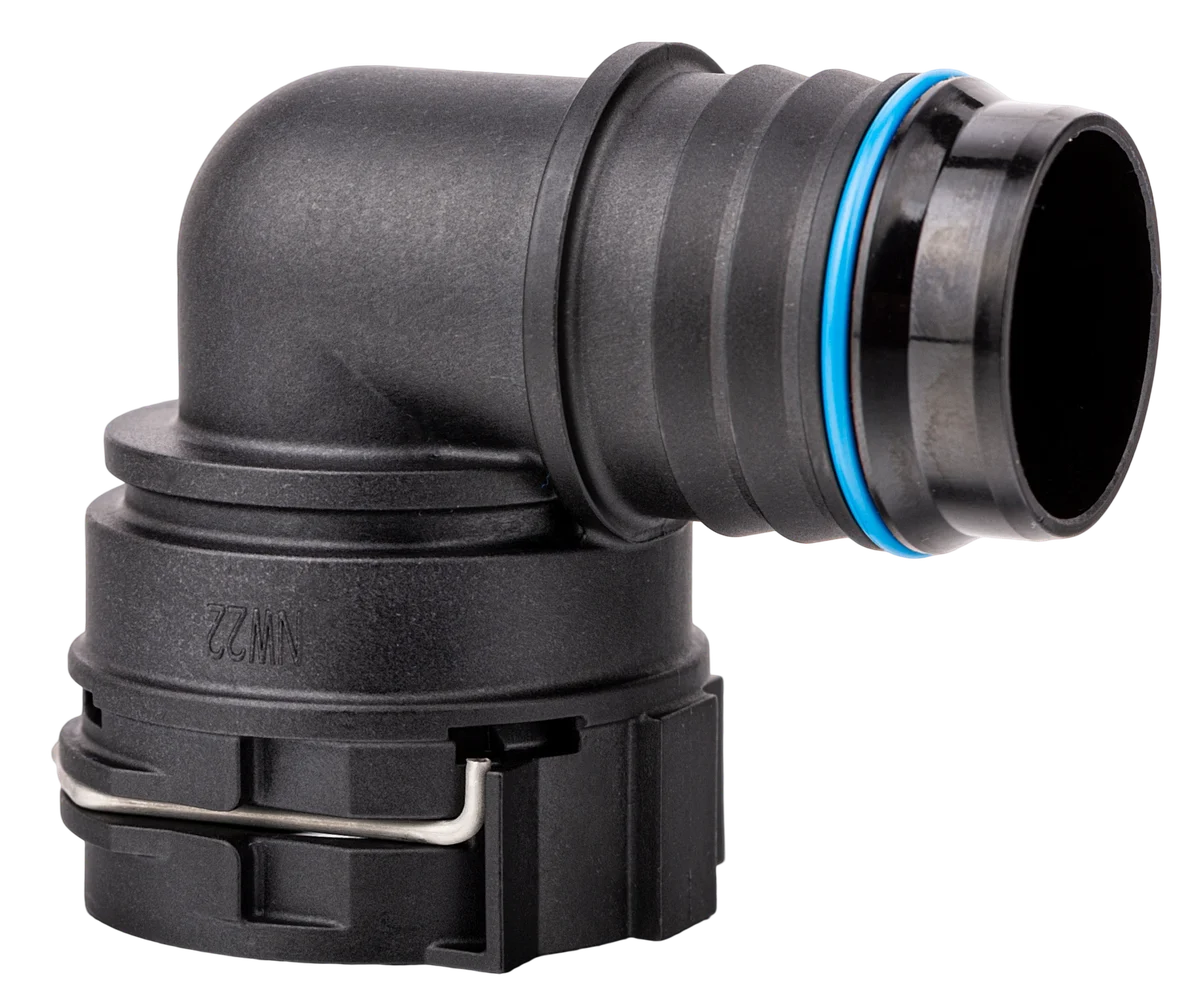

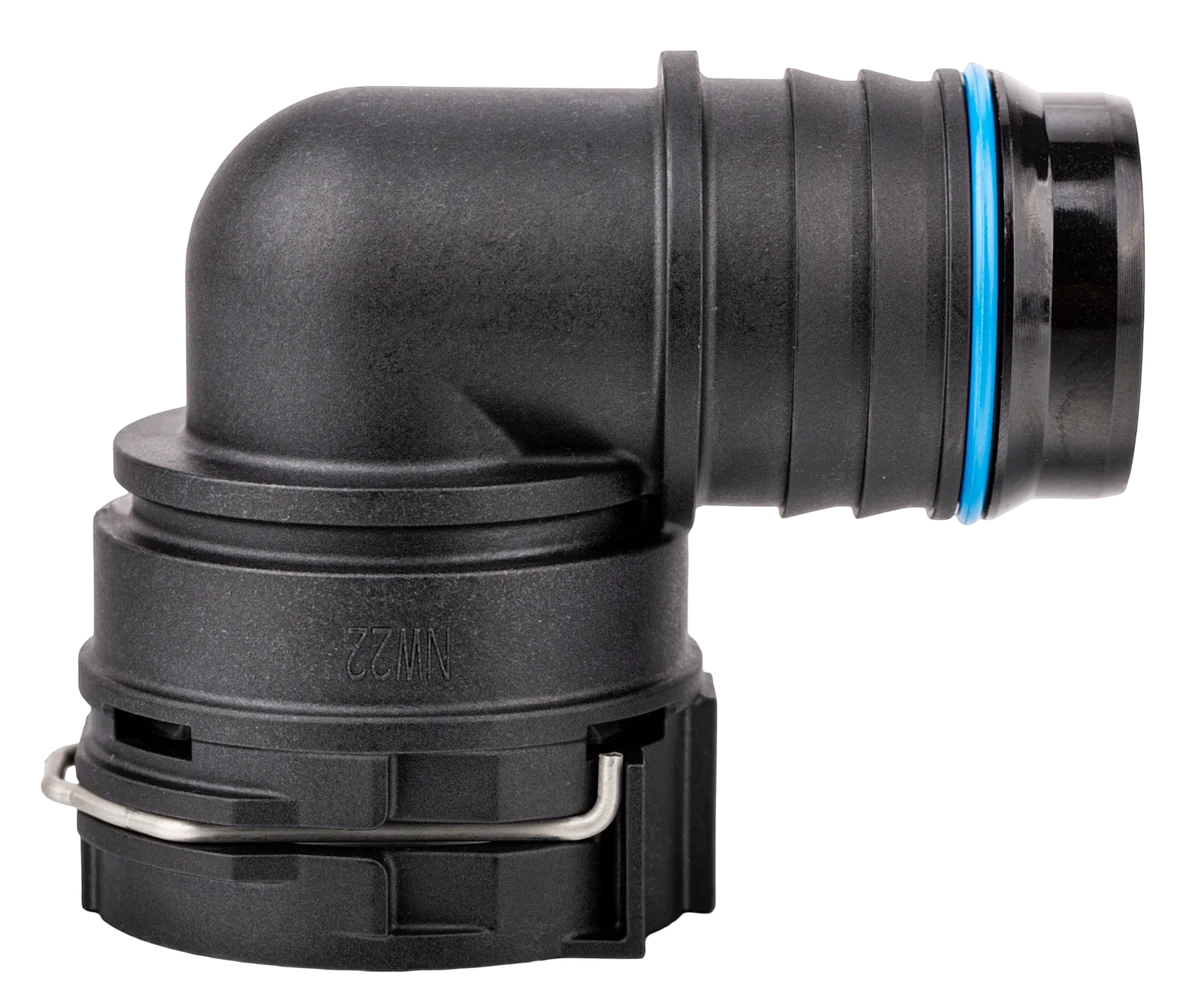

VDA NW22 - 90° - Ø28X1.5mm - COOLING
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length58.75 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW22 mm
Outer Ø43.7 mm
StandardVDA
Fitting dim.28.3 mm
Min.28 mm
Max.28.6 mm
Male 2/2
Fir-tree
Inner Ø24.8 mm
Outer Ø30.65 mm
Fitting materialPlastic pipe
Fitting dim.25 mm
Tube min.24.9 mm
Tube max.25.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
