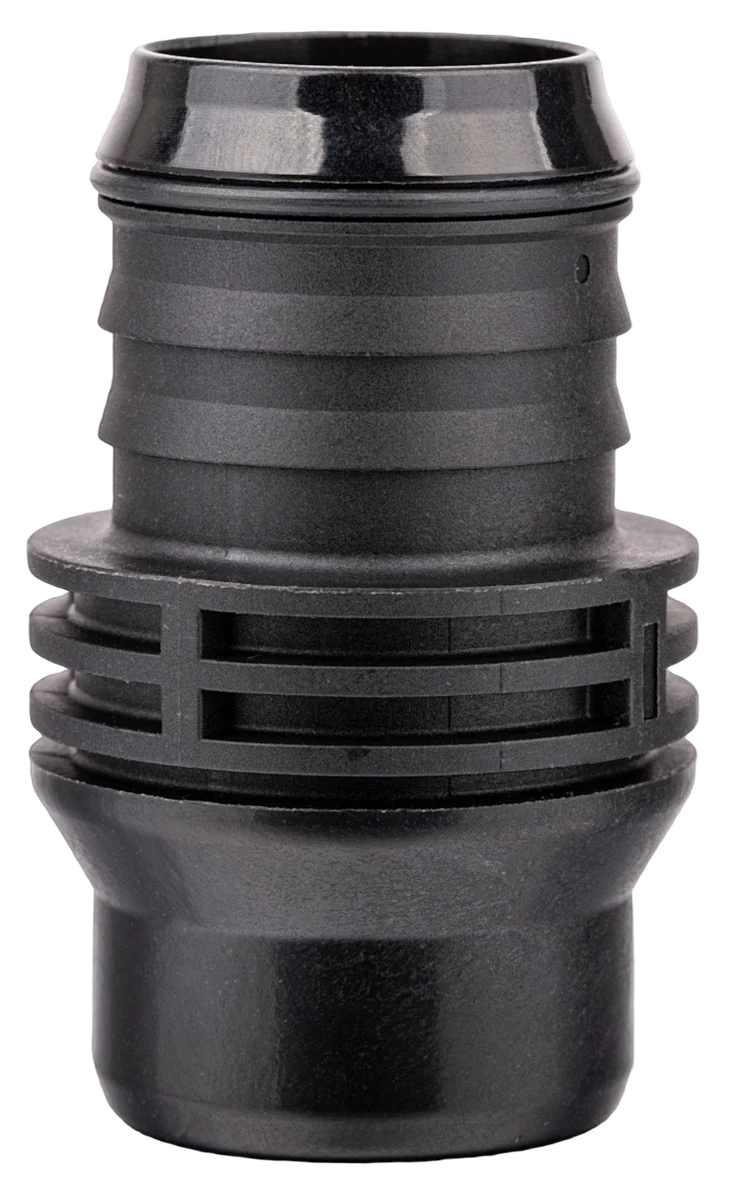

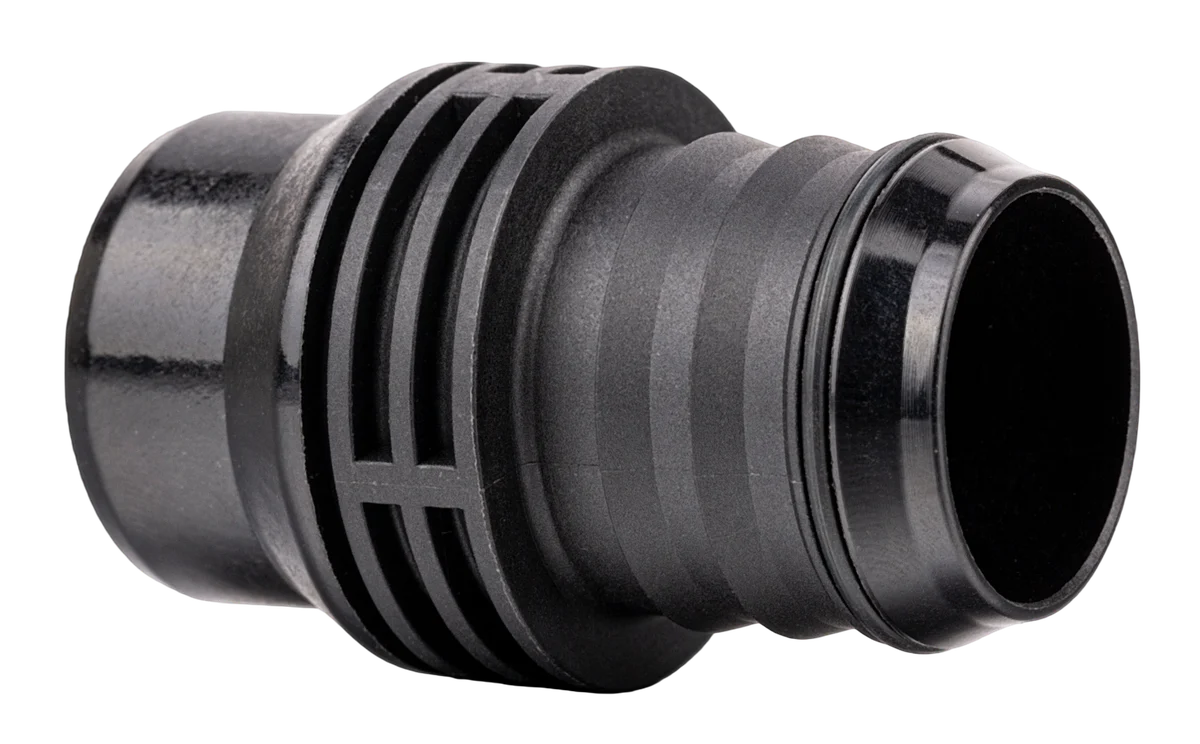

VDA Quick coupling
·
NF50
MALE VDA NW22 - 0° - Ø24X1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length56.3 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Male 1/2
Quick Coupling Connector
Inner Ø22 mm
Outer Ø28.3 mm
StandardVDA
Fitting dim.NW22 mm
Male 2/2
Fir-tree
Inner Ø22 mm
Outer Ø27.5 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.22 mm
Tube min.21.9 mm
Tube max.22.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
