VDA Quick coupling
·
NF1

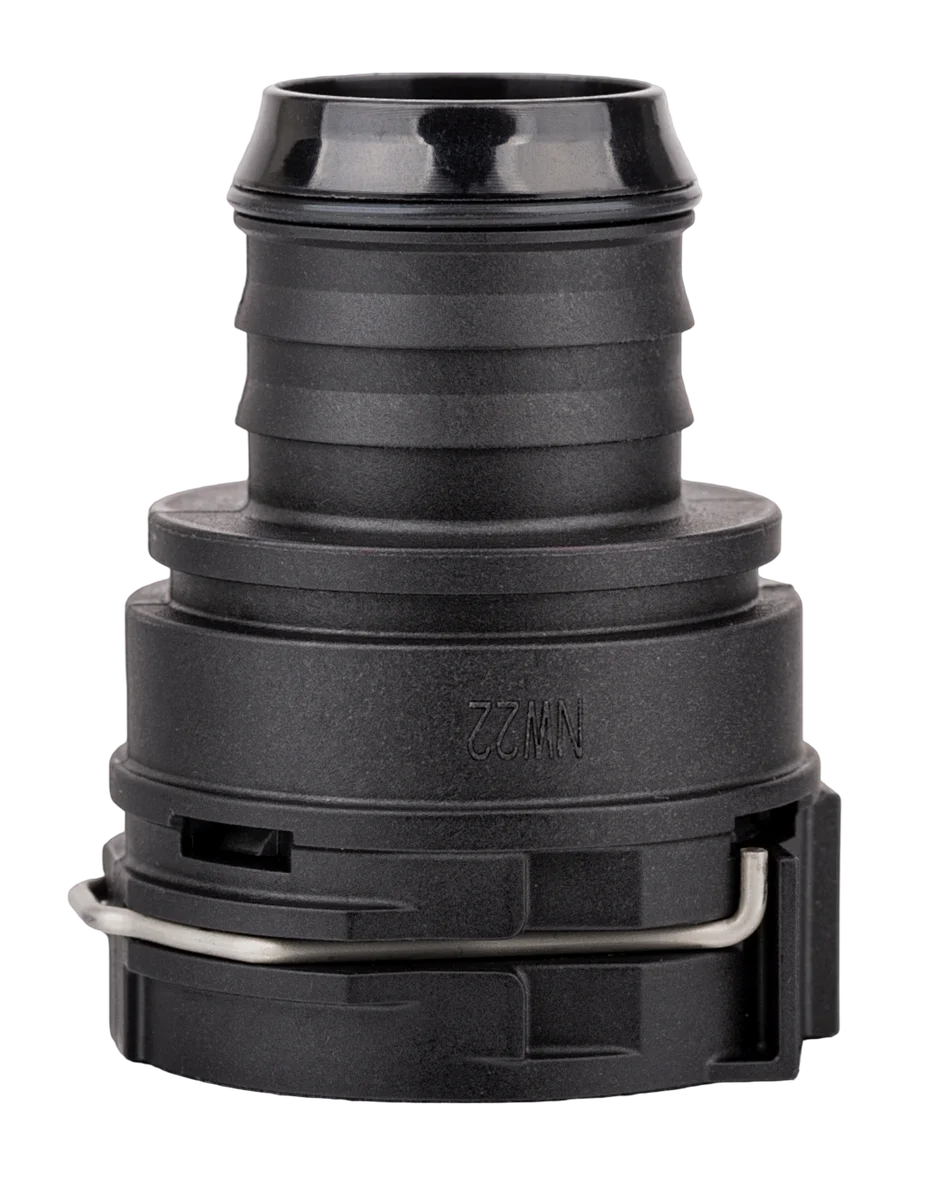

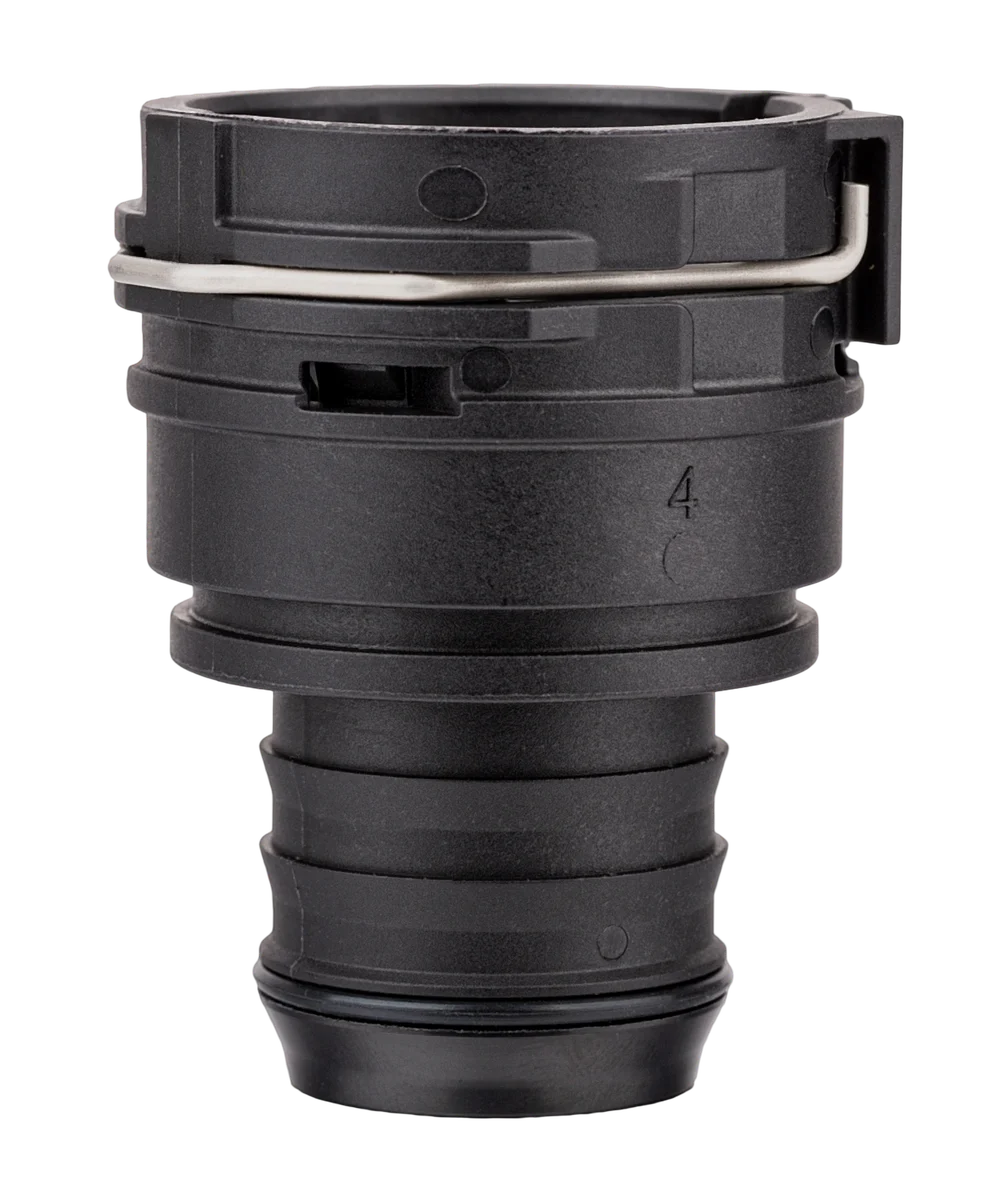

VDA NW22 - 0° - Ø24X1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length57.45 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW22 mm
Outer Ø43.7 mm
StandardVDA
Fitting dim.28.3 mm
Min.28 mm
Max.28.6 mm
Male 2/2
Fir-tree
Inner Ø22 mm
Outer Ø27.5 mm
Fitting materialPlastic pipe
Fitting dim.22 mm
Tube min.21.9 mm
Tube max.22.1 mm
