VDA Quick coupling
·
NBD1

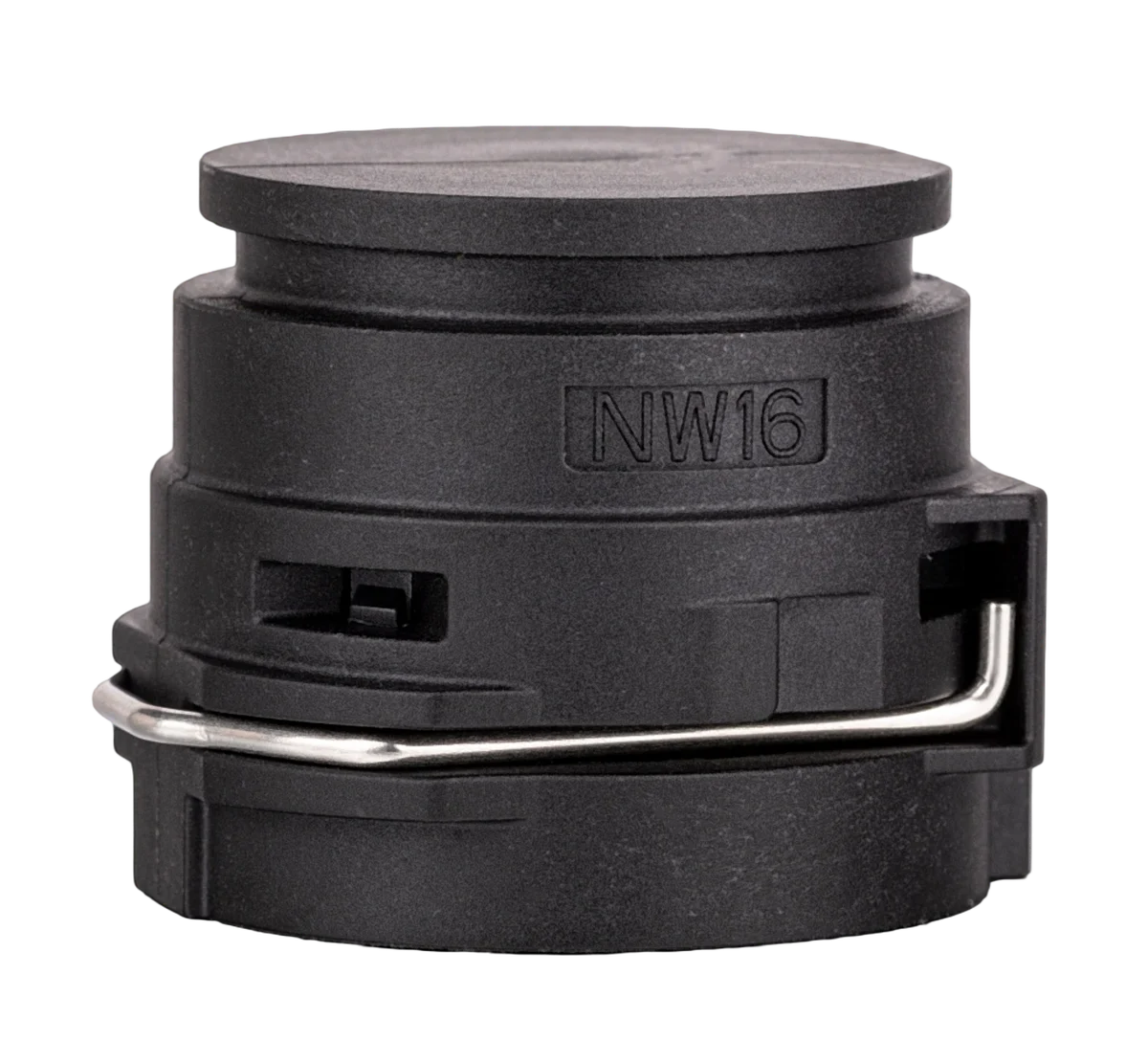

VDA NW16 - CAP
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length31.4 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 1
Female 1/1
Quick Coupling Connector
Inner ØNW16 mm
Outer Ø37.8 mm
StandardVDA
Fitting dim.22.3 mm
Min.22 mm
Max.22.6 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
