VDA Quick coupling
·
NB53

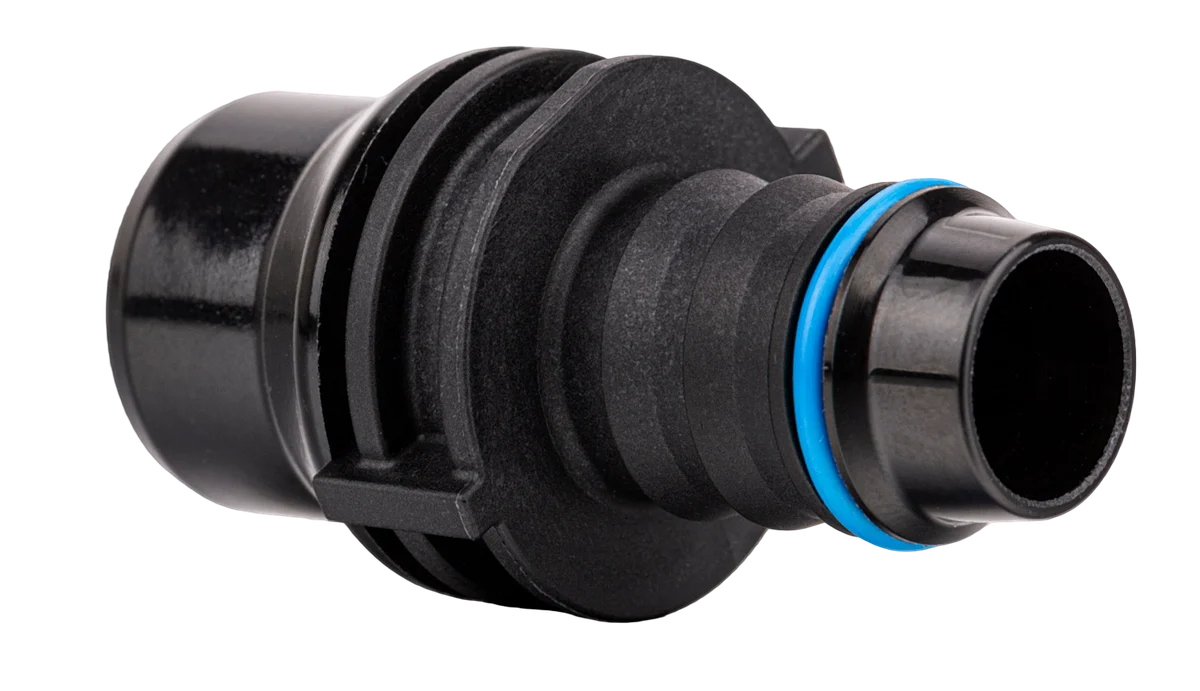

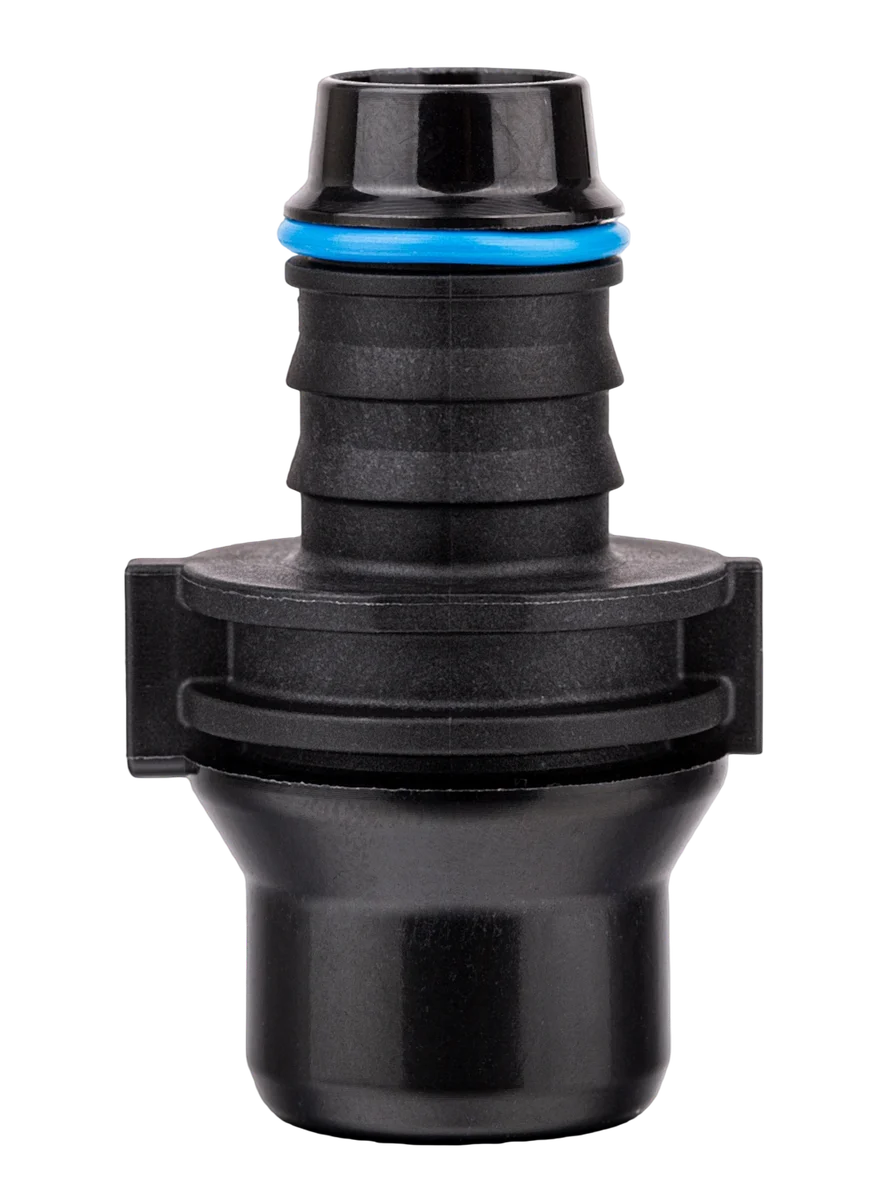

MALE VDA NW16 - 0° - Ø16x1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length54 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Male 1/2
Quick Coupling Connector
Inner Ø16 mm
Outer Ø22.3 mm
StandardVDA
Fitting dim.NW16 mm
Male 2/2
Fir-tree
Inner Ø12.1 mm
Outer Ø17.47 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.14 mm
Tube min.13.7 mm
Tube max.14.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
