VDA Quick coupling
·
NB50

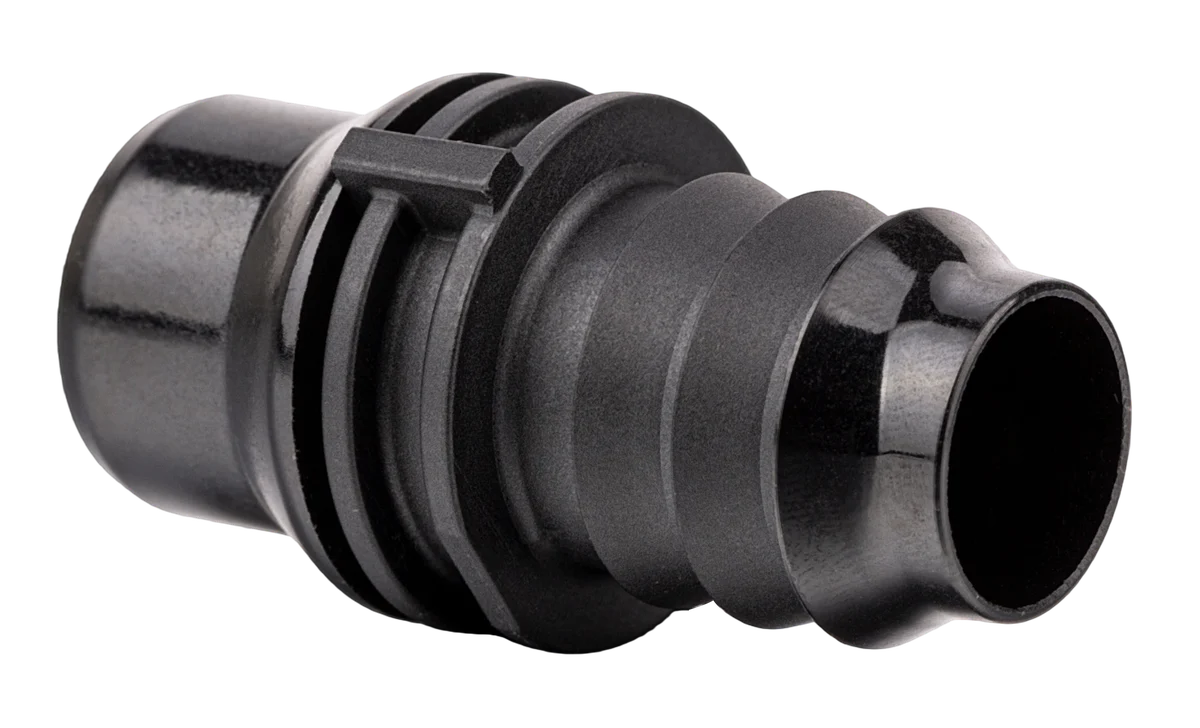

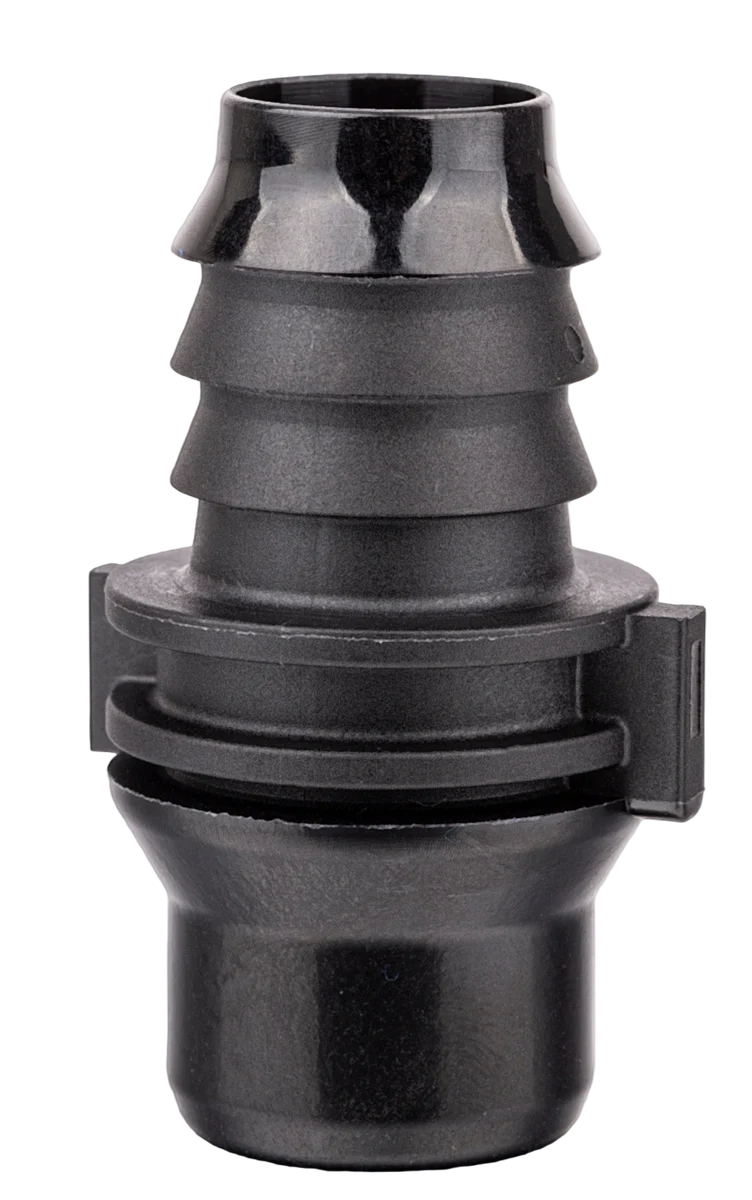

MALE VDA NW16 - 0° - Ø18x1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length54 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Male 1/2
Quick Coupling Connector
Inner Ø16 mm
Outer Ø22.3 mm
StandardVDA
Fitting dim.NW16 mm
Male 2/2
Fir-tree
Inner Ø15.2 mm
Outer Ø21.8 mm
StandardAdaptor
Fitting materialPlastic pipe
Fitting dim.16 mm
Tube min.15.8 mm
Tube max.16.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
