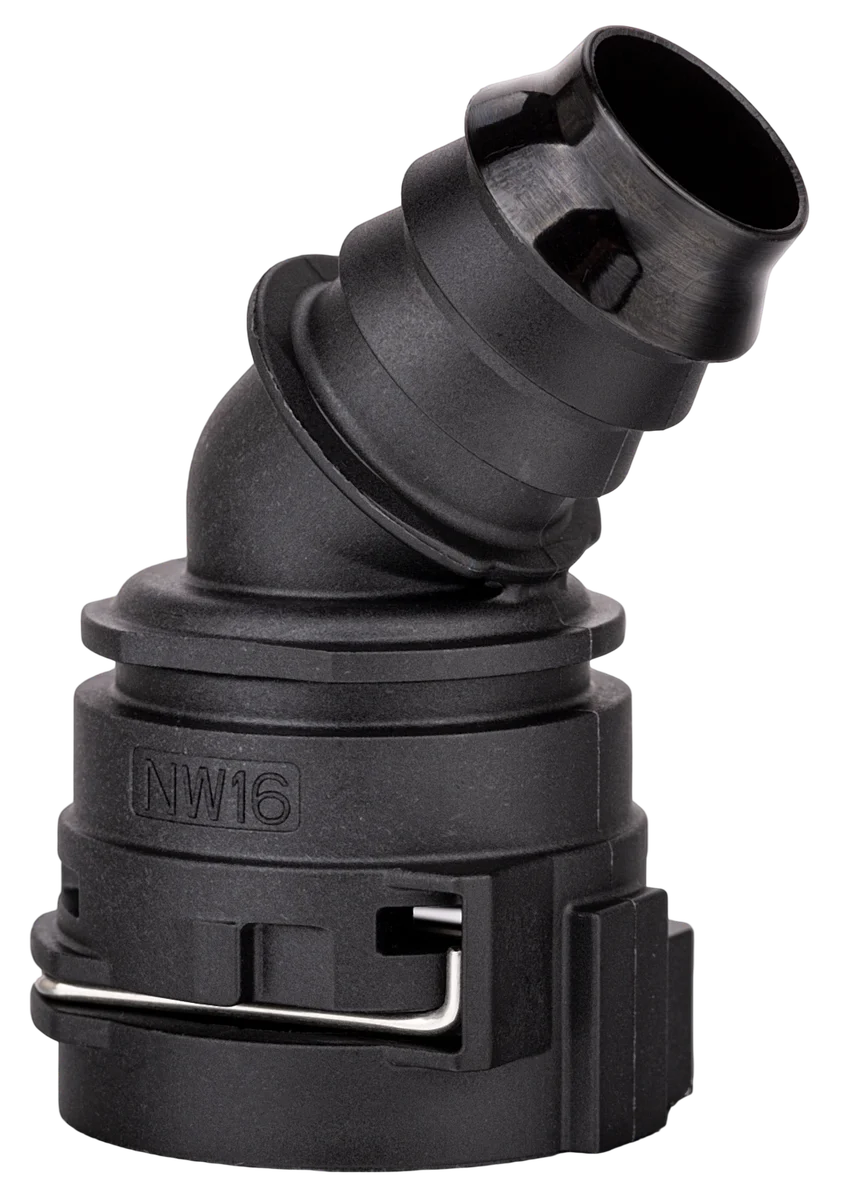

VDA Quick coupling
·
NB3

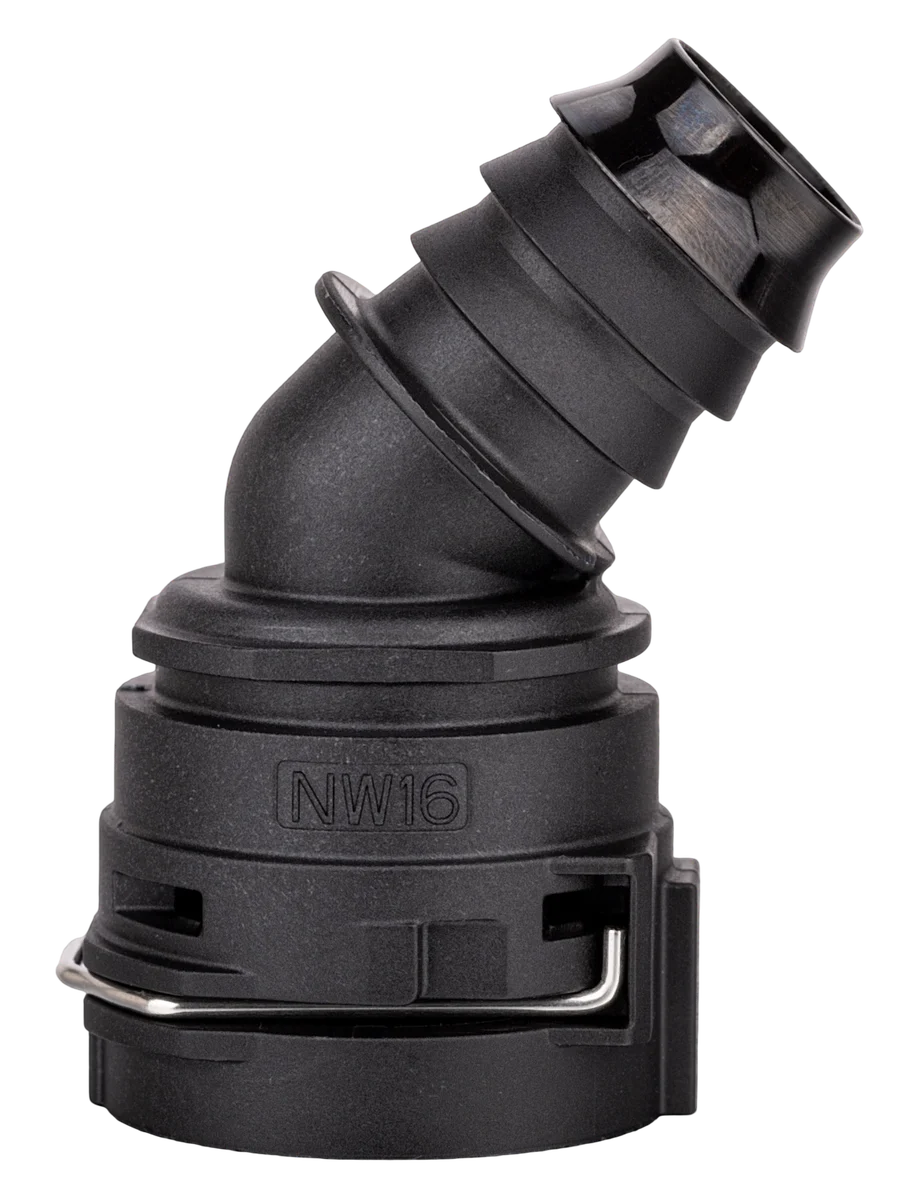

VDA NW16 - 45° - Ø18X1mm - COOLING
— Specifications
GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length55 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW16 mm
Outer Ø37.8 mm
StandardVDA
Fitting dim.22.3 mm
Min.22 mm
Max.22.6 mm
Male 2/2
Fir-tree
Inner Ø15.2 mm
Outer Ø21.8 mm
Fitting materialPlastic pipe
Fitting dim.16 mm
Tube min.15.8 mm
Tube max.16.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
