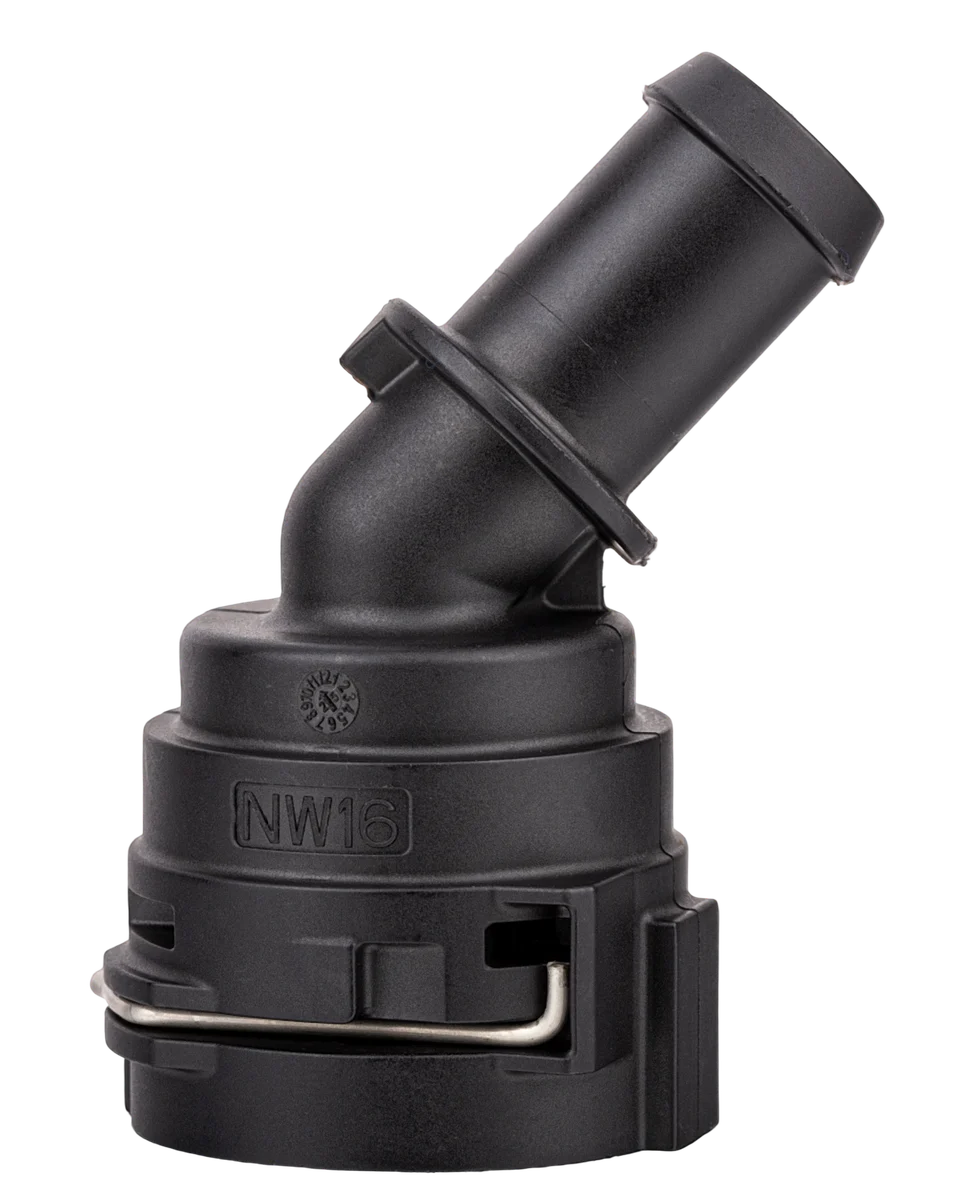

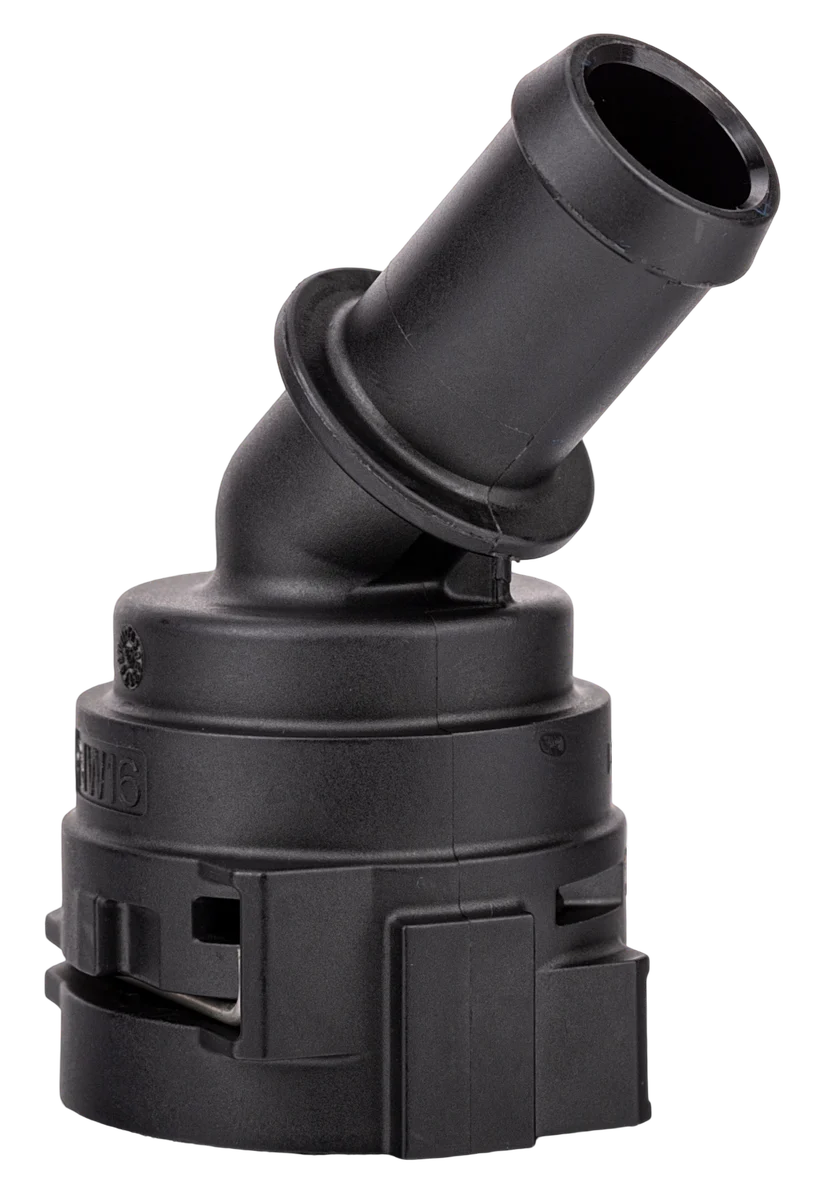

VDA NW16 - 45° - Rubber 16 - COOLING
VDA Quick coupling · NB13

VDA NW16 - 45° - Rubber 16 - COOLING

— Specifications

GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length50 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors

ask our engineers back to catalogue

— Interfaces · 2

Female  1/2 Quick Coupling Connector
Inner ØNW16 mm
Outer Ø37.8 mm
StandardVDA
Fitting dim.22.3 mm
Min.22 mm
Max.22.6 mm
Male  2/2 Rubber
Inner Ø12 mm
Outer Ø18 mm
Fitting materialRubber Hose
Fitting dim.16 mm
Tube min.15.8 mm
Tube max.16.1 mm

— Solutions · Applications

Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
