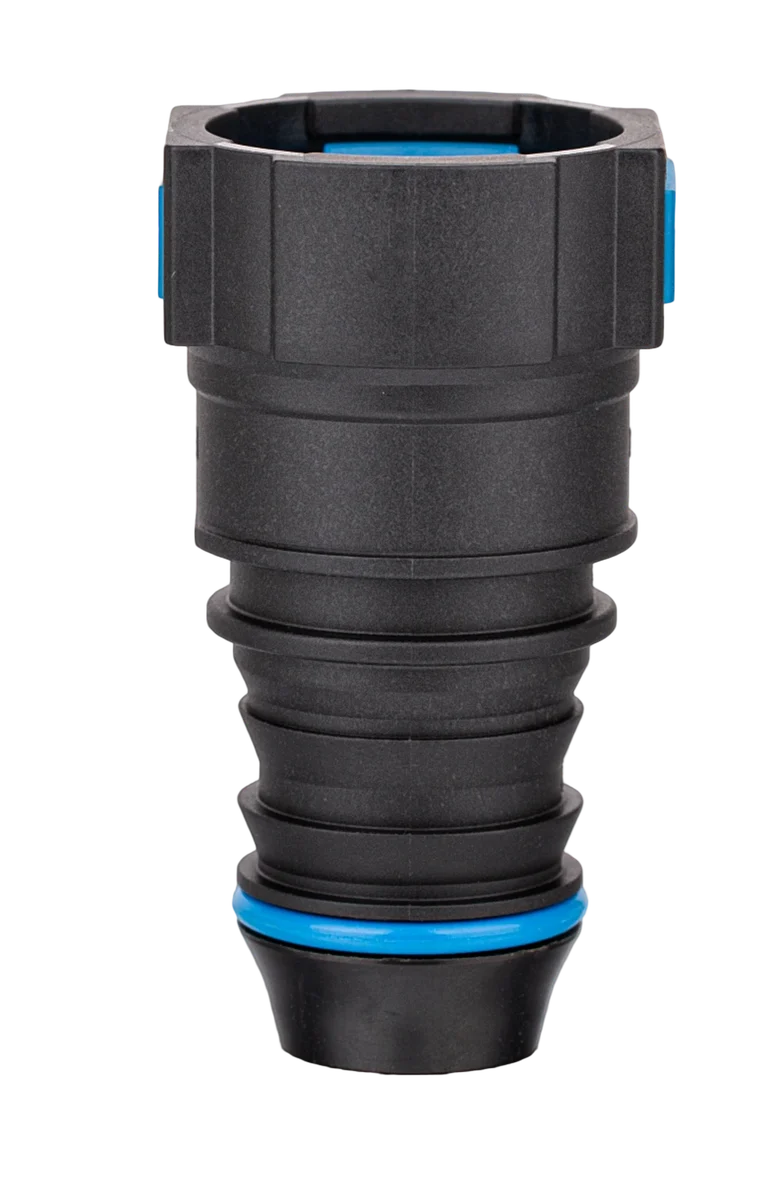

SAE Quick coupling
·
MU1JS

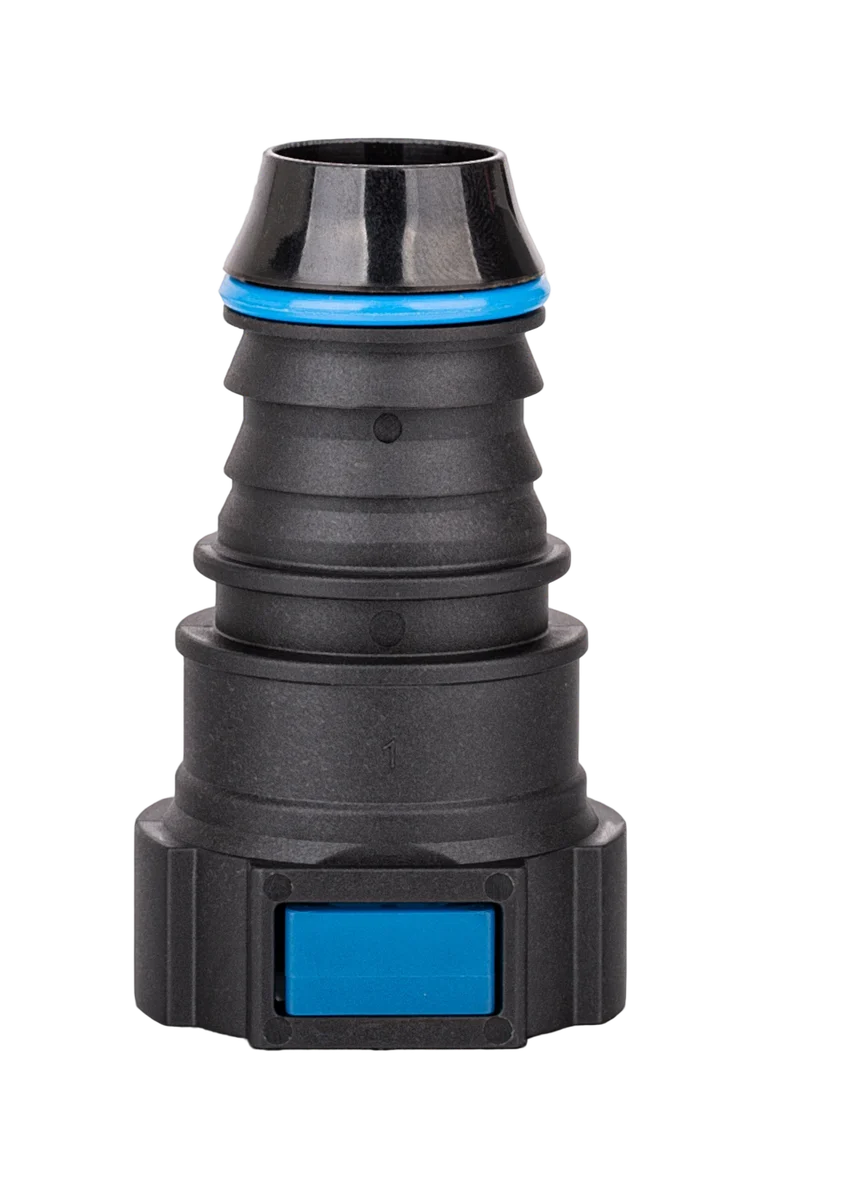

SAE 18.9 - 0° - Ø18.5x1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length59 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 18.9 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø18.9 mm
Outer Ø35.5 mm
StandardSAE
Fitting dim.18.9 mm
Min.18.8 mm
Max.19 mm
Male 2/2
Fir-tree
Inner Ø15 mm
Outer Ø21.9 mm
Fitting materialPlastic pipe
Fitting dim.16.5 mm
Tube min.16 mm
Tube max.16.8 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
