SAE Quick coupling
·
M51

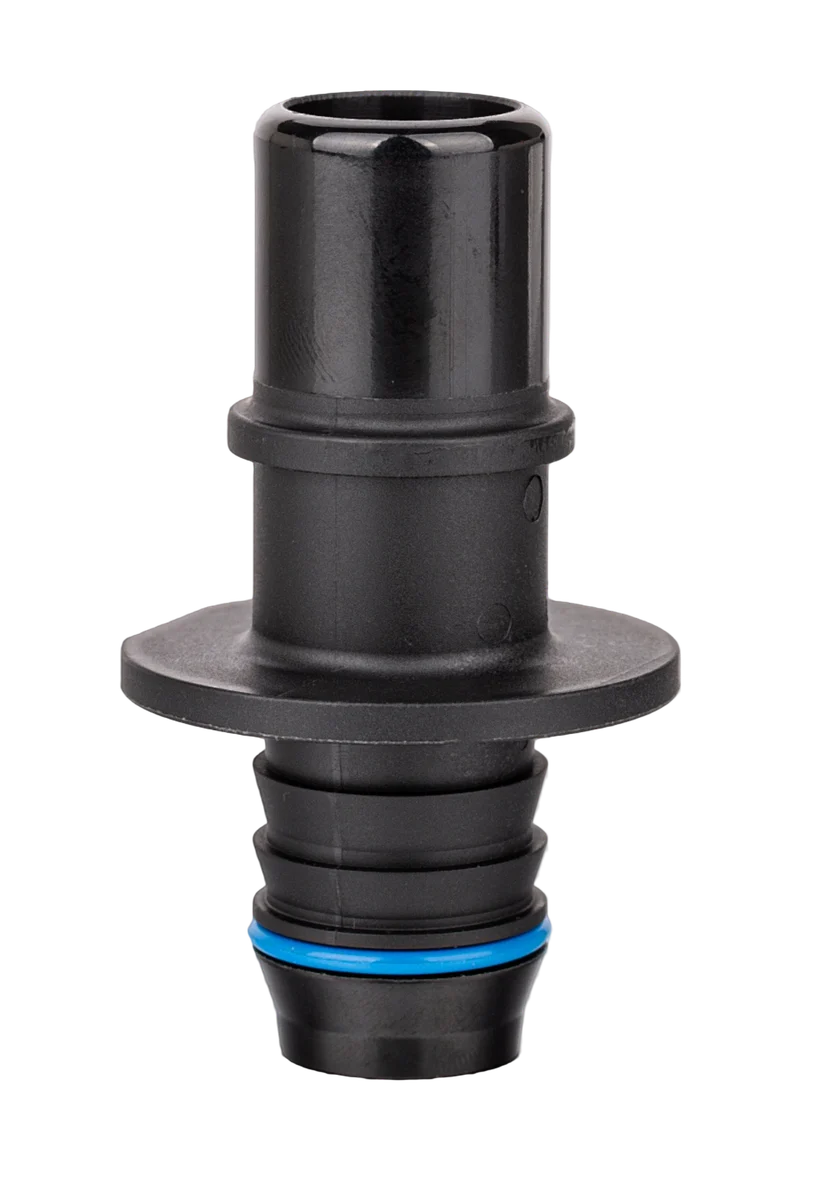

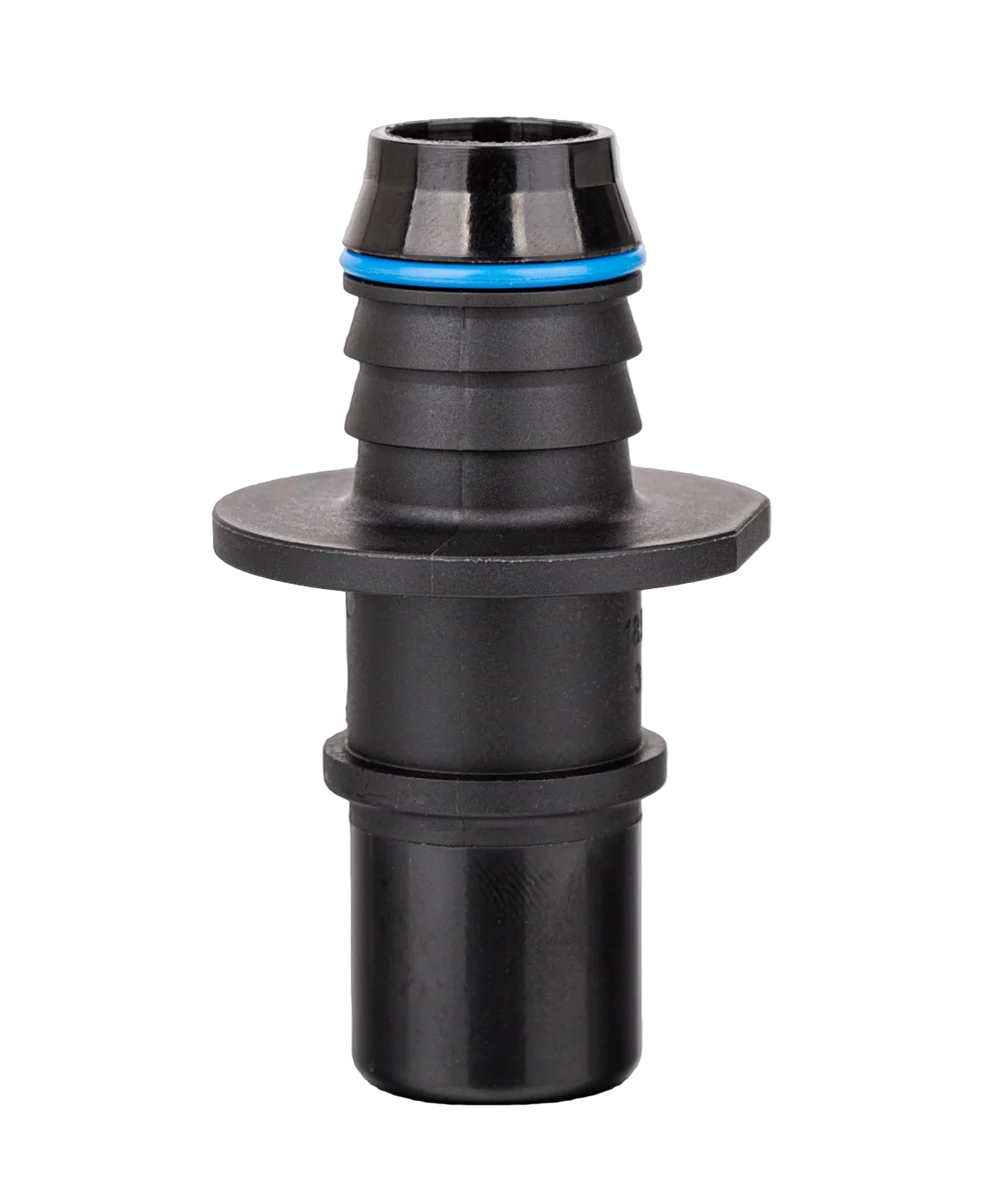

MALE SAE 18.9 - 0° - Ø17X1mm - SCR UREA
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length61.75 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 18.9 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø18.9 mm
Outer Ø35.9 mm
StandardSAE
Fitting dim.18.9 mm
Min.18.8 mm
Max.19 mm
Male 2/2
Fir-tree
Inner Ø13.2 mm
Outer Ø19 mm
Fitting materialPlastic pipe
Fitting dim.15 mm
Tube min.14.7 mm
Tube max.15.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
