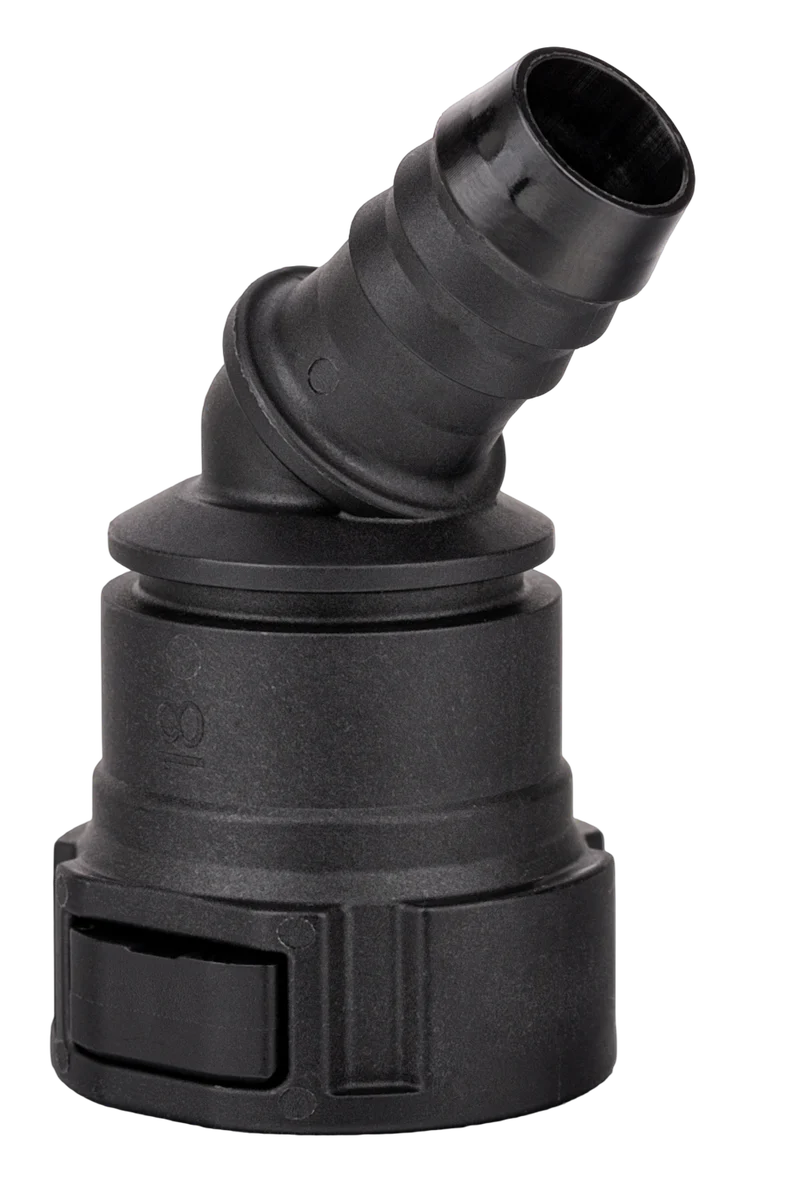

SAE Quick coupling
·
LU7

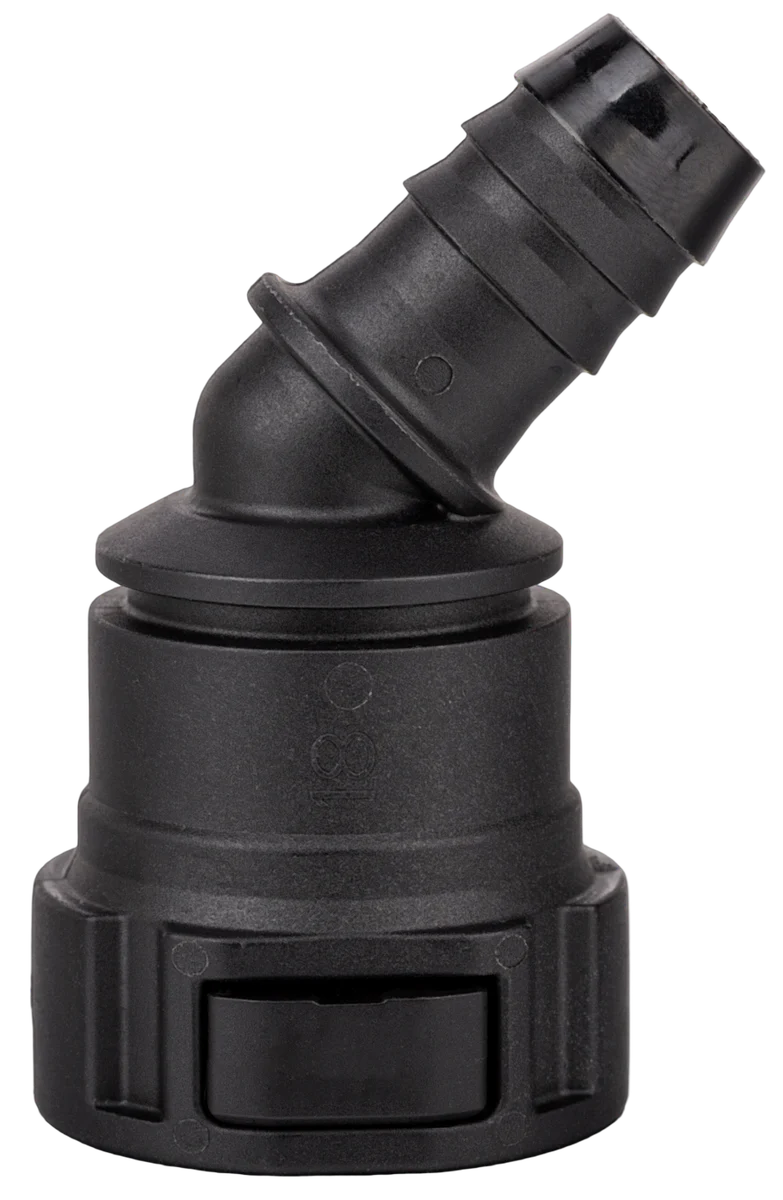

SAE 18.0 - 45° - Ø18x2mm - SCR UREA
— Specifications
GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length60.91 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 18.0 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø18 mm
Outer Ø34 mm
StandardSAE
Fitting dim.18 mm
Min.17.9 mm
Max.18.1 mm
Male 2/2
Fir-tree
Inner Ø10.5 mm
Outer Ø14.9 mm
Fitting materialPlastic pipe
Fitting dim.12 mm
Tube min.11.7 mm
Tube max.12.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
