SAE Quick coupling
·
LU4

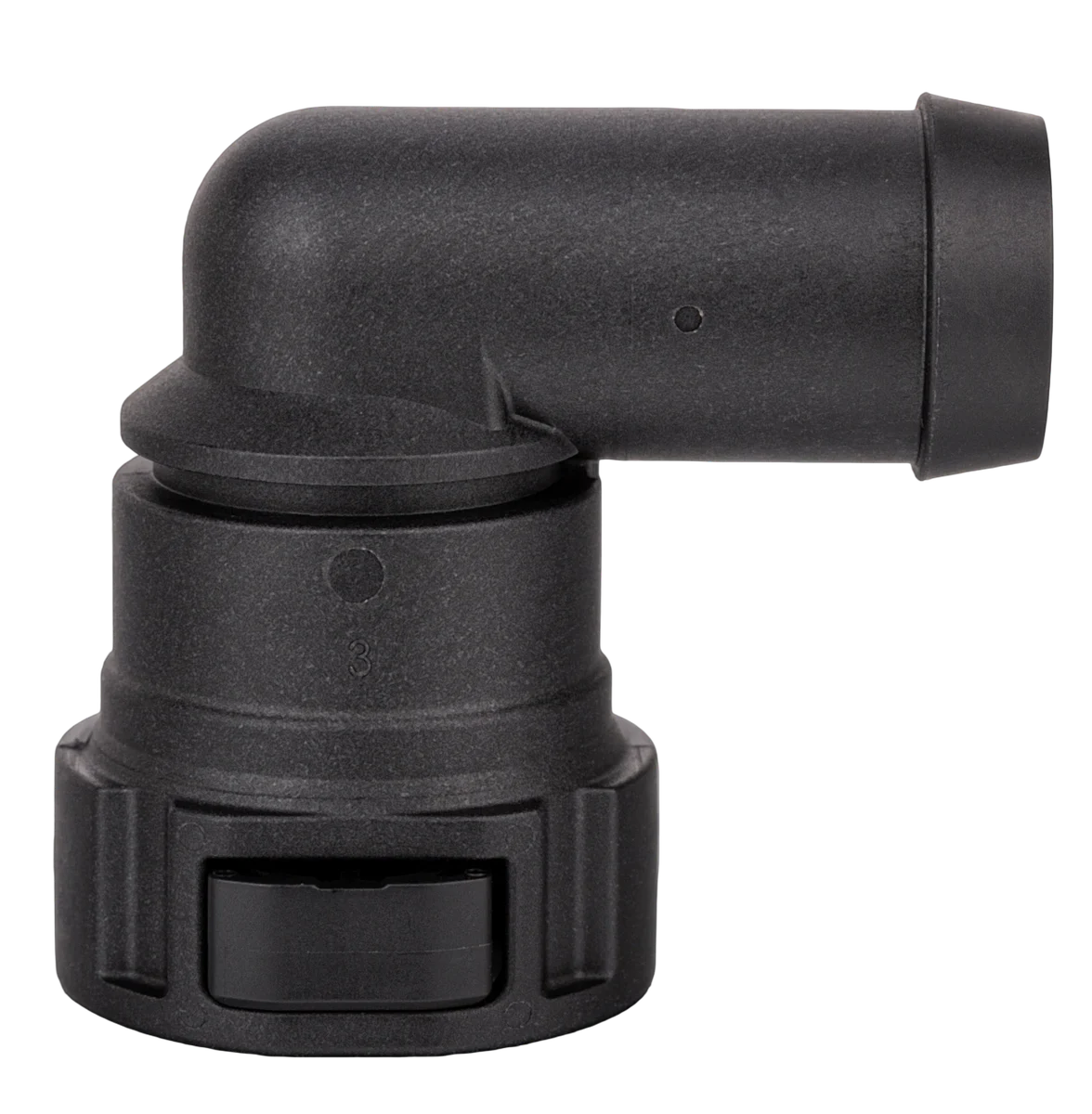

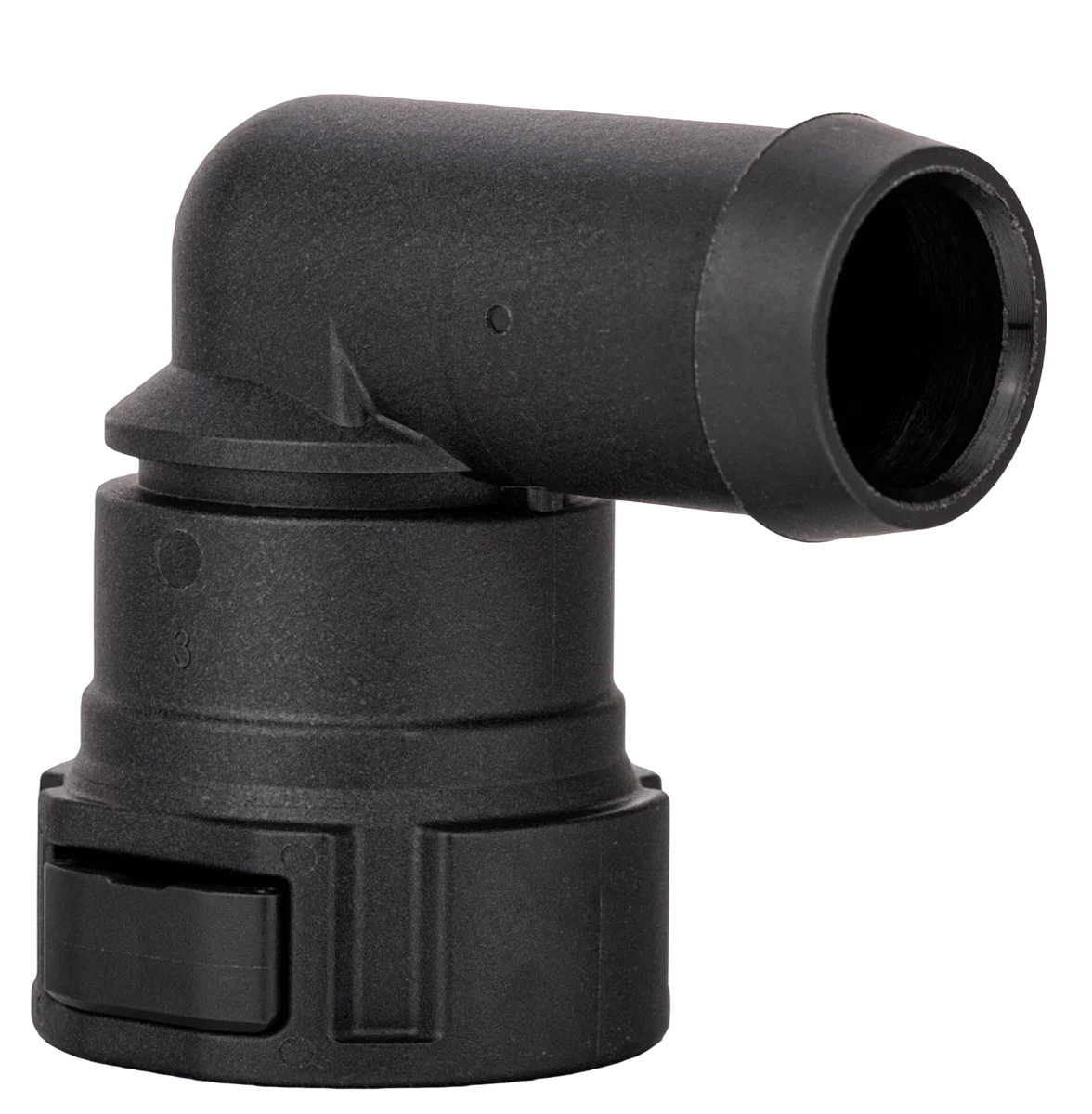

SAE 18.0 - 90° - Rubber 18 - COOLING
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length39 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 18.0 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø18 mm
Outer Ø34 mm
StandardSAE
Fitting dim.18 mm
Min.17.9 mm
Max.18.1 mm
Male 2/2
Rubber
Inner Ø15 mm
Outer Ø19 mm
Fitting materialRubber Hose
Fitting dim.18 mm
Tube min.17.9 mm
Tube max.18.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
