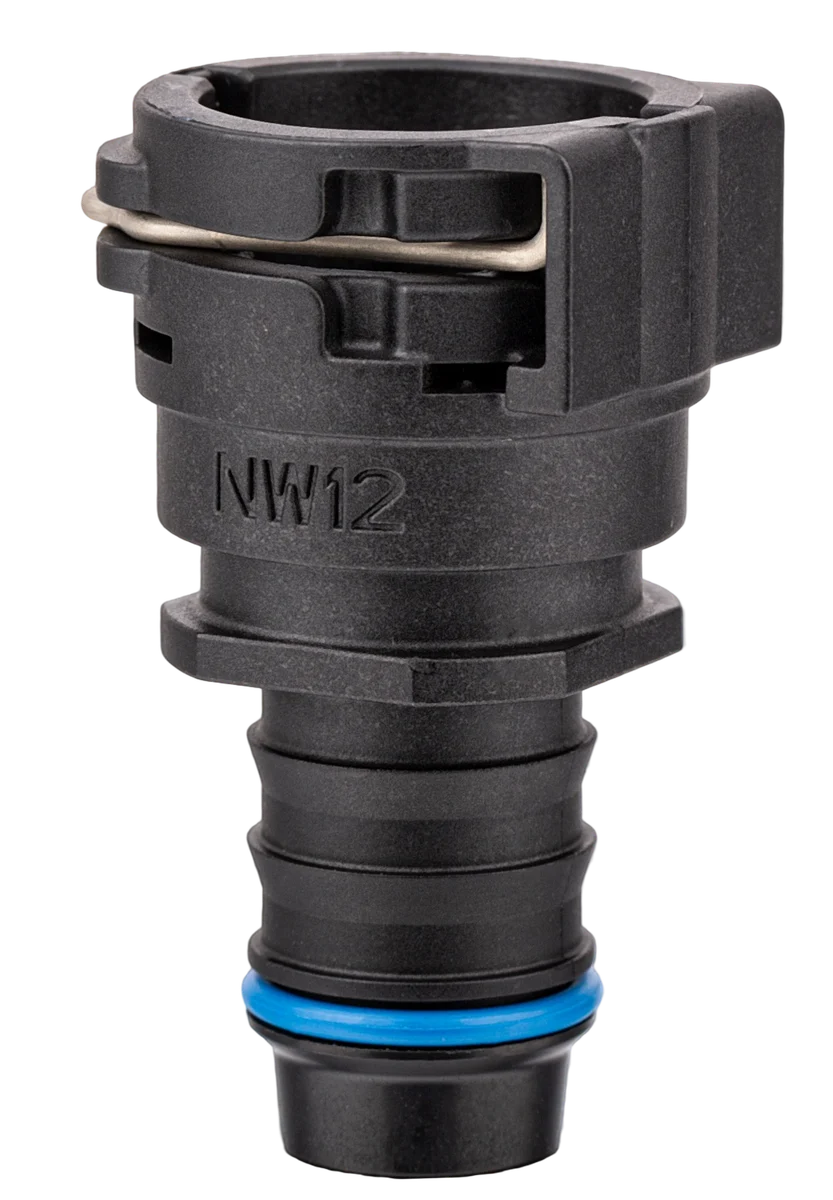

VDA Quick coupling
·
JA5
VDA NW12 - 0° - Ø16X1mm - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length53.2 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW12 mm
Outer Ø29.85 mm
StandardVDA
Fitting dim.16.3 mm
Min.16 mm
Max.16.3 mm
Male 2/2
Fir-tree
Inner Ø12 mm
Outer Ø17.47 mm
Fitting materialPlastic pipe
Fitting dim.14 mm
Tube min.13.7 mm
Tube max.14.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
