VDA Quick coupling
·
JA2

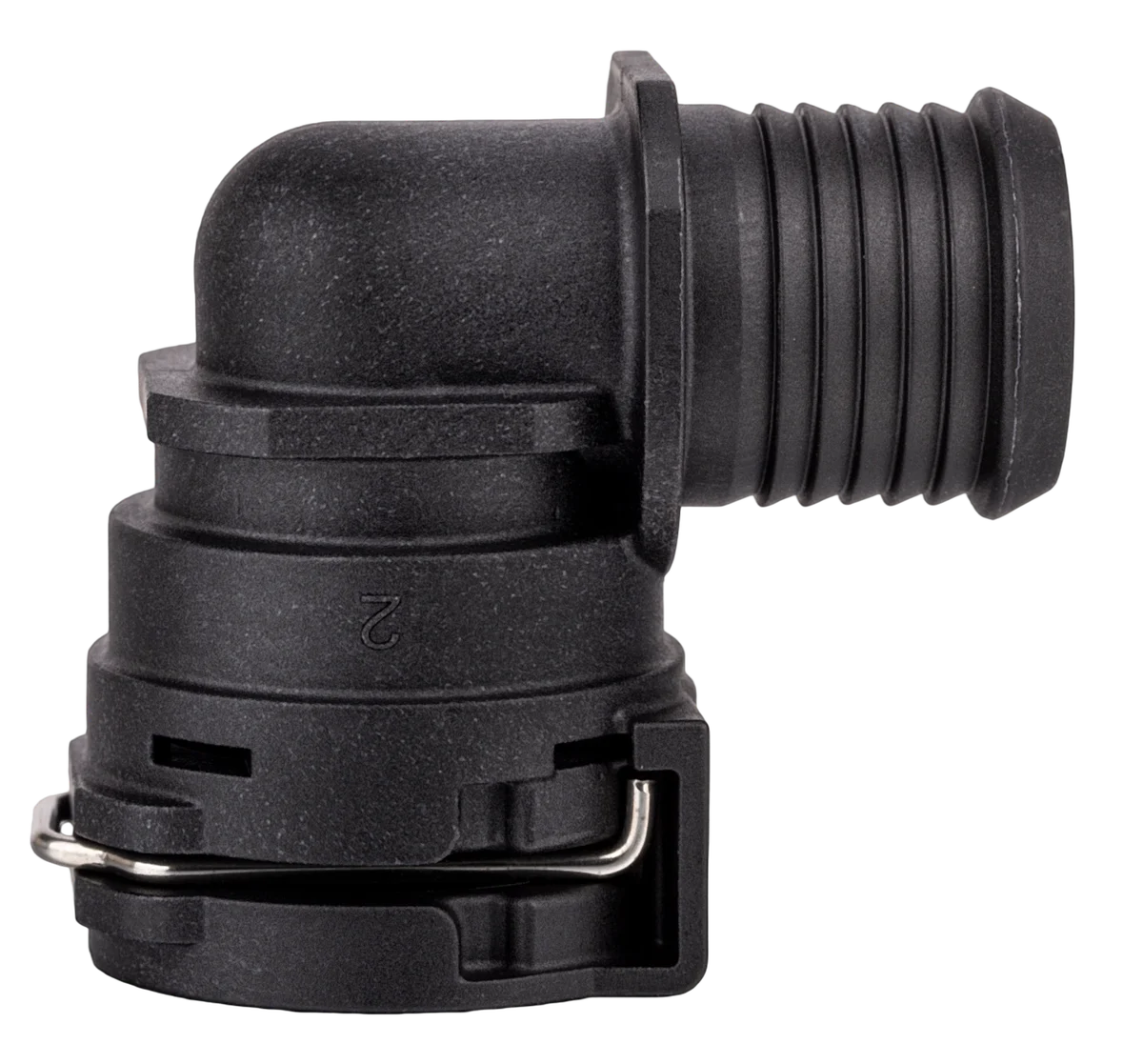

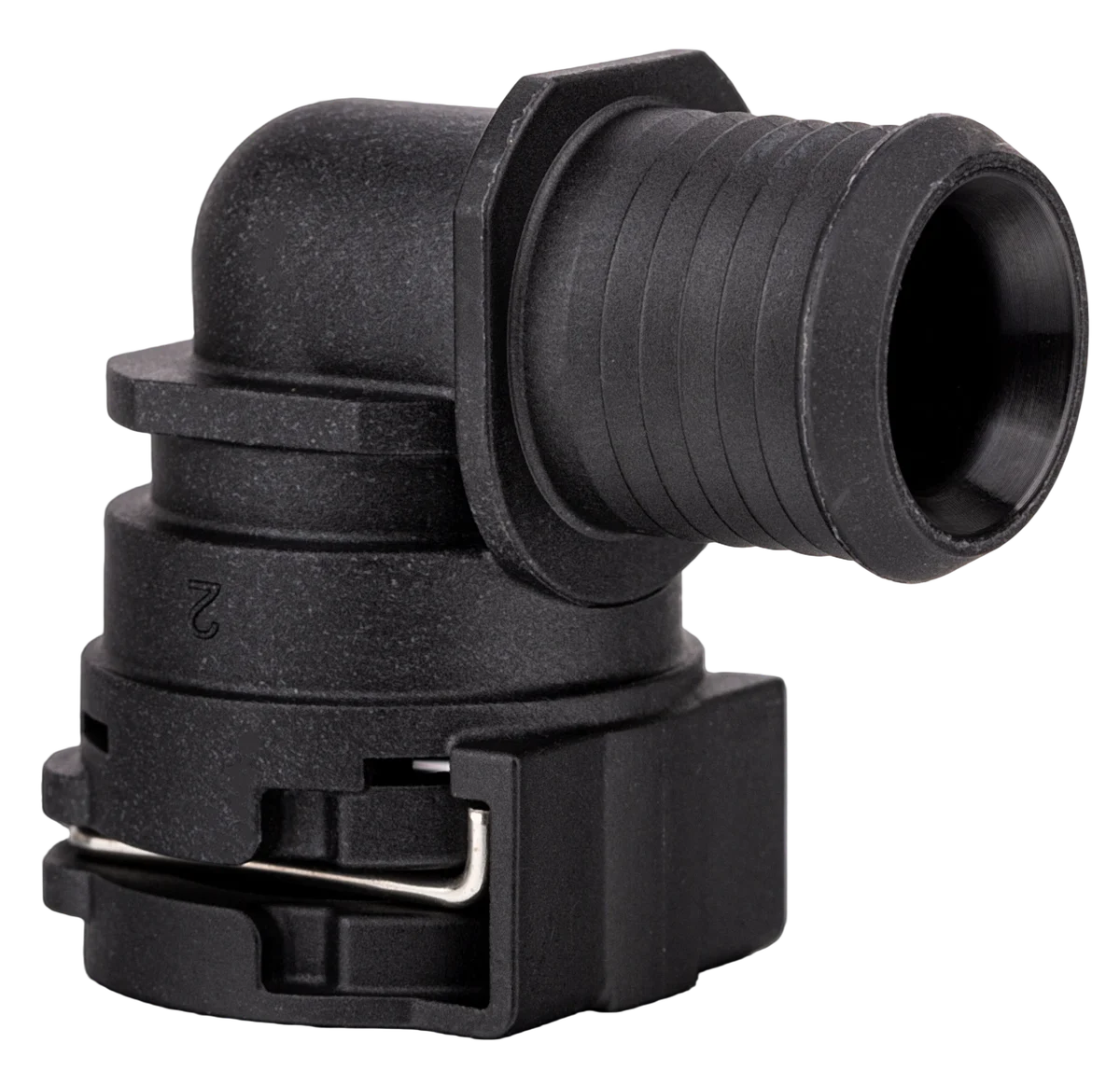

VDA NW12 - 90° - Rubber 18 - COOLING
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length42 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW12 mm
Outer Ø29.85 mm
StandardVDA
Fitting dim.16.3 mm
Min.16 mm
Max.16.3 mm
Male 2/2
Rubber
Inner Ø12.15 mm
Outer Ø20.5 mm
Fitting materialRubber Hose
Fitting dim.18 mm
Tube min.17.5 mm
Tube max.18.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
