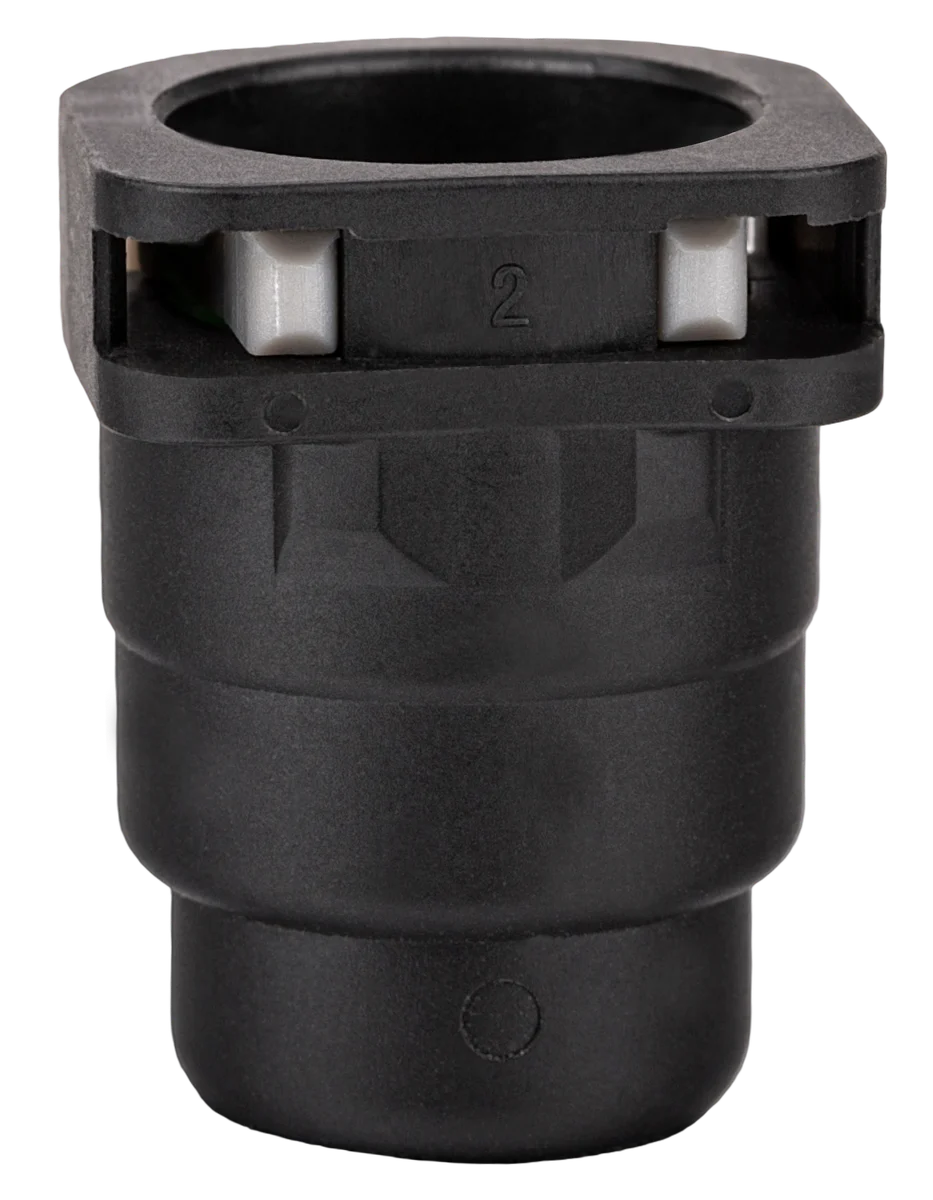

SAE Quick coupling
·
HD1

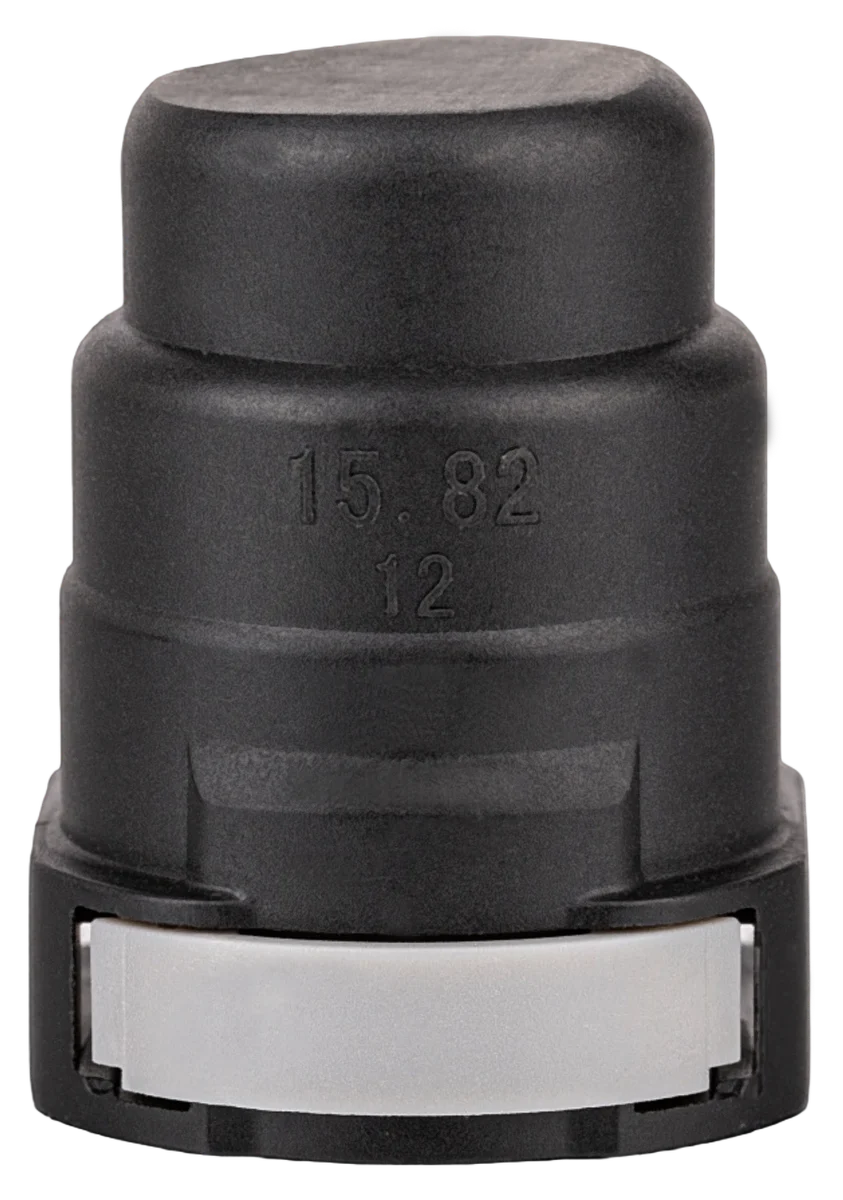

SAE 15.82 - CAP
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length37 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 15.82 Quick Connectors
— Interfaces · 1
Female 1/1
SAE
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.81 mm
Max.15.83 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
