SAE Quick coupling
·
H9

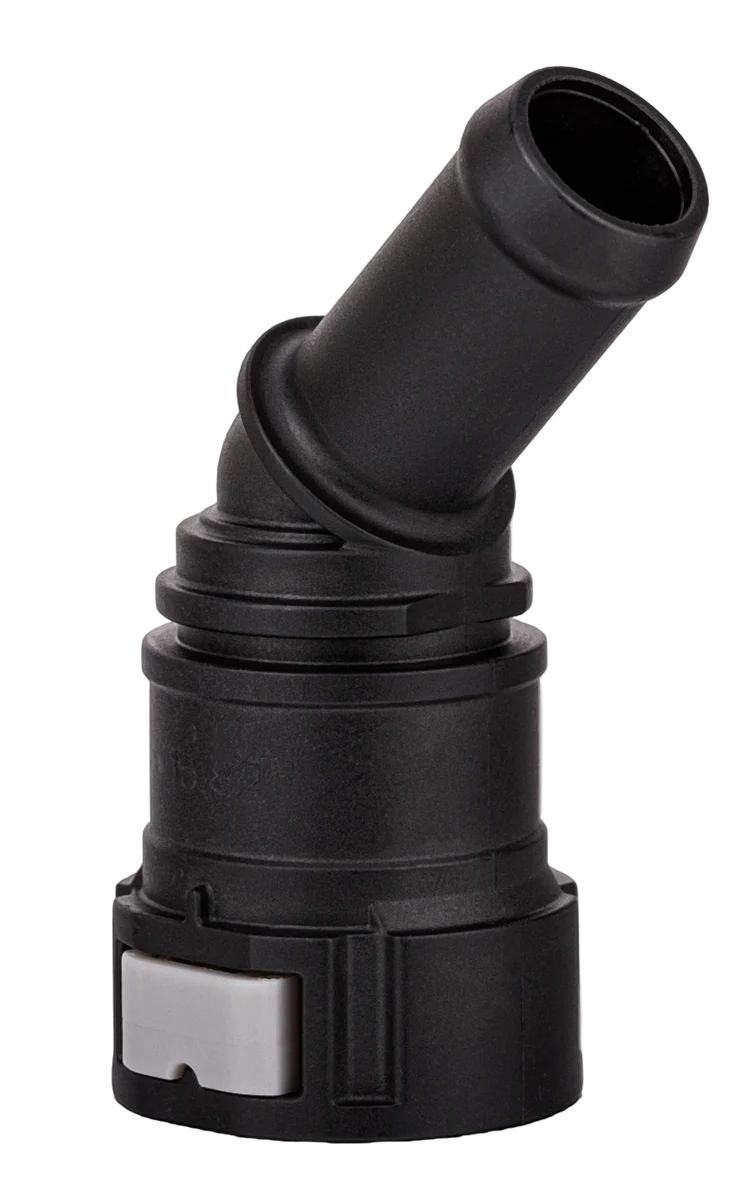

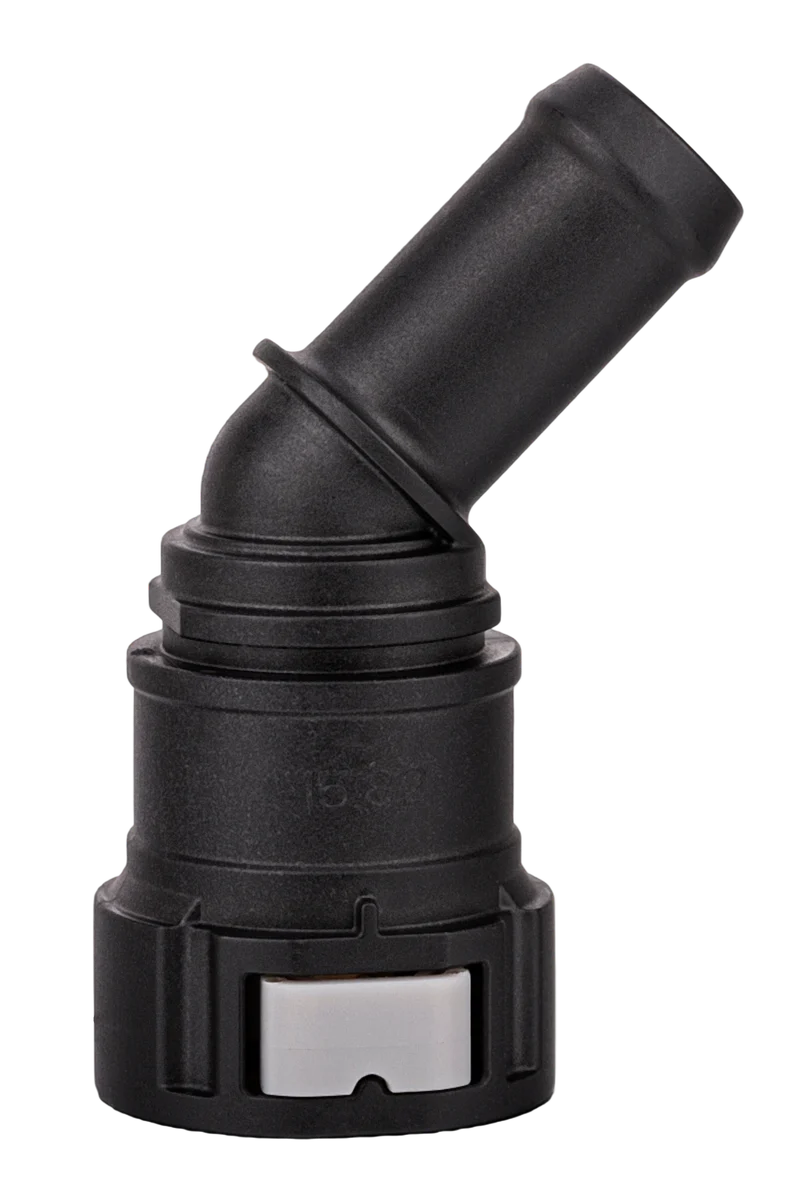

SAE 15.82 - 45° - Rubber 15 - FUEL (LIQUID)
— Specifications
GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length39.5 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 15.82 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.81 mm
Max.15.83 mm
Male 2/2
Rubber
Inner Ø11.65 mm
Outer Ø16.3 mm
Fitting materialRubber Hose
Fitting dim.15 mm
Tube min.14.9 mm
Tube max.15.1 mm
