SAE Quick coupling
·
H5

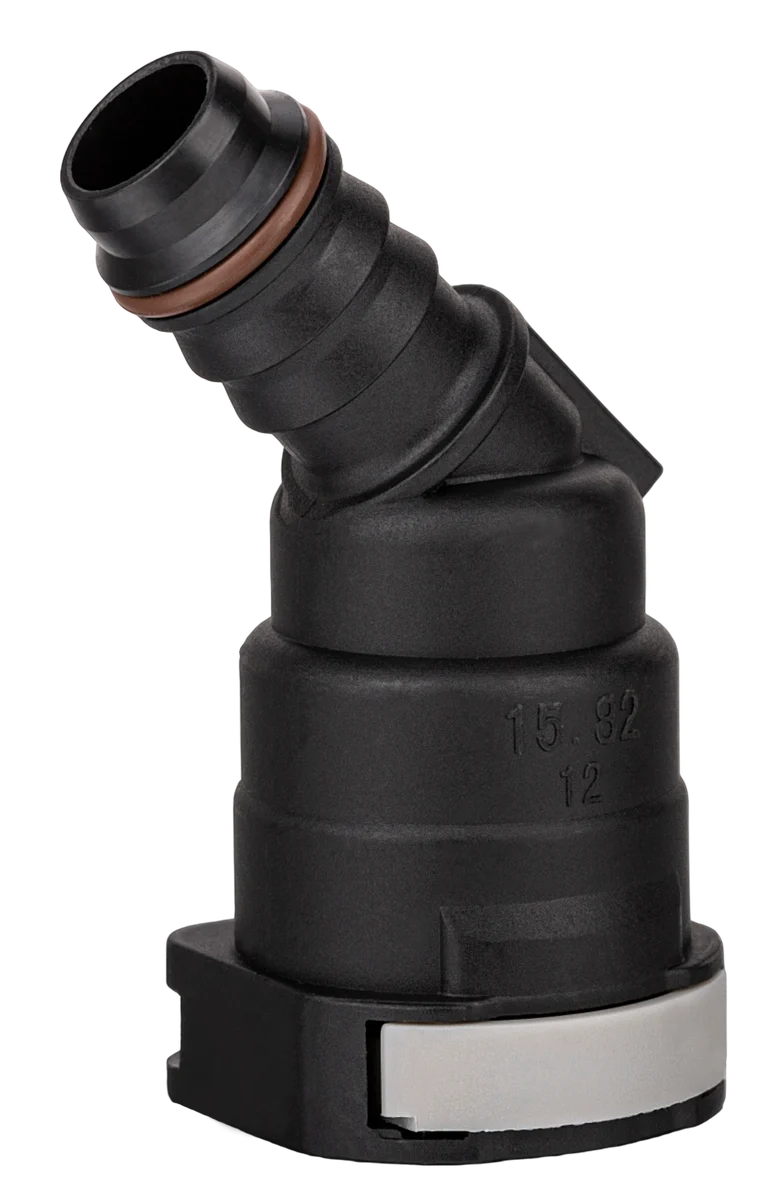

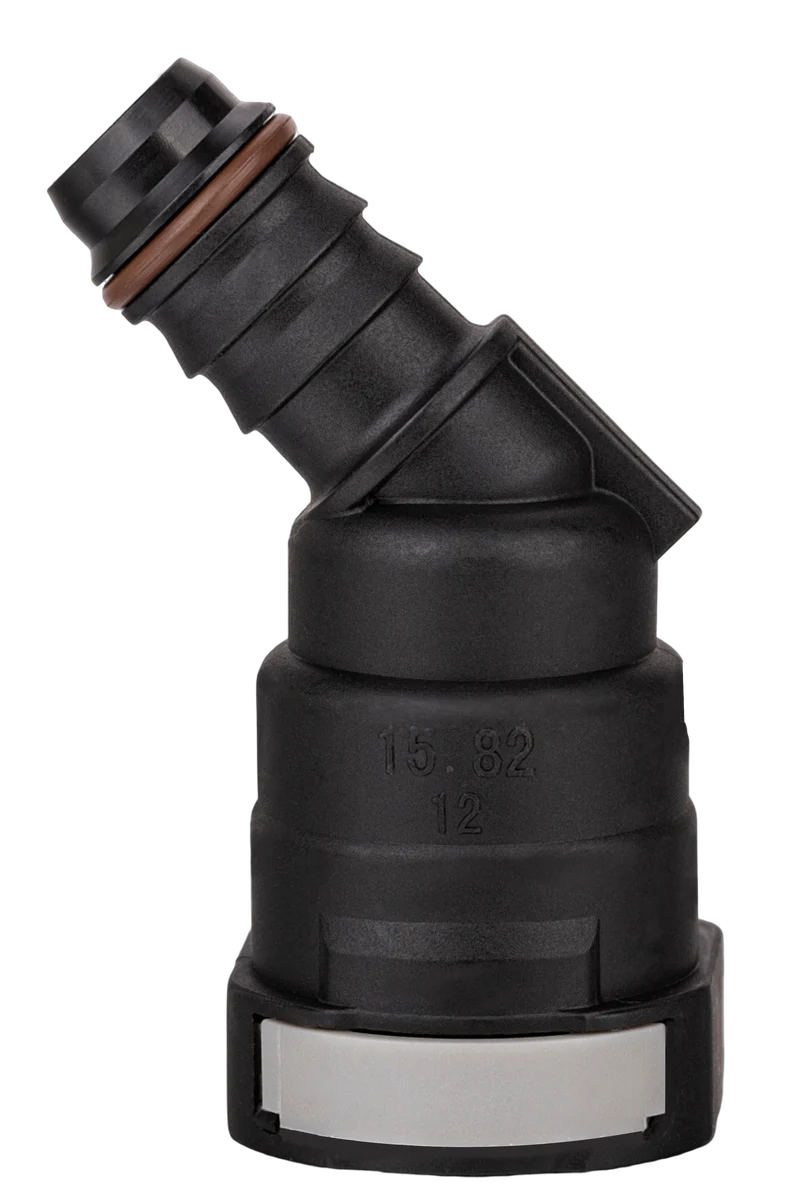

SAE 15.82 - 45° - Ø15X1.5mm - FUEL (LIQUID)
— Specifications
GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length37.2 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 15.82 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø15.82 mm
Outer Ø35.43 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.81 mm
Max.15.83 mm
Male 2/2
Fir-tree
Inner Ø12 mm
Outer Ø14.7 mm
Fitting materialPlastic pipe
Fitting dim.12 mm
Tube min.11.7 mm
Tube max.12.3 mm
