SAE Quick coupling
·
H11

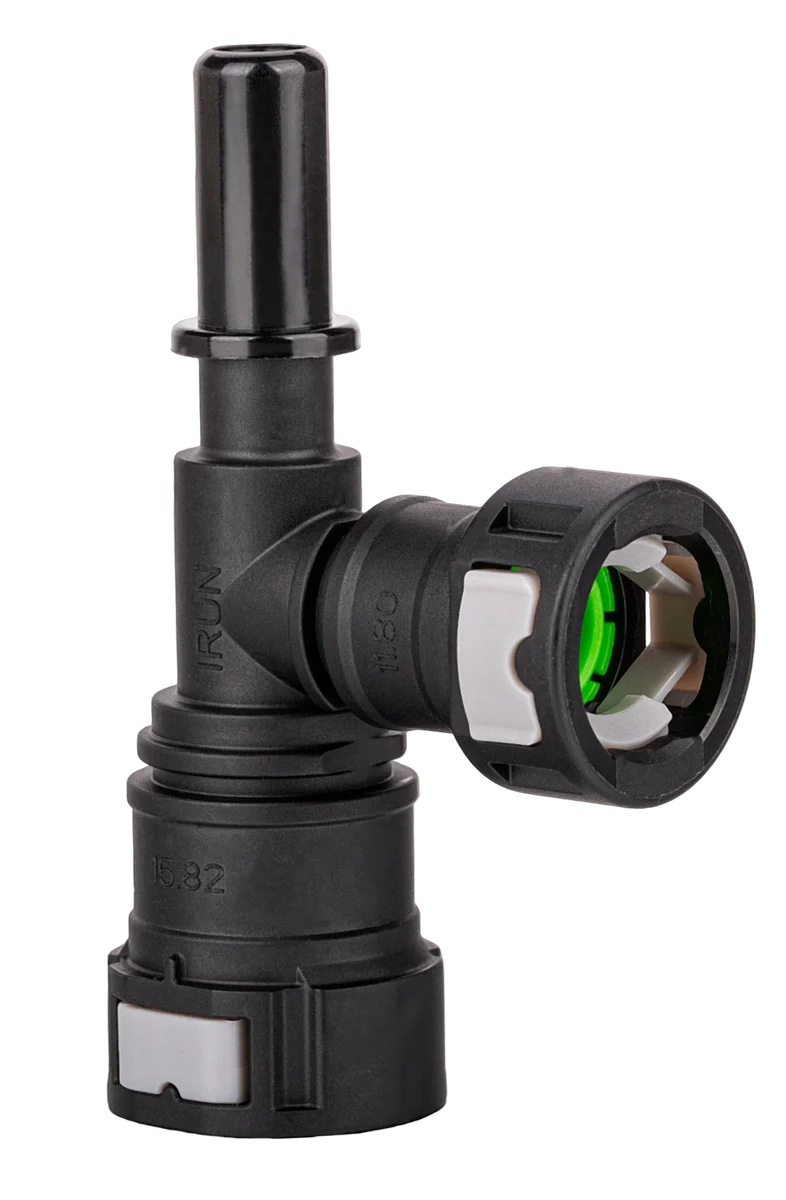

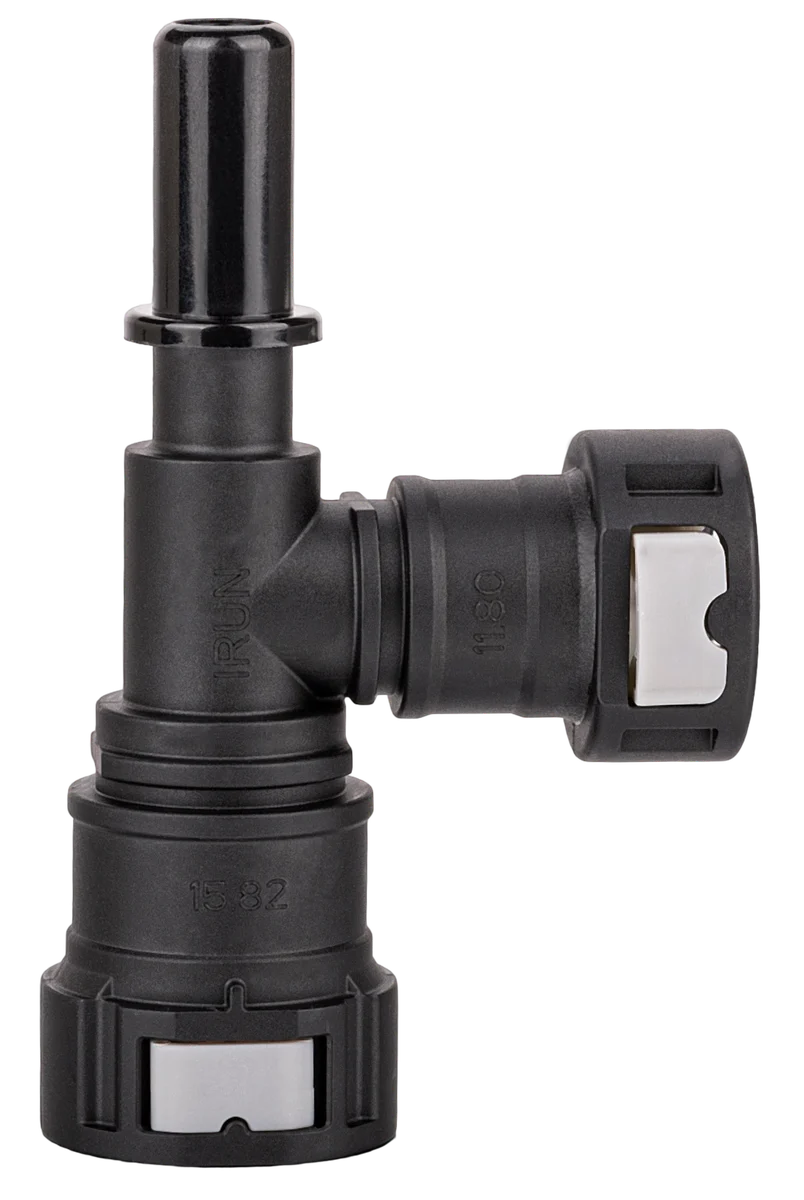

SAE 11.80 - 3 WAY - SAE 15.82 - MALE SAE 11.80
— Specifications
Geometry3 WAY T Shape
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length92.82 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 15.82 Quick Connectors
— Interfaces · 3
Female 1/3
SAE
Inner Ø11.8 mm
Outer Ø28.2 mm
StandardSAE
Fitting dim.11.8 mm
Min.11.7 mm
Max.11.9 mm
Female 2/3
SAE
Inner Ø15.82 mm
Outer Ø30.3 mm
StandardSAE
Fitting dim.15.82 mm
Min.15.81 mm
Max.15.83 mm
Male 3/3
SAE
Inner Ø7.75 mm
Outer Ø11.8 mm
StandardSAE
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
