VDA Quick coupling
·
GA4

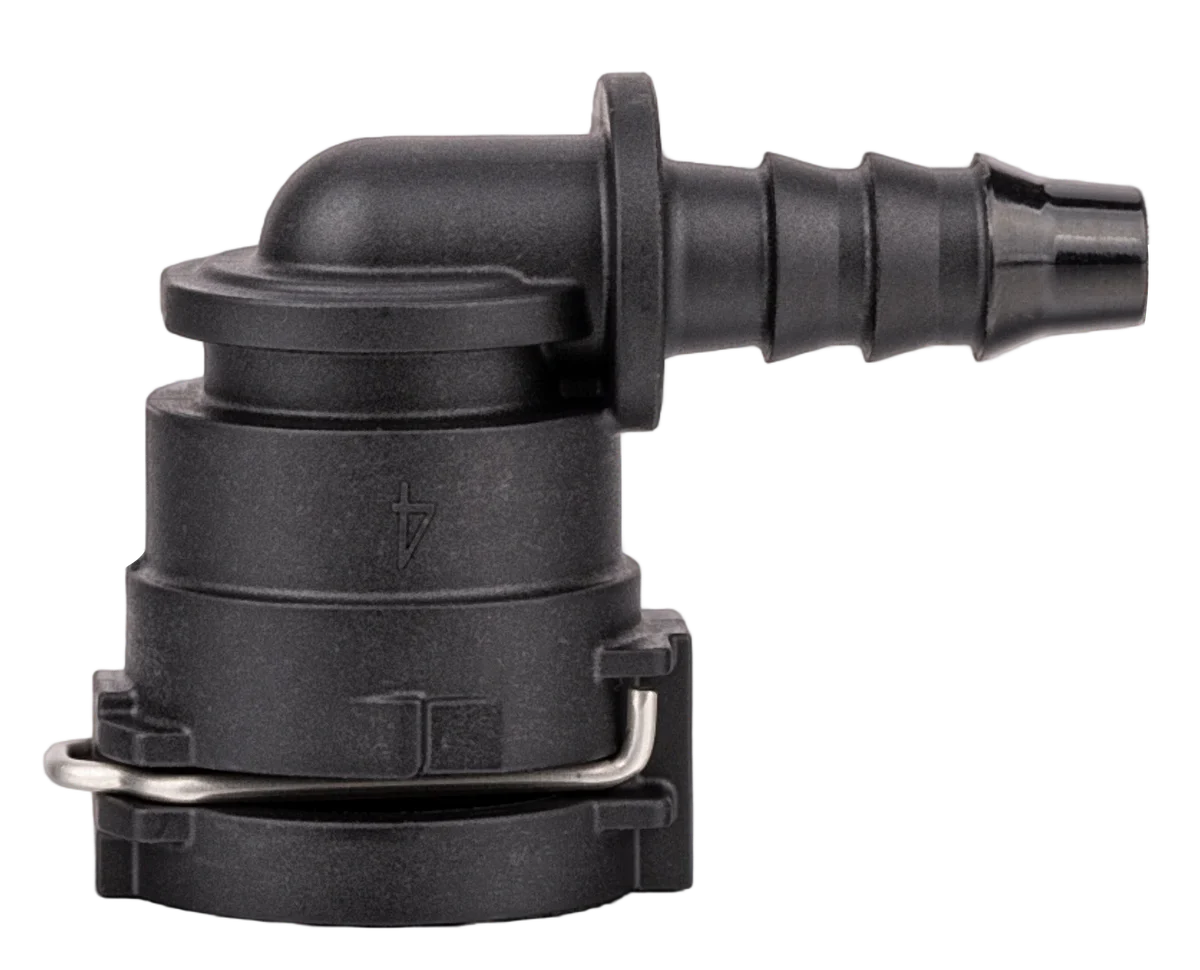

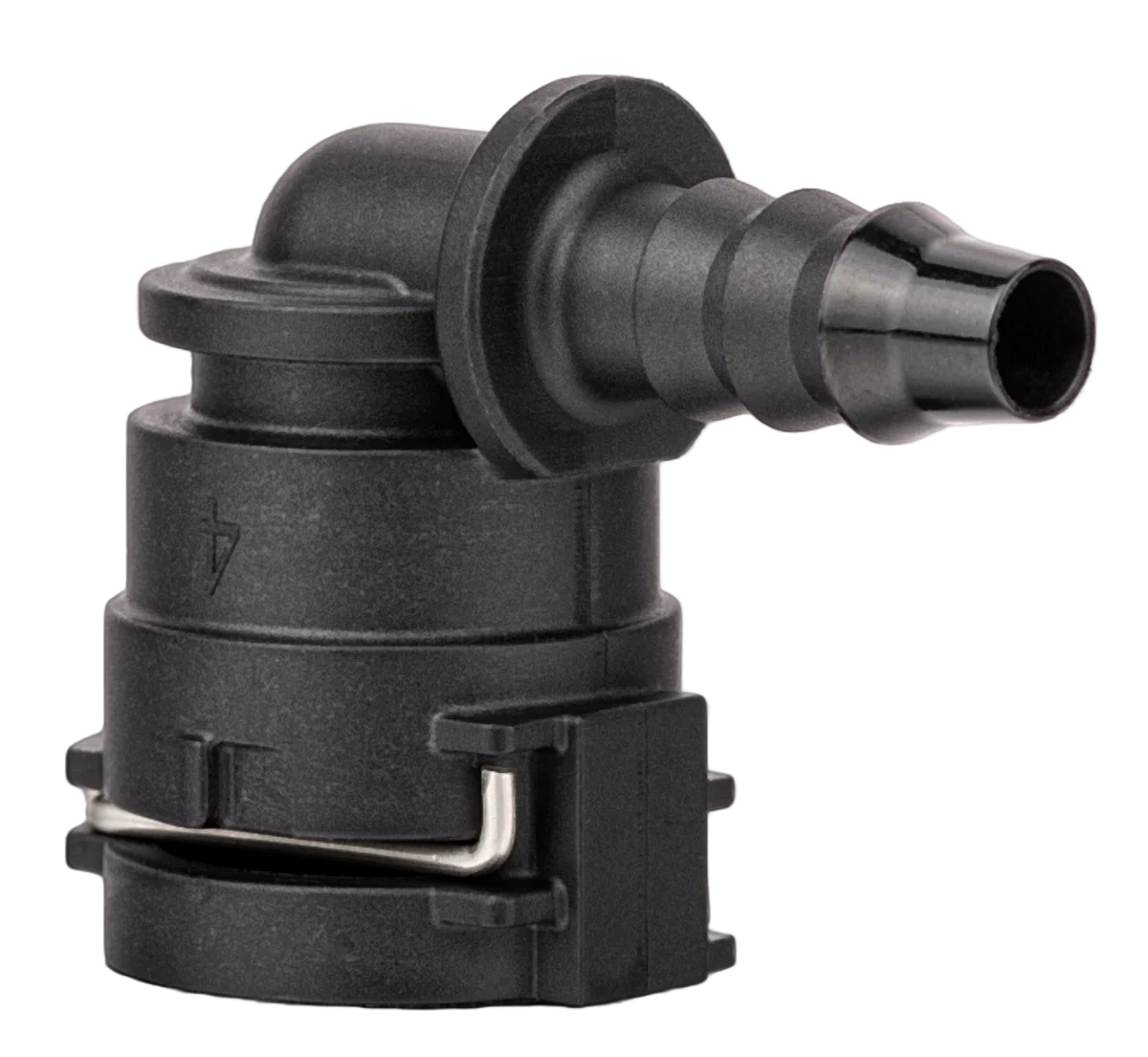

VDA NW6 - 90° - Ø8x1mm - COOLING
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length32.4 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW6 mm
Outer Ø23.7 mm
StandardVDA
Fitting dim.10.4 mm
Min.10.3 mm
Max.10.5 mm
Male 2/2
Fir-tree
Inner Ø4.8 mm
Outer Ø8.46 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.8 mm
Tube max.6.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
