VDA Quick coupling
·
GA1

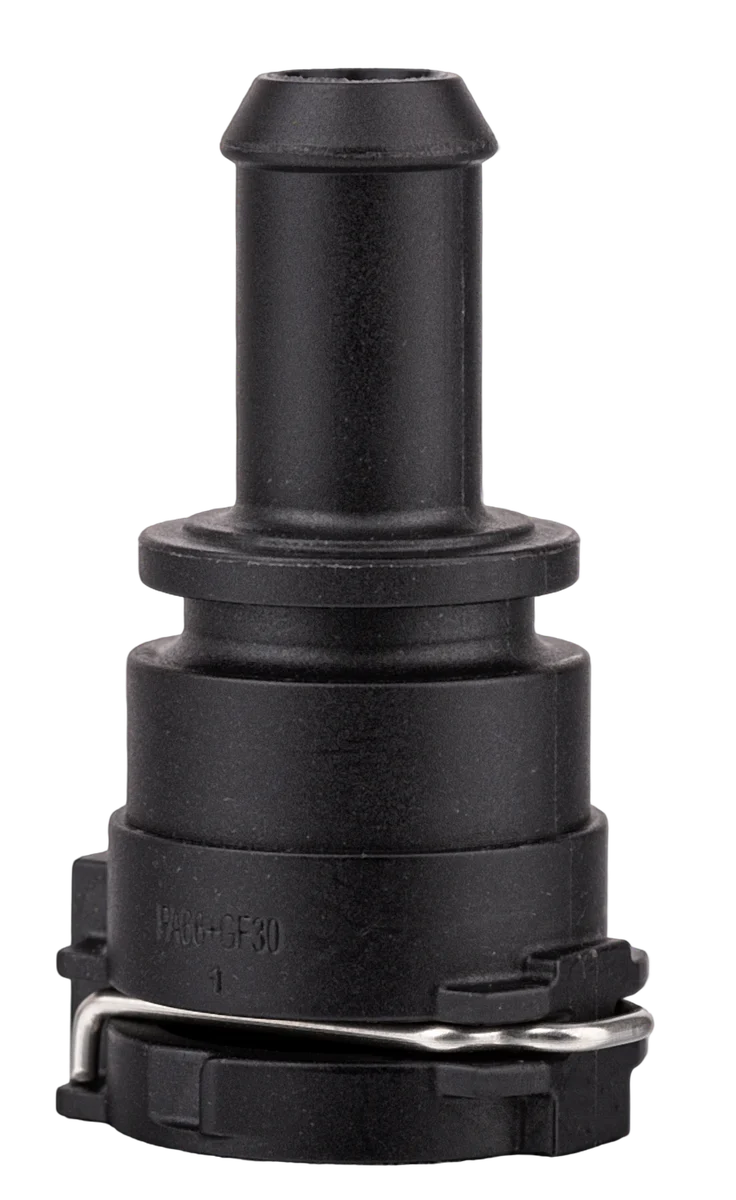

VDA NW6 - 0° - Rubber 10 - COOLING
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure3.5 bar
Total length43.35 mm
StandardVDA
FamilyVDA Quick coupling
CategoryVDA Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner ØNW6 mm
Outer Ø23.7 mm
StandardVDA
Fitting dim.10.4 mm
Min.10.3 mm
Max.10.5 mm
Male 2/2
Rubber
Inner Ø6.2 mm
Outer Ø11.3 mm
Fitting materialRubber Hose
Fitting dim.10 mm
Tube min.9.5 mm
Tube max.10 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Combustion Air Intake/Induction
Battery Energy Storage System
Thermal Management System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
