SAE Quick coupling
·
G18

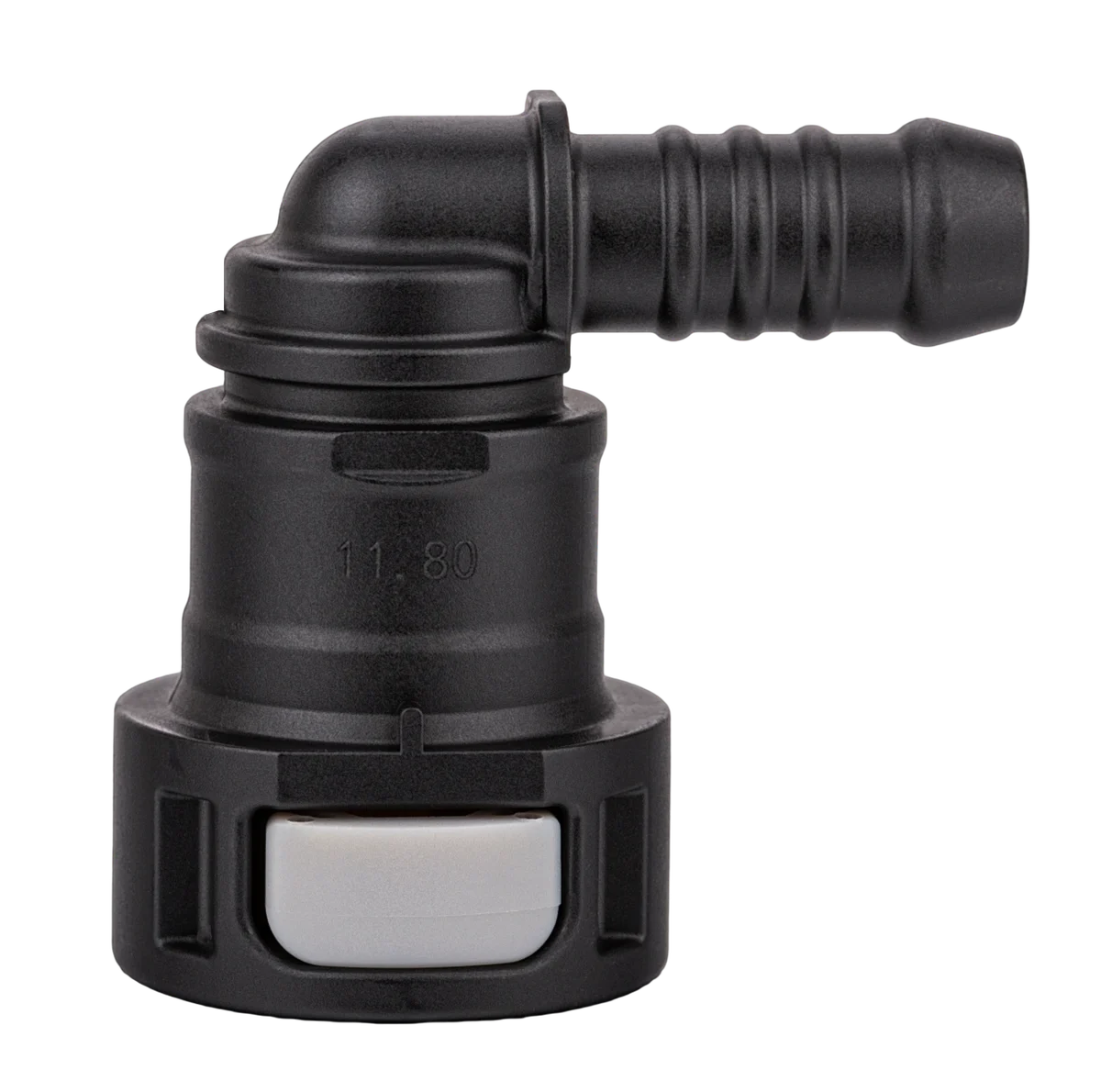

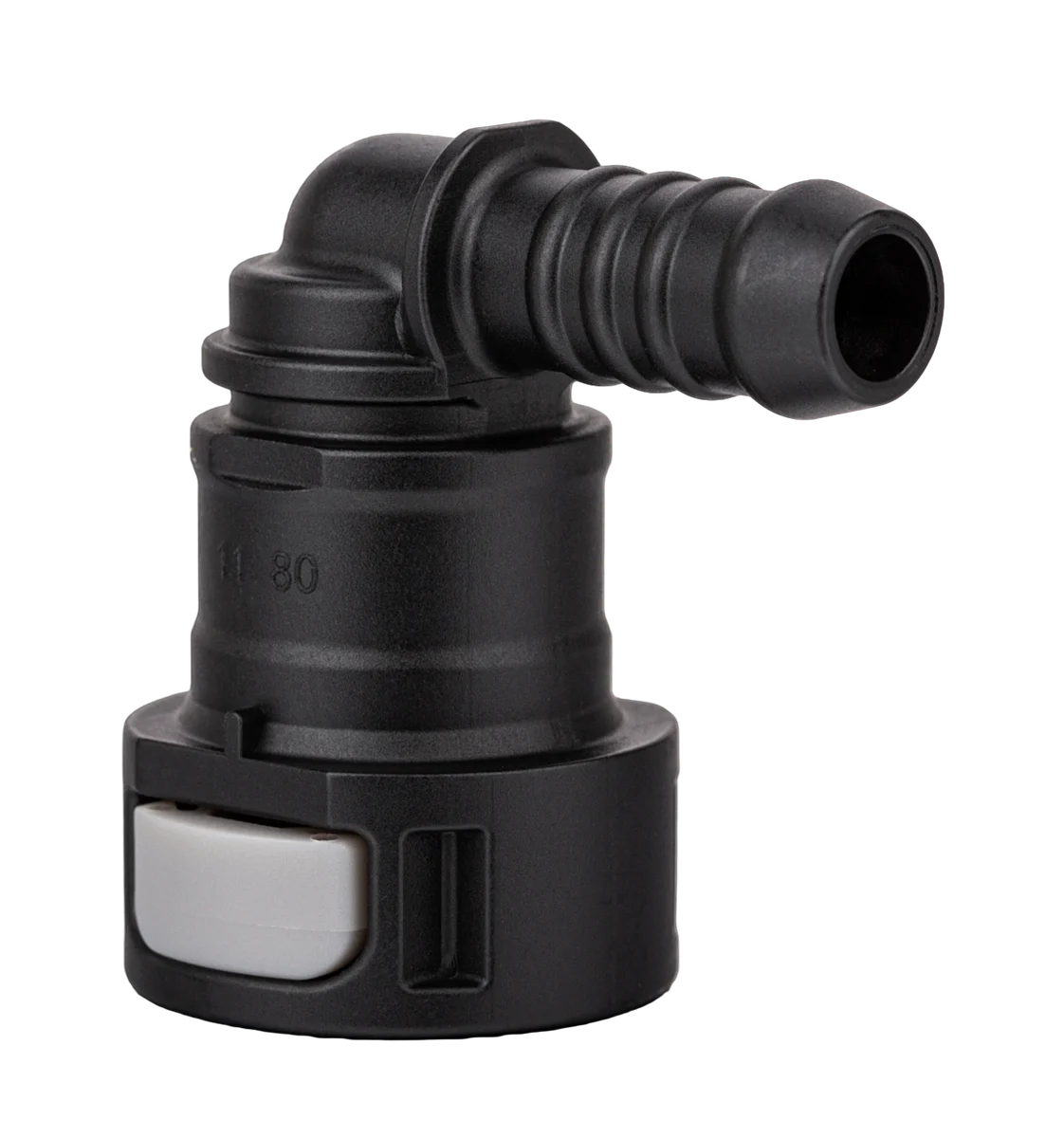

SAE 11.80 - 90° - Rubber 10 - FUEL (LIQUID)
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length37.5 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 11.80 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø11.8 mm
Outer Ø28.4 mm
StandardSAE
Fitting dim.11.8 mm
Min.11.7 mm
Max.11.9 mm
Male 2/2
Rubber
Inner Ø7 mm
Outer Ø10.9 mm
Fitting materialRubber Hose
Fitting dim.10 mm
Tube min.9.9 mm
Tube max.10.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
