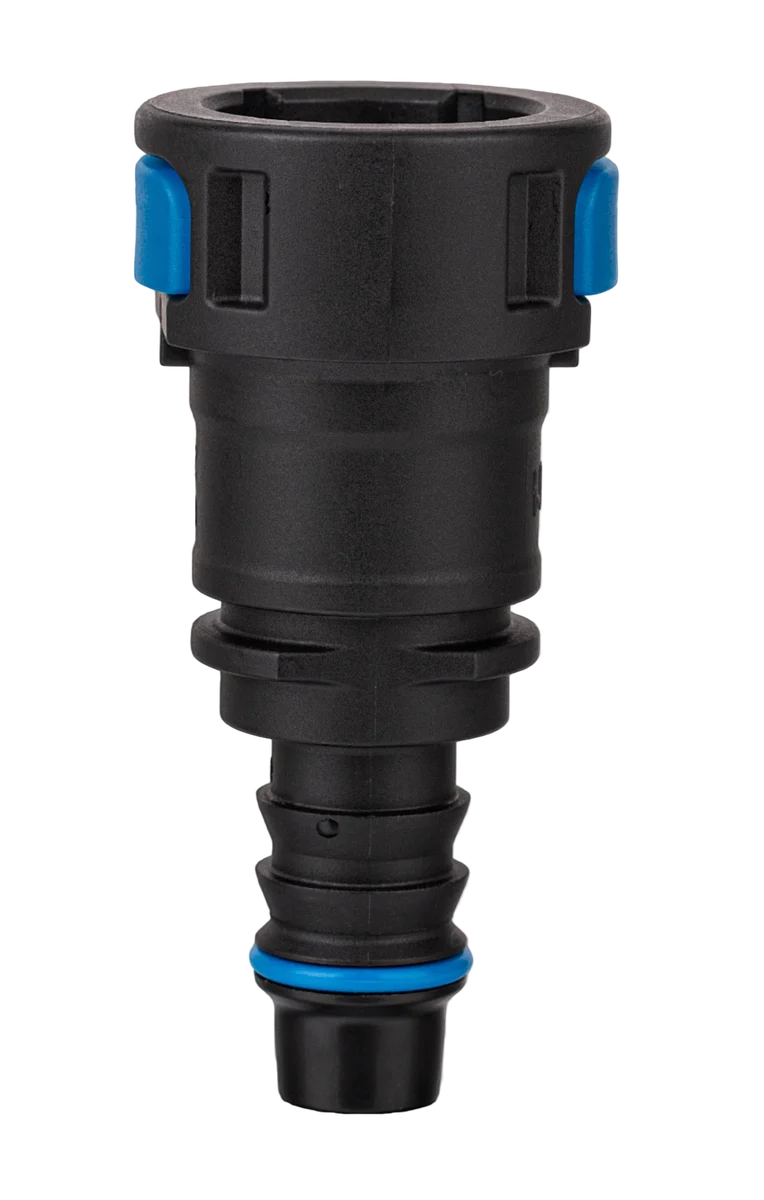

SAE Quick coupling
·
FW1

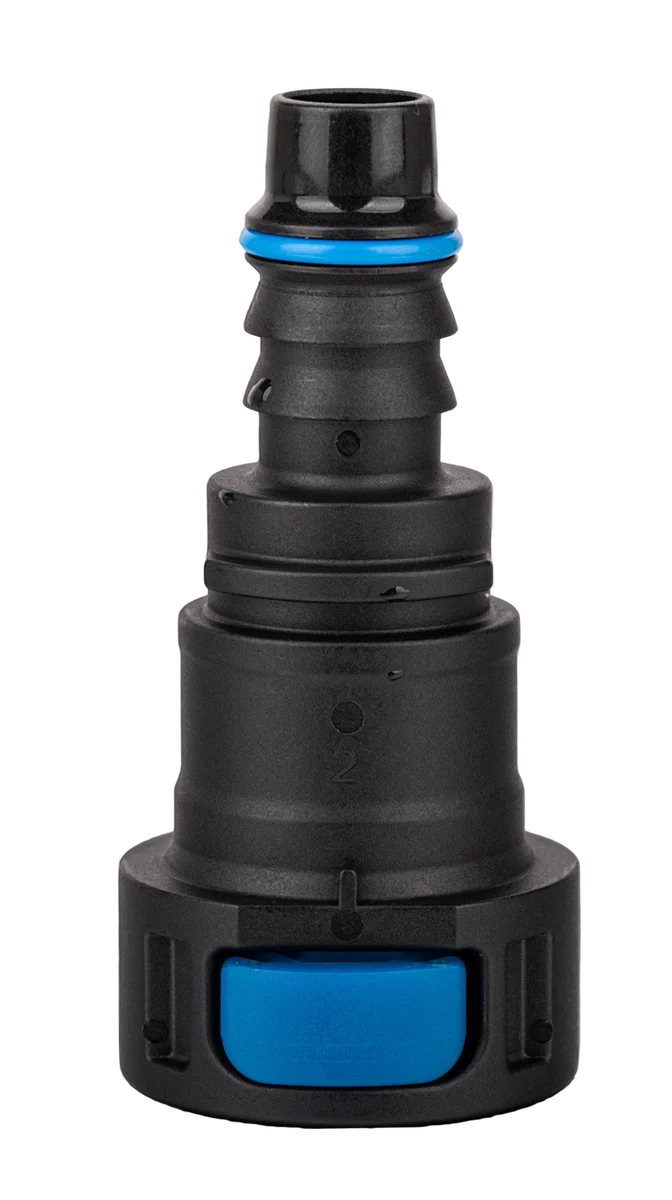

SAE 12.61 - 0° - Ø12.5X1.25mm - COOLANT
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length60.1 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 12.61 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø12.61 mm
Outer Ø28.4 mm
StandardSAE
Fitting dim.12.61 mm
Min.12.6 mm
Max.12.62 mm
Male 2/2
Fir-tree
Inner Ø8.1 mm
Outer Ø12.9 mm
Fitting materialPlastic pipe
Fitting dim.10 mm
Tube min.9.7 mm
Tube max.10.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
