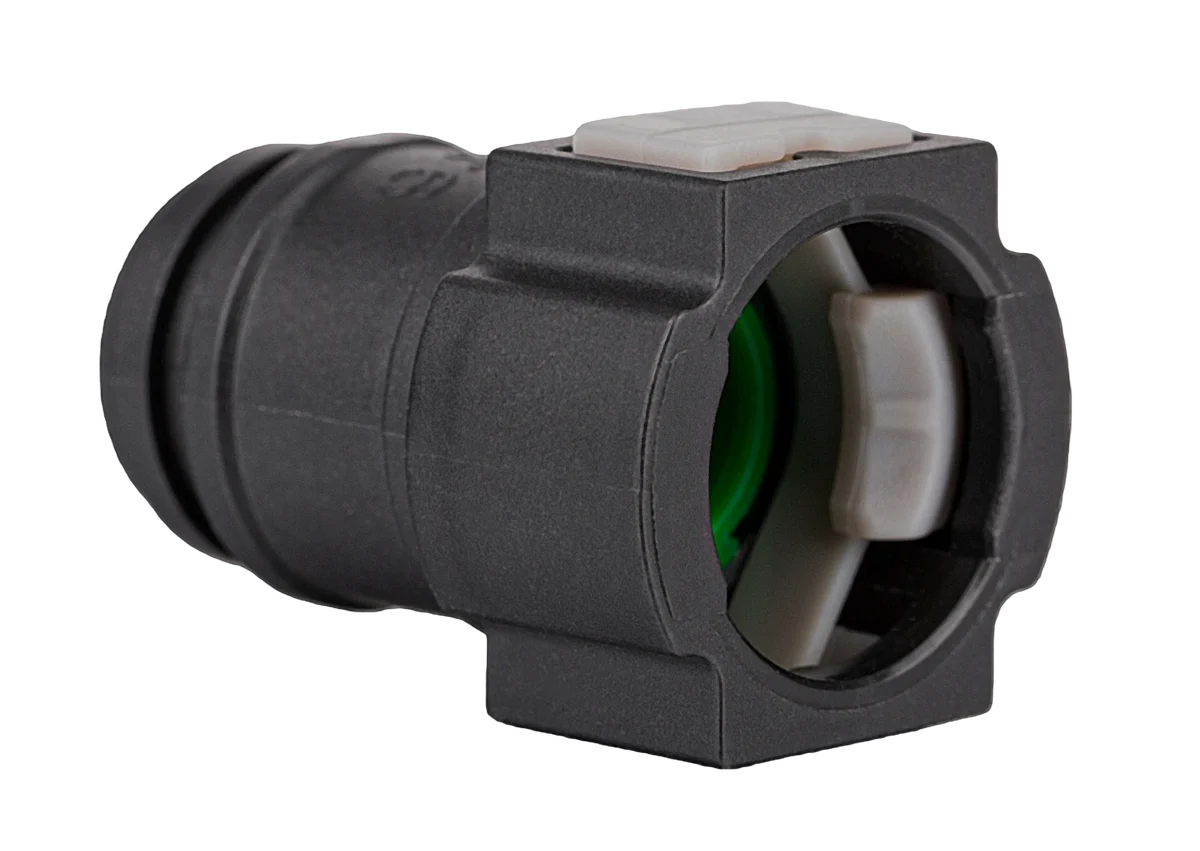

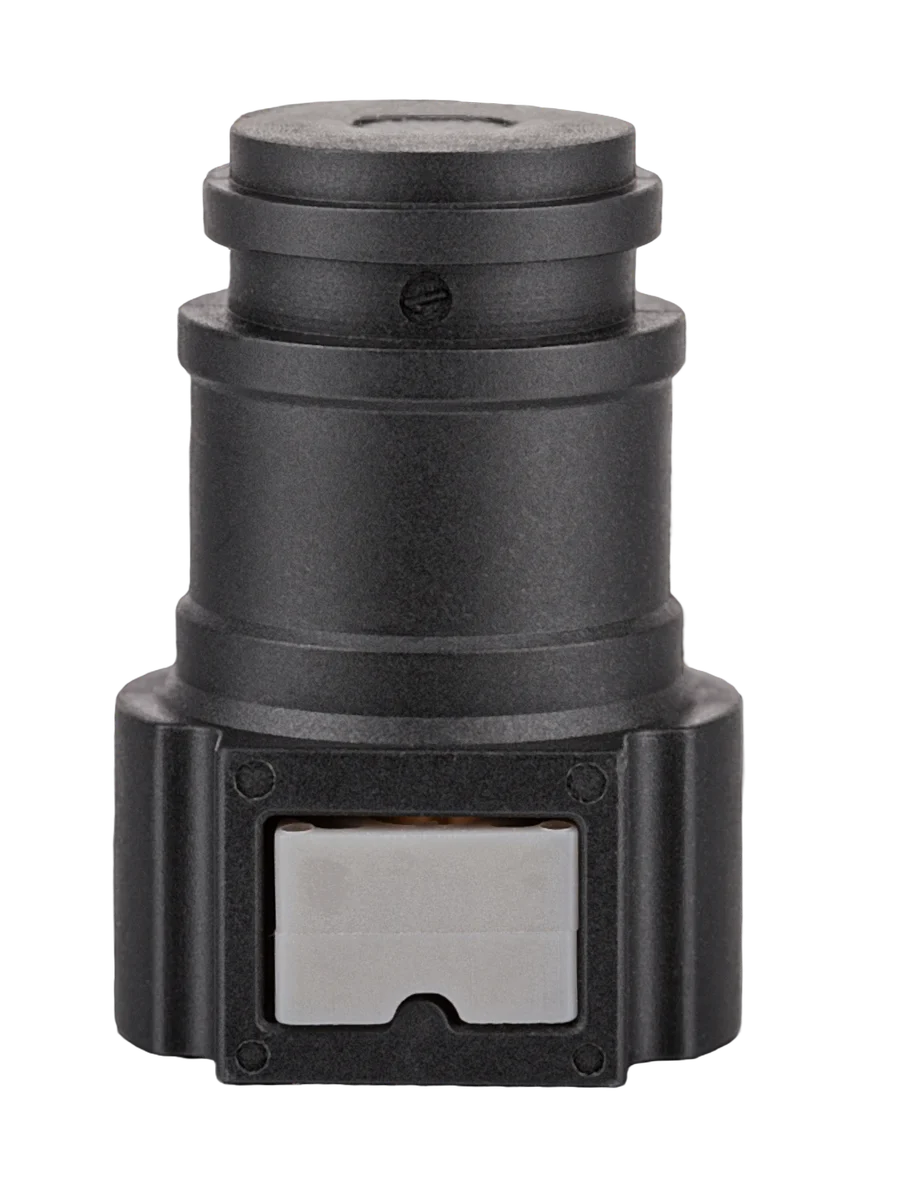

SAE 9.89 - CAP
SAE Quick coupling · ED1

SAE 9.89 - CAP

— Specifications

Working temp.-30 / 120 °C
Pressure5–7 bar
Total length33.8 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.89 Quick Connectors

ask our engineers back to catalogue

— Interfaces · 1

Female  1/1 Quick Coupling Connector
Inner Ø9.89 mm
Outer Ø27.5 mm
StandardSAE
Fitting dim.9.89 mm
Min.9.83 mm
Max.9.95 mm

— Solutions · Applications

Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
