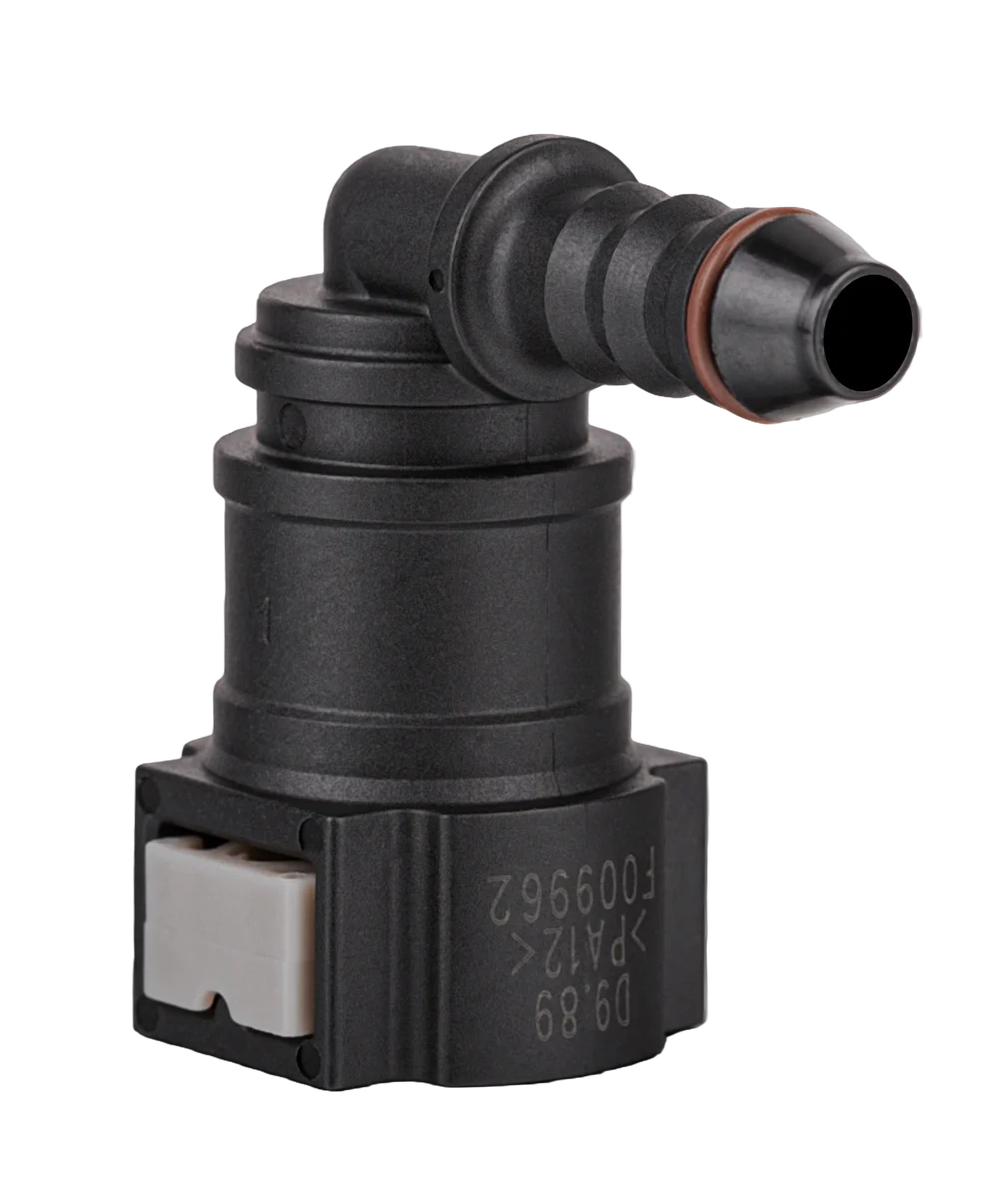

SAE Quick coupling
·
E6

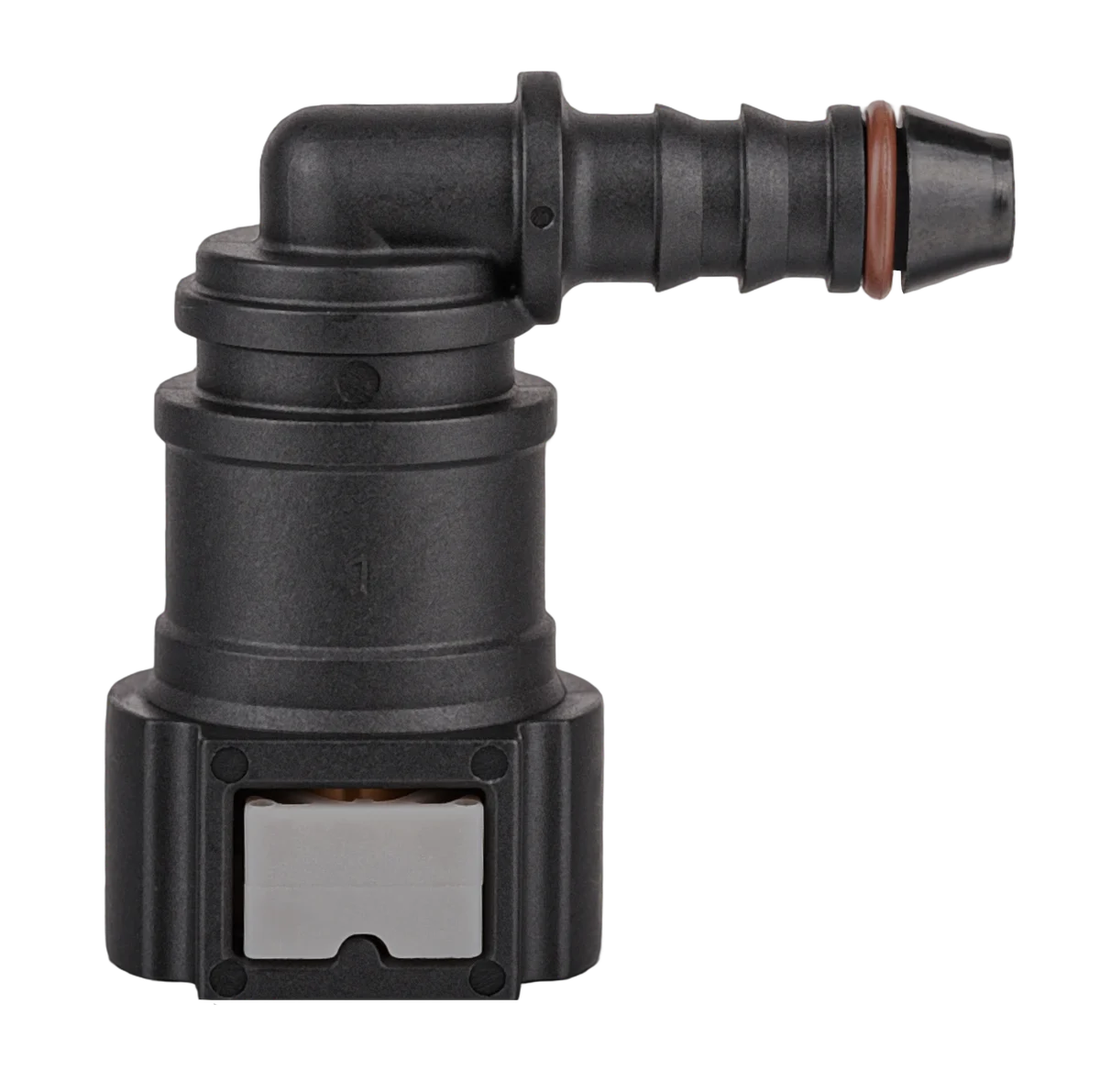

SAE 9.89 - 90° - Ø8X1mm - FUEL(LIQUID)
— Specifications
GeometryElbow 90°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length40 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.89 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø9.89 mm
Outer Ø27.5 mm
StandardSAE
Fitting dim.9.89 mm
Min.9.83 mm
Max.9.95 mm
Male 2/2
Fir-tree
Inner Ø4.85 mm
Outer Ø8.99 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.7 mm
Tube max.6.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
