Adapter
·
E52

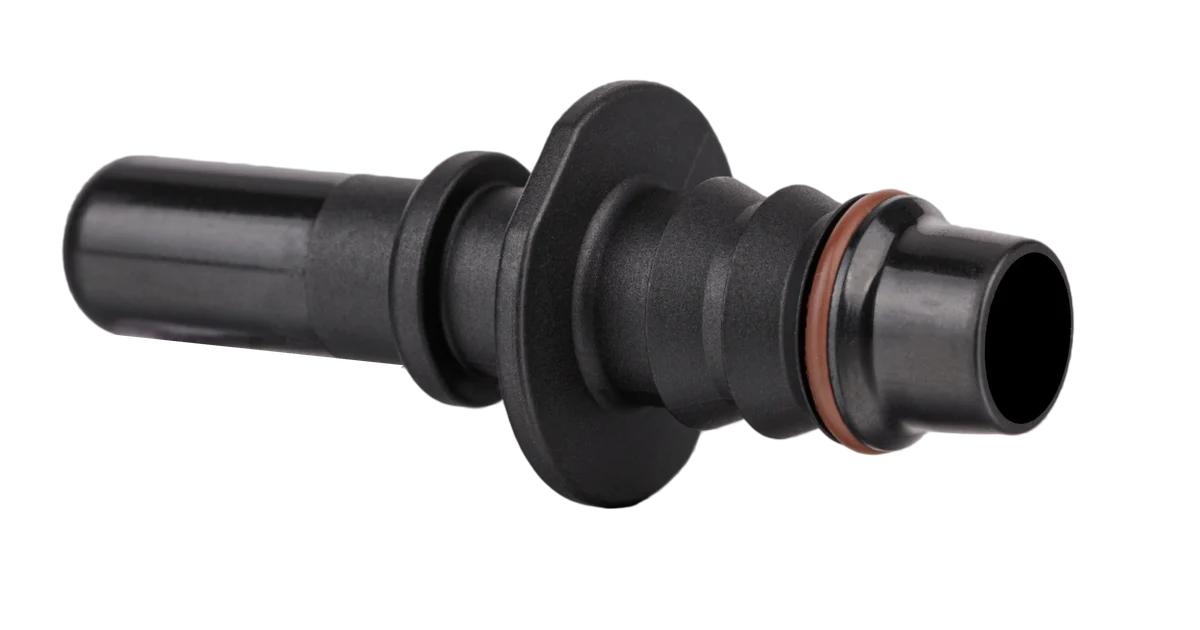

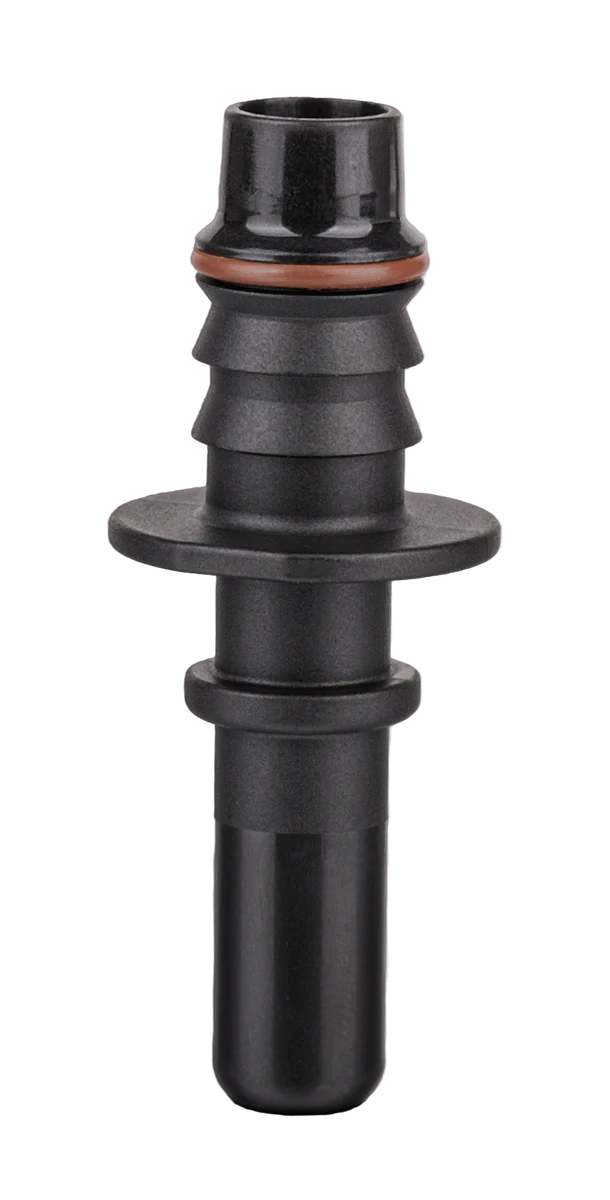

ADAPTER SAE 9.89 - 0° - Ø12X1mm - FUEL (LIQUID)
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length56.5 mm
StandardSAE
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
SAE
Inner Ø6.5 mm
Outer Ø9.89 mm
StandardSAE9.89
Fitting dim.9.89 mm
Male 2/2
Fir-tree
Inner Ø8.3 mm
Outer Ø12.9 mm
Fitting materialPlastic pipe
Fitting dim.10 mm
Tube min.9.8 mm
Tube max.10.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
