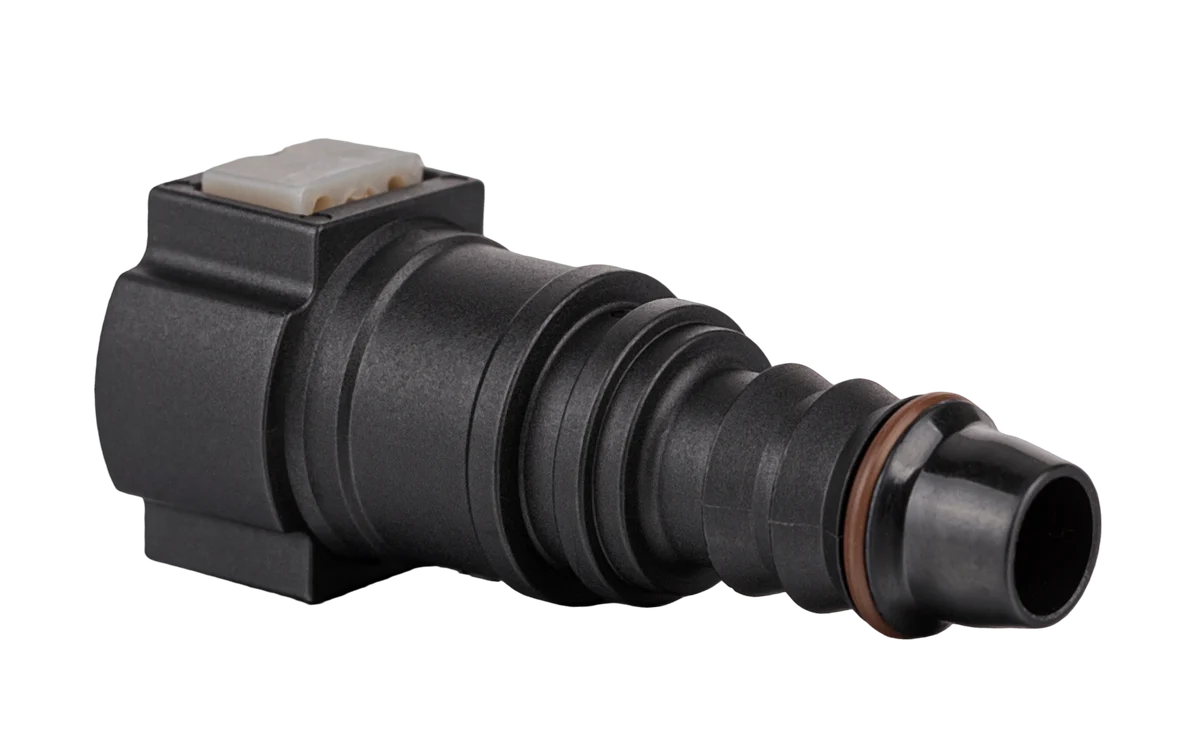

SAE Quick coupling
·
E3

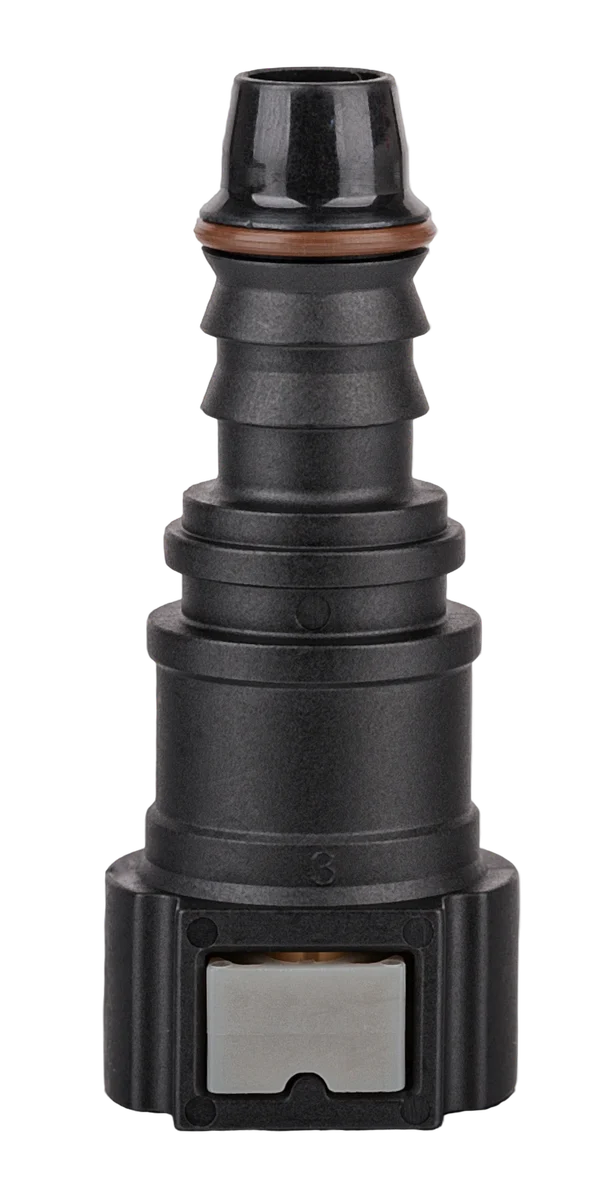

SAE 9.89 - 0° - Ø12.5X1.25mm - FUEL (LIQUID)
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length57 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.89 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø9.89 mm
Outer Ø27.5 mm
StandardSAE
Fitting dim.9.89 mm
Min.9.83 mm
Max.9.95 mm
Male 2/2
Fir-tree
Inner Ø7.5 mm
Outer Ø12.98 mm
Fitting materialPlastic pipe
Fitting dim.10 mm
Tube min.9.7 mm
Tube max.10.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
