SAE Quick coupling
·
DW3

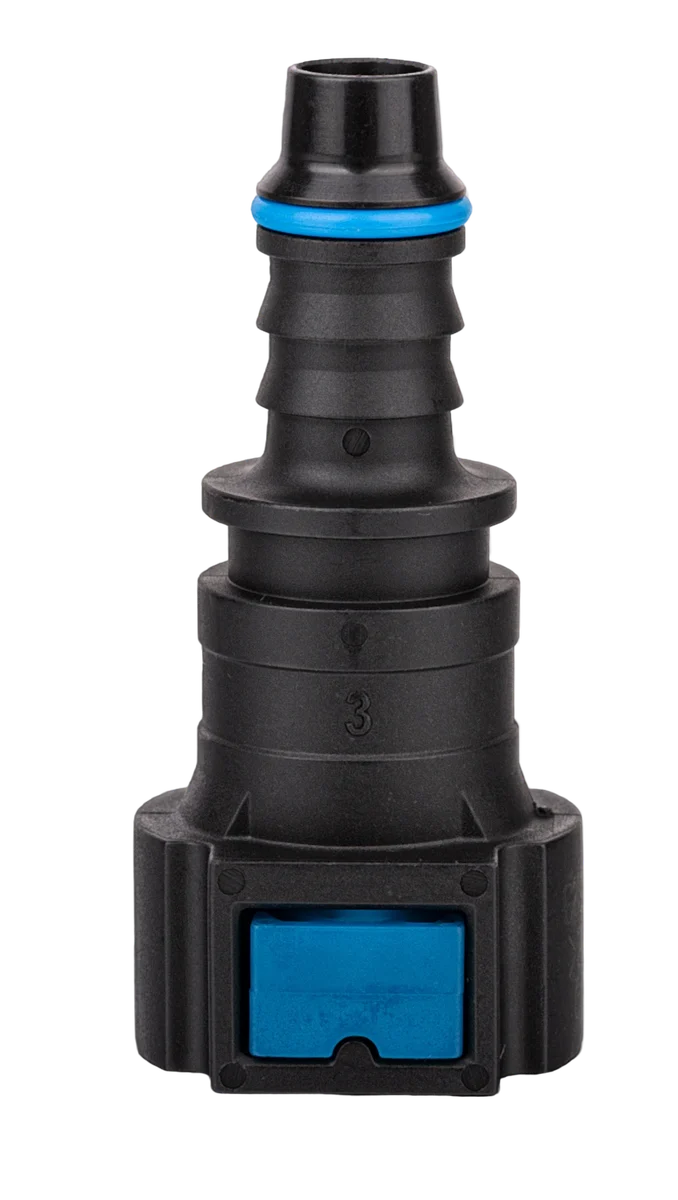

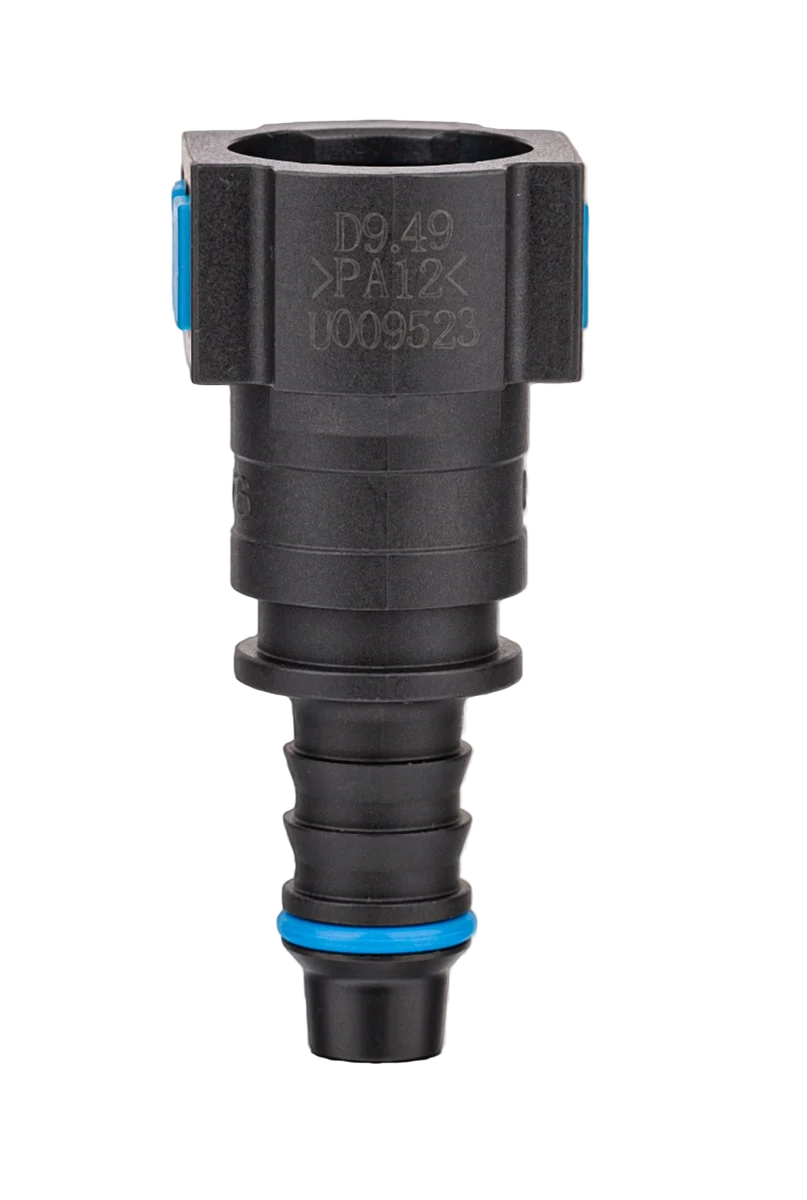

SAE 9.49-3/8" - 0° - Ø10X1mm - COOLING
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure0.5–2 bar
Total length52 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.49 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø9.49 mm
Outer Ø26.5 mm
StandardSAE
Fitting dim.9.49 mm
Min.9.43 mm
Max.9.55 mm
Male 2/2
Fir-tree
Inner Ø6.5 mm
Outer Ø10.9 mm
Fitting materialPlastic pipe
Fitting dim.8 mm
Tube min.8.5 mm
Tube max.8.3 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
