SAE Quick coupling
·
D6

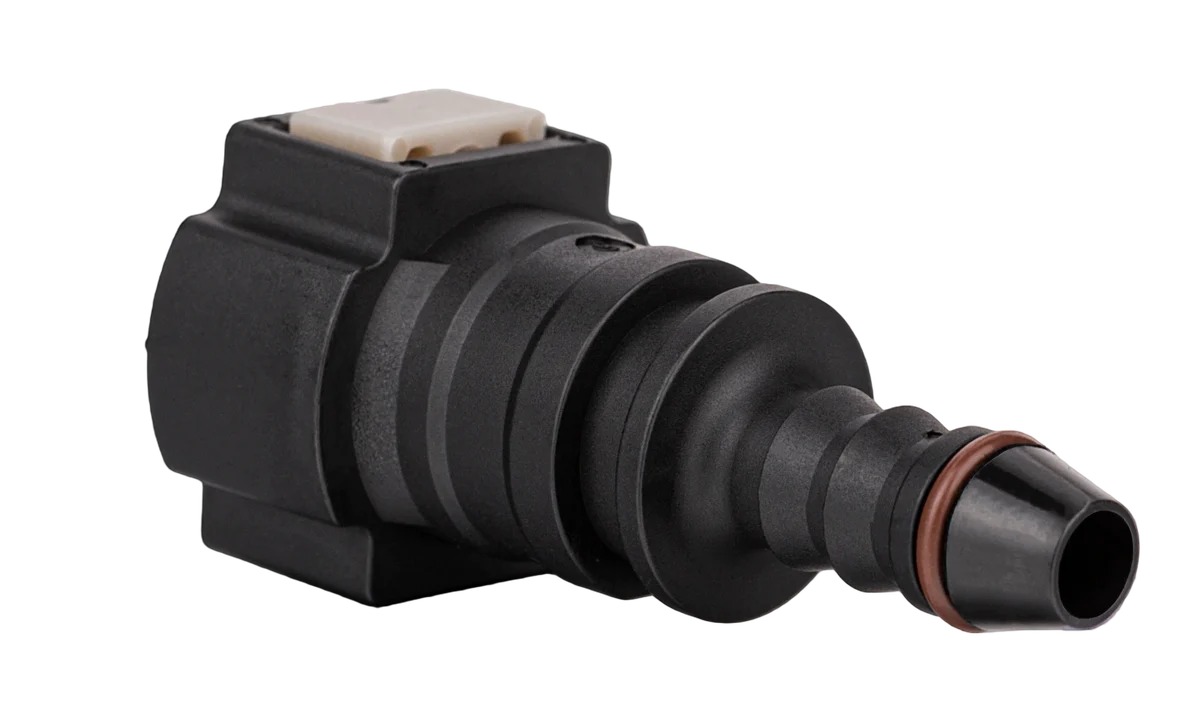

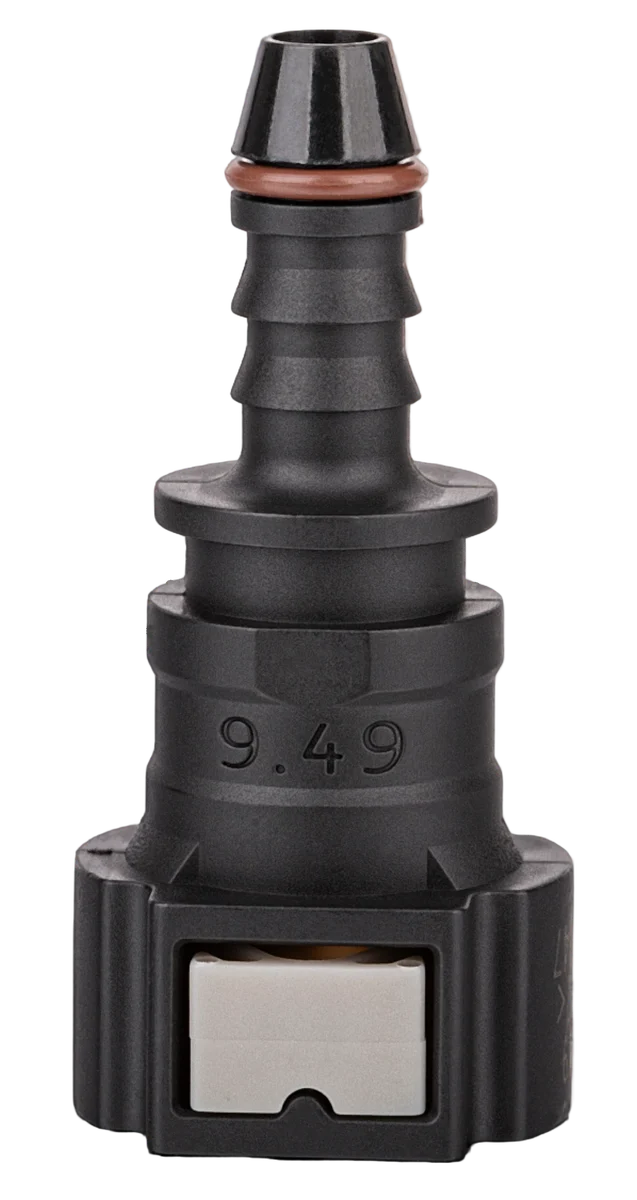

SAE 9.49-3/8" - 0° - Ø8x1mm - FUEL (LIQUID)
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length51.5 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.49 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø9.49 mm
Outer Ø26.5 mm
StandardSAE
Fitting dim.9.49 mm
Min.9.43 mm
Max.9.55 mm
Male 2/2
Fir-tree
Inner Ø5.1 mm
Outer Ø8.9 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.7 mm
Tube max.6.3 mm
