Adapter
·
D51

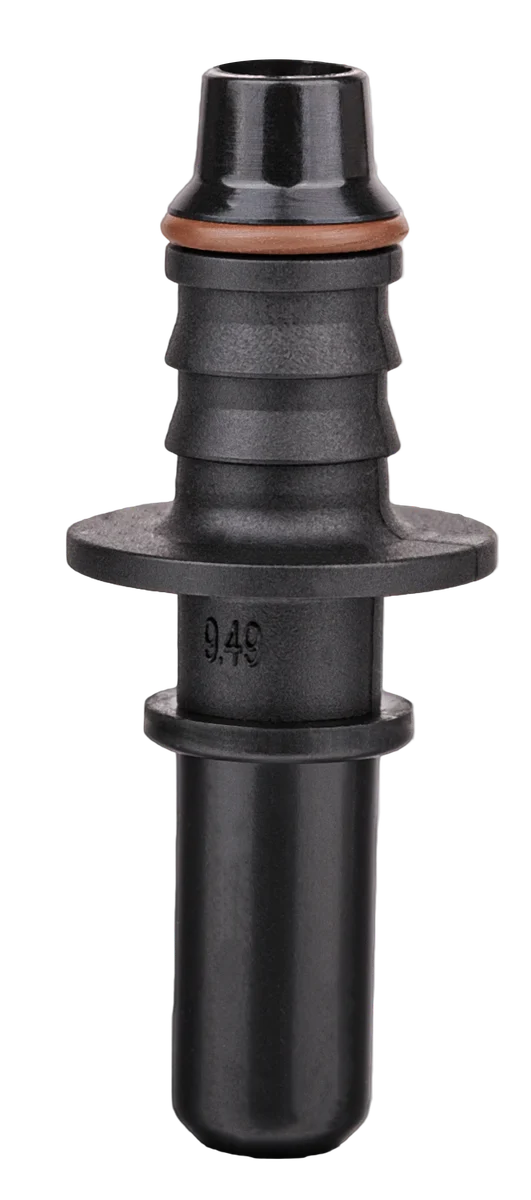

ADAPTER SAE 9.49-3/8" - 0° - Ø10X1mm - FUEL (LIQUID)
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length51.4 mm
StandardSAE
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
SAE
Inner Ø6.3 mm
Outer Ø9.49 mm
StandardSAE9.49
Fitting dim.9.49 mm
Male 2/2
Fir-tree
Inner Ø6.3 mm
Outer Ø10.9 mm
Fitting materialPlastic pipe
Fitting dim.8 mm
Tube min.7.8 mm
Tube max.8.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
