SAE Quick coupling
·
D5

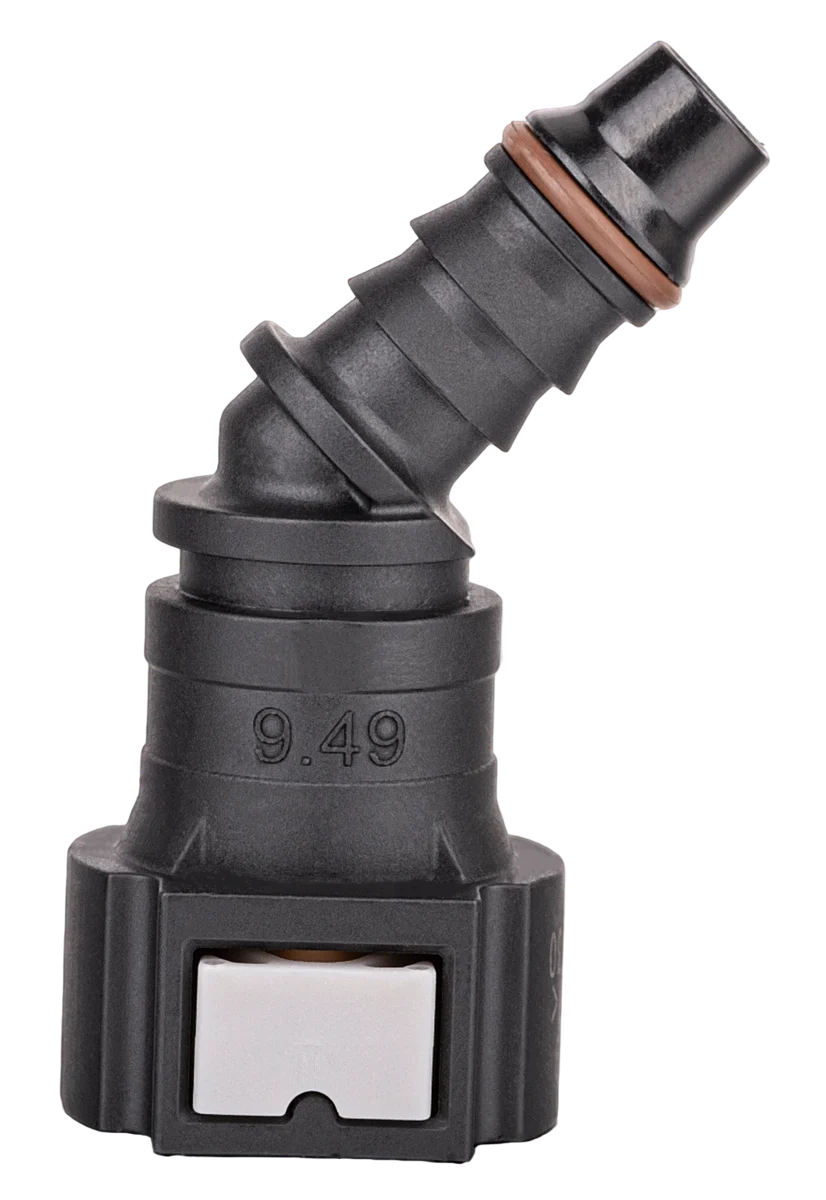

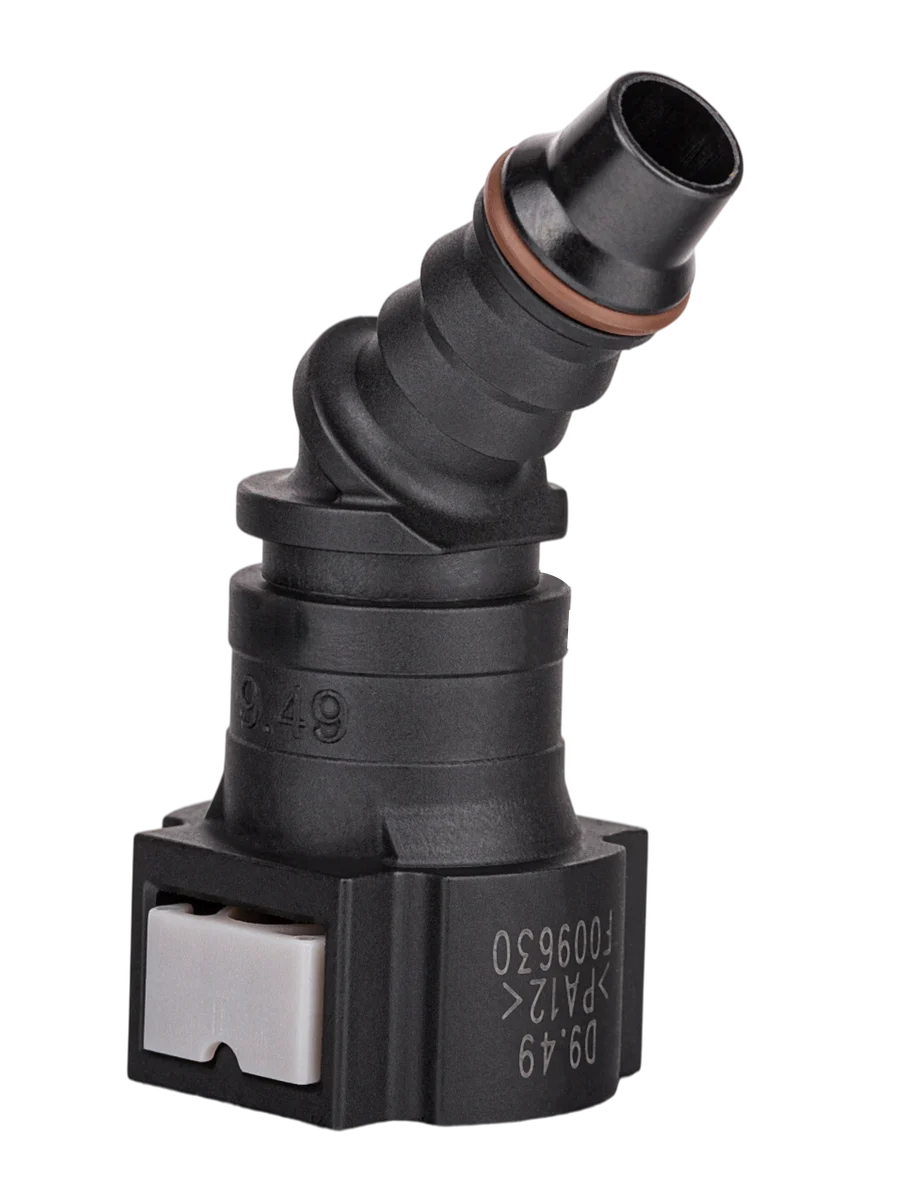

SAE 9.49-3/8" - 45° - Ø10X1mm - FUEL (LIQUID)
— Specifications
GeometryElbow 45°
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length31.28 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.49 Quick Connectors
— Interfaces · 2
Female 1/2
Quick Coupling Connector
Inner Ø9.49 mm
Outer Ø26.5 mm
StandardSAE
Fitting dim.9.49 mm
Min.9.46 mm
Max.9.55 mm
Male 2/2
Fir-tree
Inner Ø6.5 mm
Outer Ø11.05 mm
Fitting materialPlastic pipe
Fitting dim.8 mm
Tube min.7.7 mm
Tube max.8.3 mm
