SAE Quick coupling
·
D31

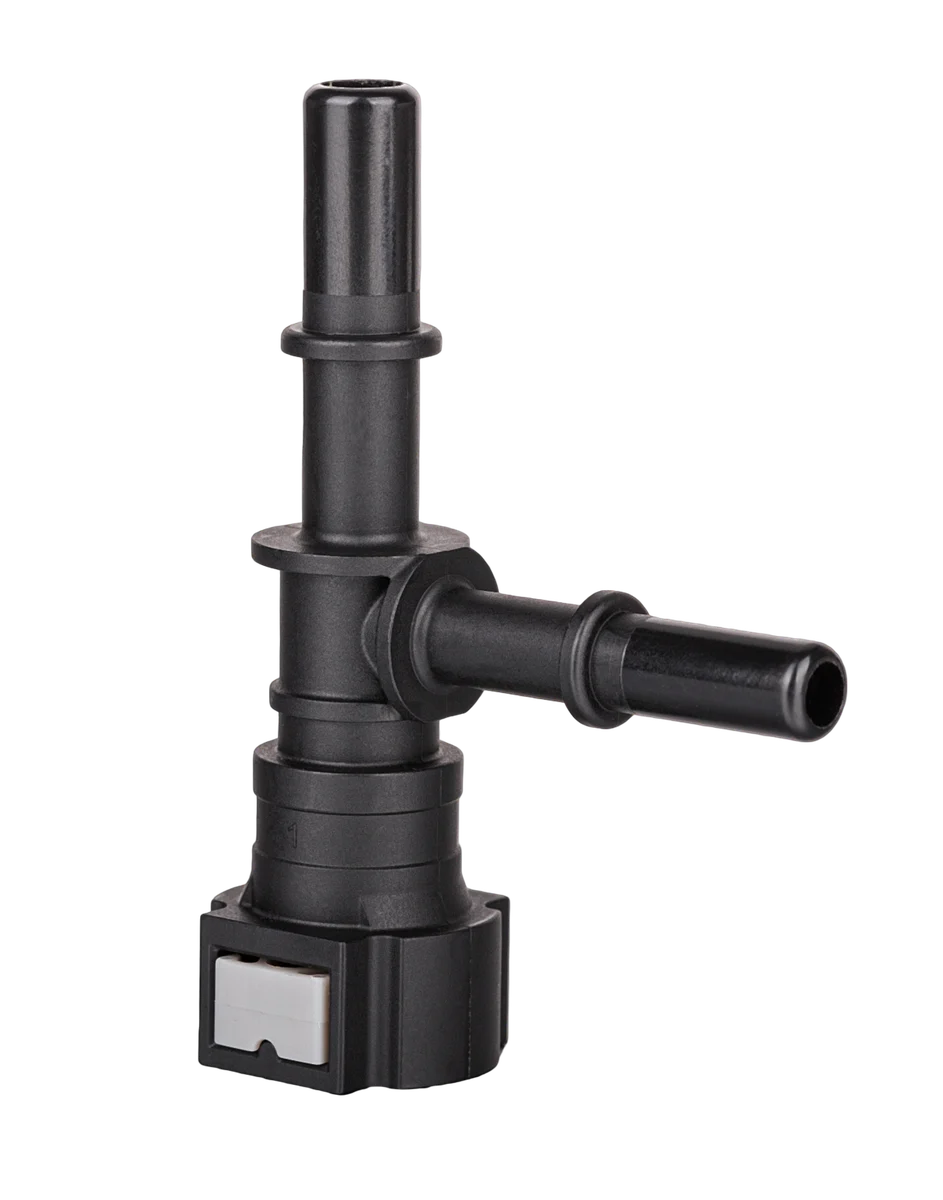

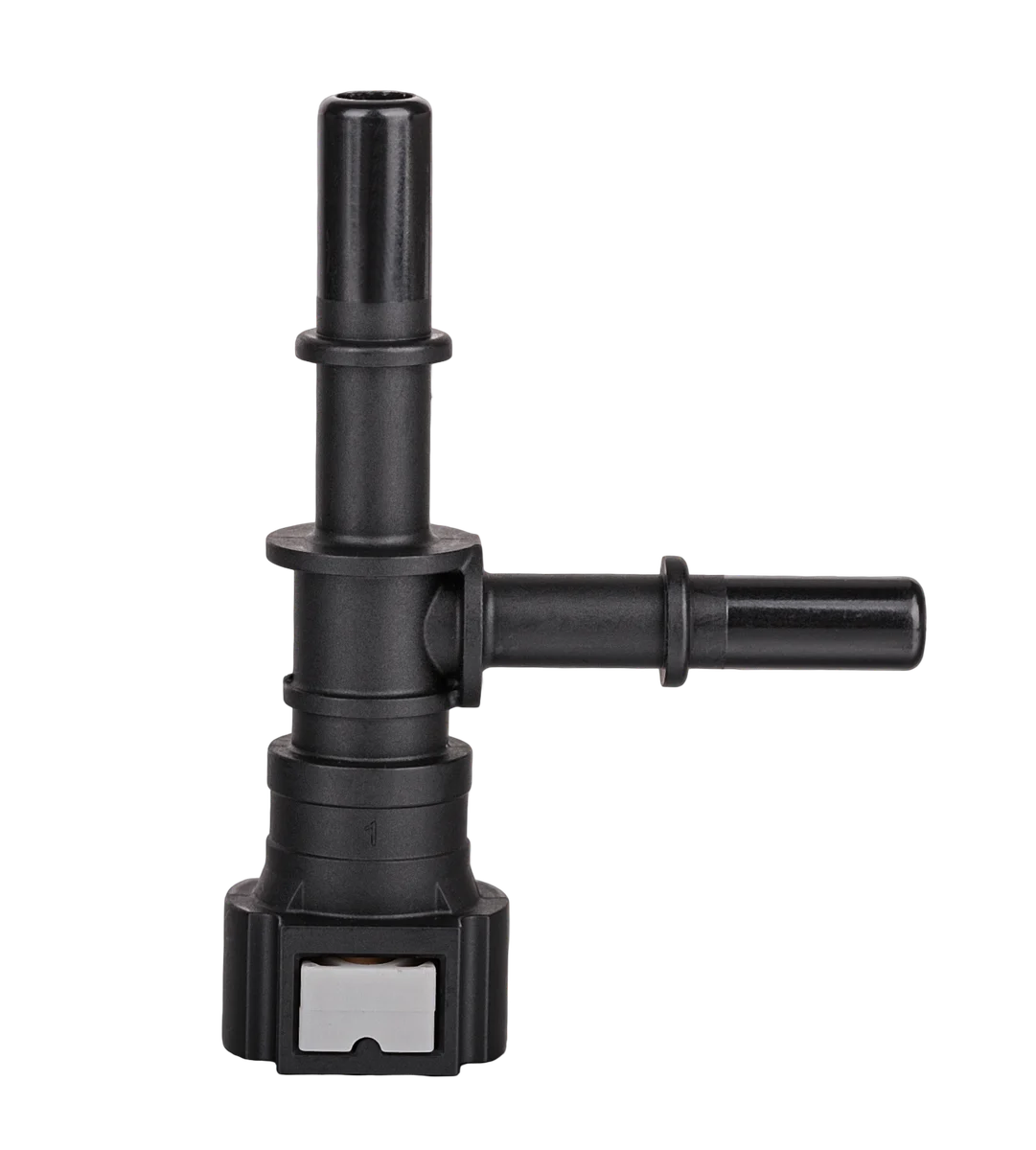

SAE 9.49-3/8" - 3 WAY - MALE SAE 9.49 - MALE SAE 7.89 - FUEL
— Specifications
Geometry3 WAY T Shape
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length79 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 9.49 Quick Connectors
— Interfaces · 3
Female 1/3
Quick Coupling Connector
Inner Ø9.49 mm
Outer Ø26.5 mm
StandardSAE
Fitting dim.9.49 mm
Min.9.43 mm
Max.9.55 mm
Male 2/3
SAE
Inner Ø6.38 mm
Outer Ø9.49 mm
Fitting materialSAE
Male 3/3
SAE
Inner Ø5 mm
Outer Ø7.89 mm
Fitting materialSAE
